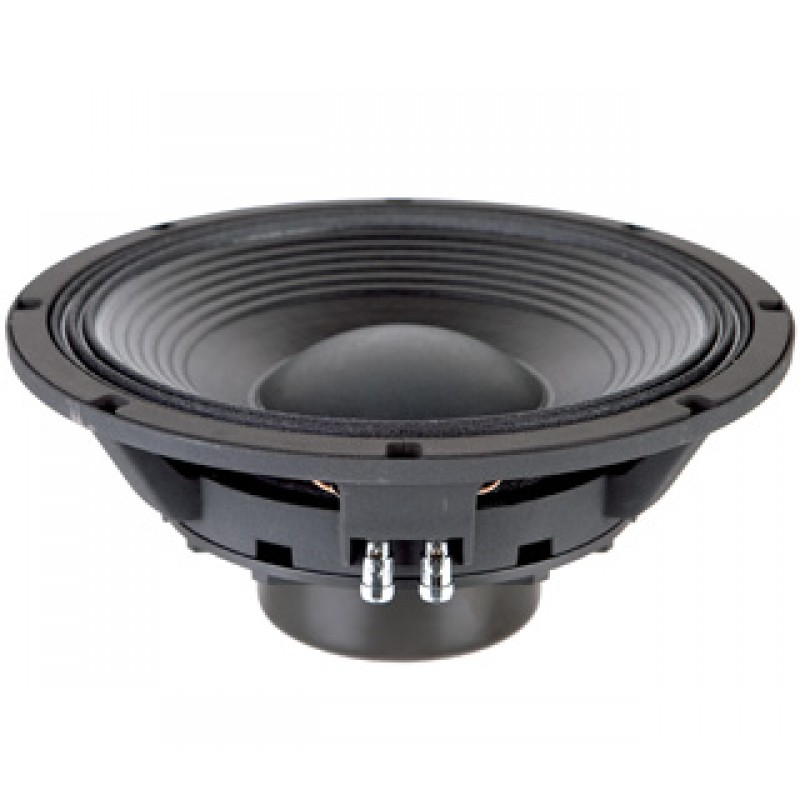

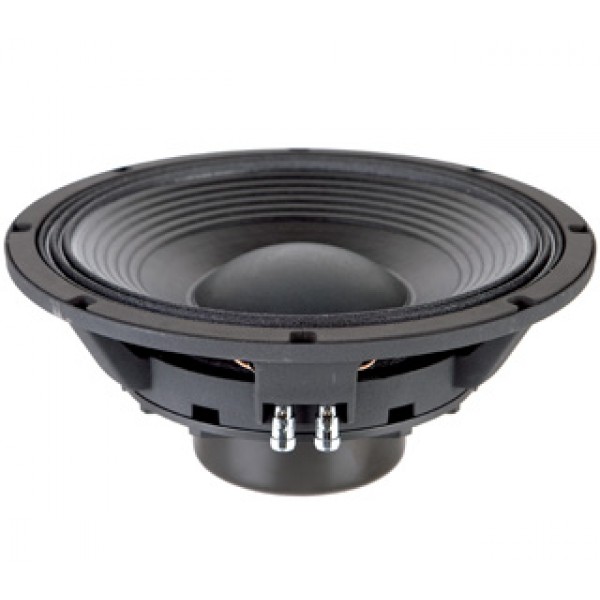

12P1000/ND BEYMA 12" LUIDSPREKER 900W AES @8 OHM

Omschrijving

12P1000ND: P1000/ND Series

Features:

• Real  900 W AES power handling.
• Sensitivity: 96 dB @ 2.83V.
• 4” duo technology voice coil.
• Forced air convection circuit for low power compression.
• Extended controlled displacement: Xmax ± 8 mm.
• Massive mechanical displacement capability: 52 mm p-p.

Specifications:

• Nominal diameter: 300 mm 12 in
• Nominal impedance: 8 ohm
• Minimum impedance: 6.5 ohm
• Power capacity: 900 W AES
• Program power: 1800 W
• Sensitivity 96 dB 1 W @ 1 m @ 2Π
• Frequency range: 30-2500 Hz
• Recommended enclosure volume: 20 / 60 l 0.7 / 2.24 ft³
• Voice coil diameter: 100 mm 4 in
• BL factor: 25.3 N / A
• Moving mass: 0.100 kg
• Winding length: 21 mm
• Air gap height: 12 mm
• Xdamage pp: 52 mm

Downloads:

• User Manual
