15LX60V2

Omschrijving

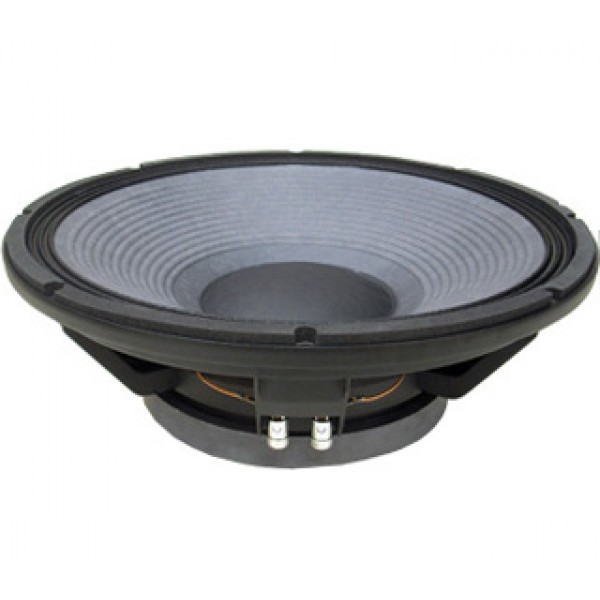

15LX60V2 LOW FREQUENCY TRANSDUCER:  LX60 Series

Features:

• High power handling: 700 WAES
• High sensitivity: 98 dB
• FEA optimized magnetic circuit
• Designed with MMSS technology for high control, linearity and low harmonic distortion.
• CONEX spider for higher resistance and consistency
• Waterproof treatment for both sides of the cone
• 4” DUO double layer inner/outer voice coil
• Extended controlled displacement: Xmax ± 9 mm
• Massive mechanical displacement capability: Xdamage ± 47 mm

Specifications:

• Nominal diameter: 380 mm 15 in
• Nominal impedance: 8 ohm
• Minimum impedance: 7.2 ohm
• Power capacity: 700 W AES
• Program power: 1400 W
• Sensitivity: 98 dB 1 W @ 1 m
• Frequency range: 30-1500 Hz
• Recommended enclosure volume: 60 / 150 l 2.12 / 5.3 ft³
• Voice coil diameter: 100 mm 4 in
• BL factor: 21.1 N / A
• Moving mass: 0.147 kg
• Winding length: 20 mm
• Air gap height : 10 mm
• Xdamage pp: 58 mm
