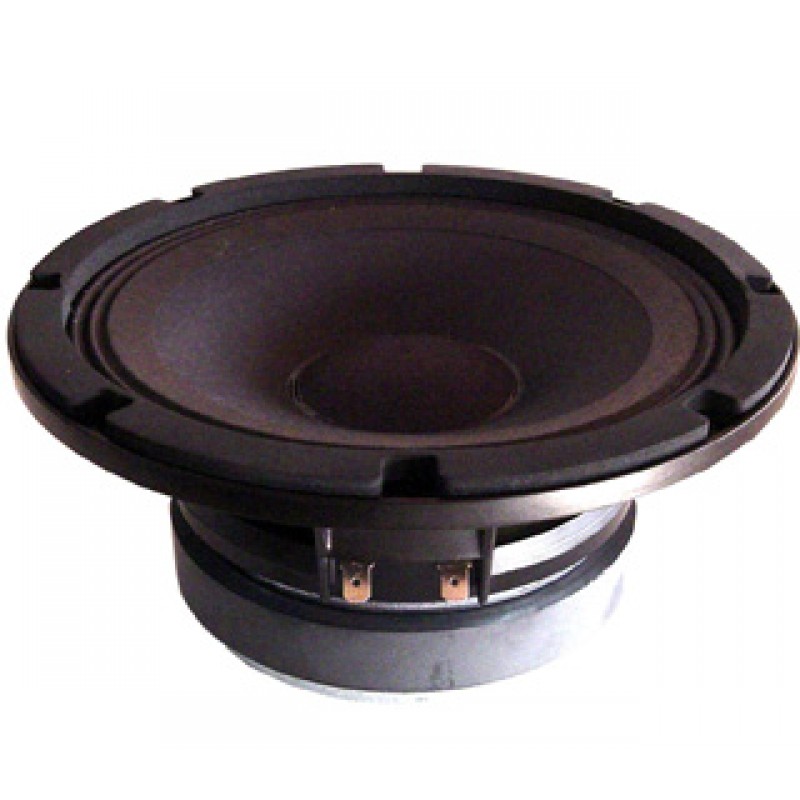

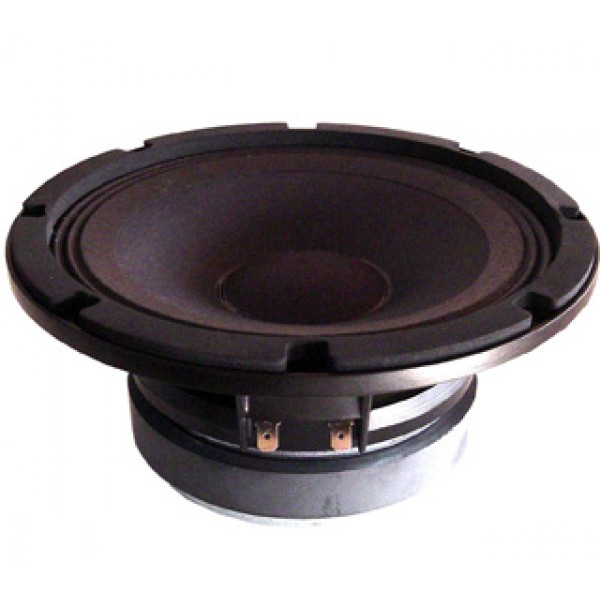

8MI100 BEYMA LUIDSPREKER 250W AES @8OHM

Omschrijving

8MI100 : MI100 SERIES
This low-mid frequency transducer offers three main points of interest: a good sensitivity (98 dB), a controlled dispersion up to 3 kHz and a low harmonic distortion. These characteristics make it suitable for high quality sound reinforcement systems, especially for live applications.

Features:

• High power handling (250 w AES)
• Low harmonic distortion
• Controlled dispersion up to 3 kHz
• 2” edgewound aluminium voice coil with polyimide fiber glass former
• Designed for high quality mid-frequency reproduction

Specifications:

• Nominal diameter: 200 mm 8 in
• Nominal impedance: 8 ohm
• Minimum impedance: 6.9 ohm
• Power capacity: 250 W AES
• Program power: 500 W
• Sensitivity: 98 dB 1 W @ 1 m @ 2Π
• Frequency range: 150-7000 Hz
• Voice coil diameter: 51.7 mm 2 in
• BL factor: 9.8 N /A
• Moving mass: 0.017 kg
• Winding length: 9 mm
• Air gap height: 7 mm

Downloads:

• User Manual
