AIRLITE-USB

Eight dual inputs
Built in auto Silence detector
4 USB in/out stereo channels
Play out USB control section included
AES 3 digital program output optional
Various GPIO options are software programmable
Windows / Mac compatible
Ideal for Production, Voice tracking and ON-AIR
CRM, Announcer and Phone outputs
Bi directional Cue communication buss
Built in VOIP functionality
Incoming phone calls visible on screen
Clean feed output for external Hybrid
Internal NON STOP switching

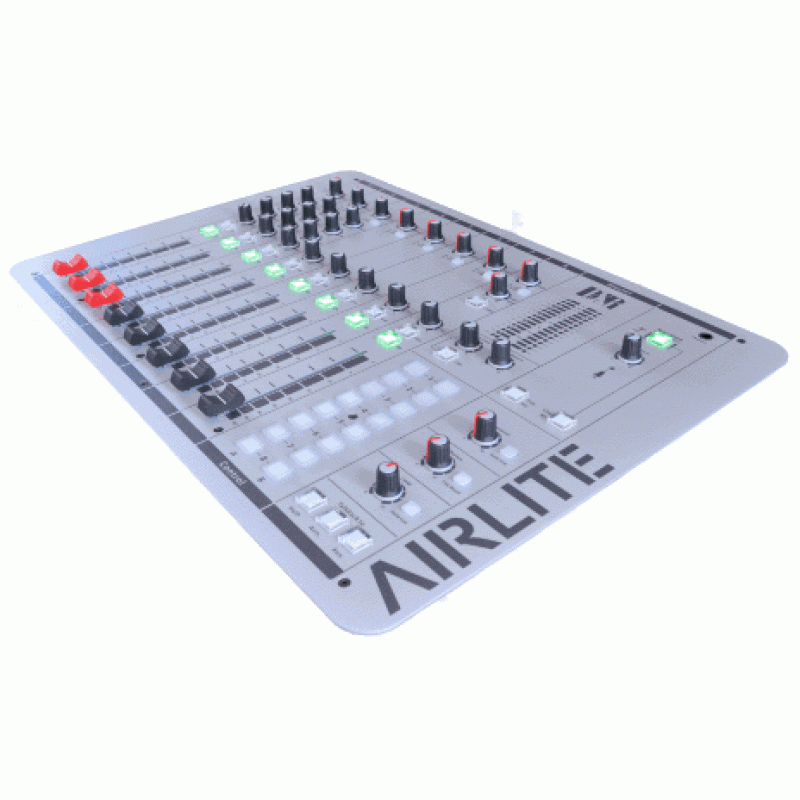

With the AIRLITE mixer you can now own a modern radio mixer for a very attractive price. This new hand built piece of precision equipment is the result of more than 42 years of experience at D&R. It is an intelligent mixer with an internal USB control section that speeds up daily use and includes a built in Silence Detector. It is a reliable workhorse for the self-op production D.J. with built in Telephone VOIP functionality.
4 in/out channels of stereo USB and 3 very low noise Mic inputs. The AIRLITE, ideal for ON-AIR, Production and perfect for streaming to the web. The AIRLITE accepts and instantly controls a maximum of 4 in/out stereo channels from your Play-out software. It is built into a metal, heavy duty RF shielded, powder coated chassis, designed with elegantly rounded corners. Easily “drops” into your furniture to give that exciting and contemporary radio look. A strong powder coated front panel with reliable controls gives you access to a flawless performance.

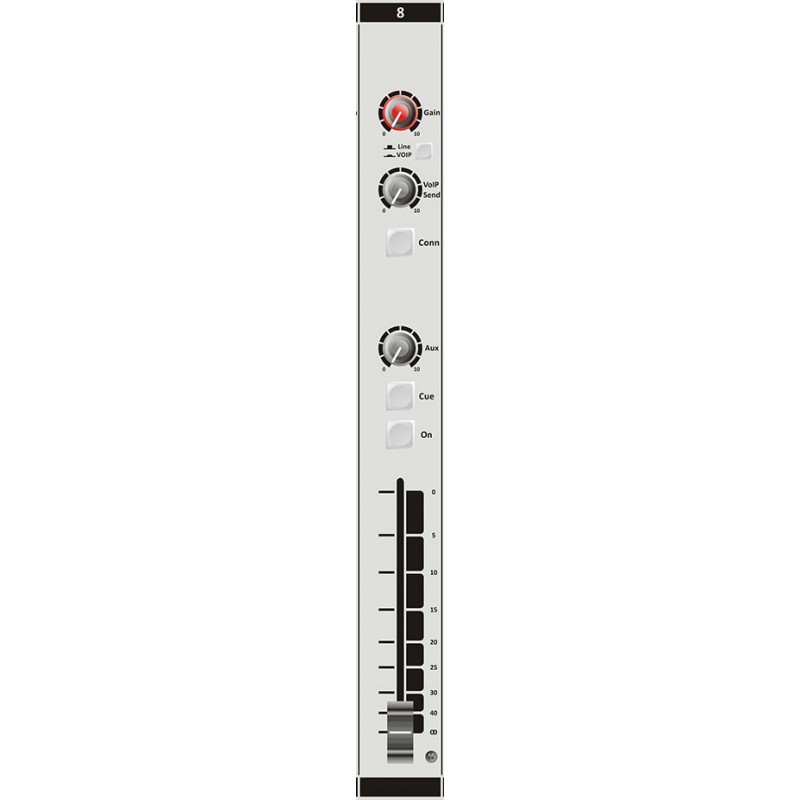

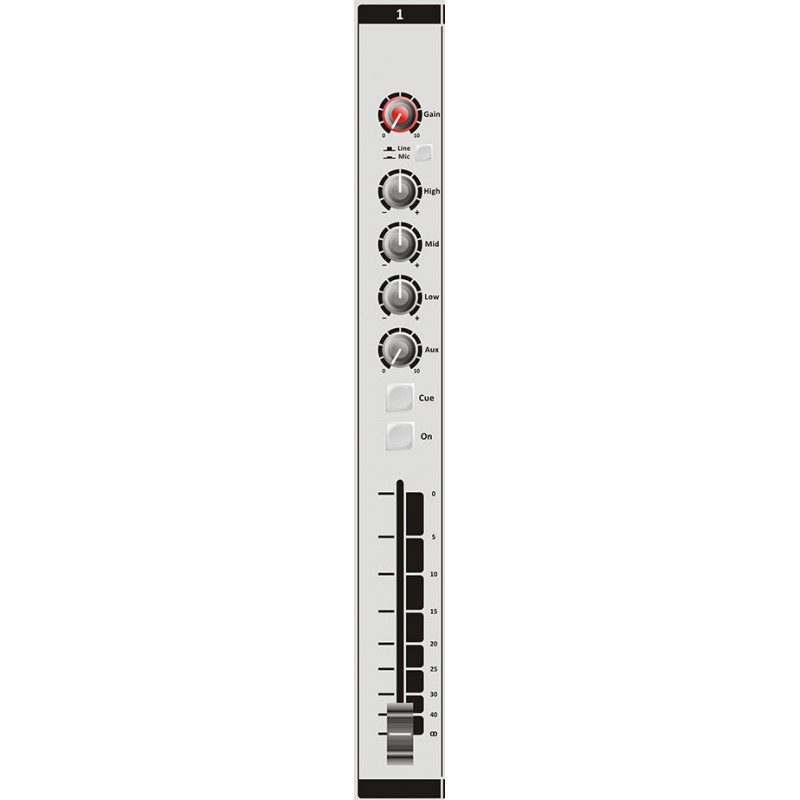

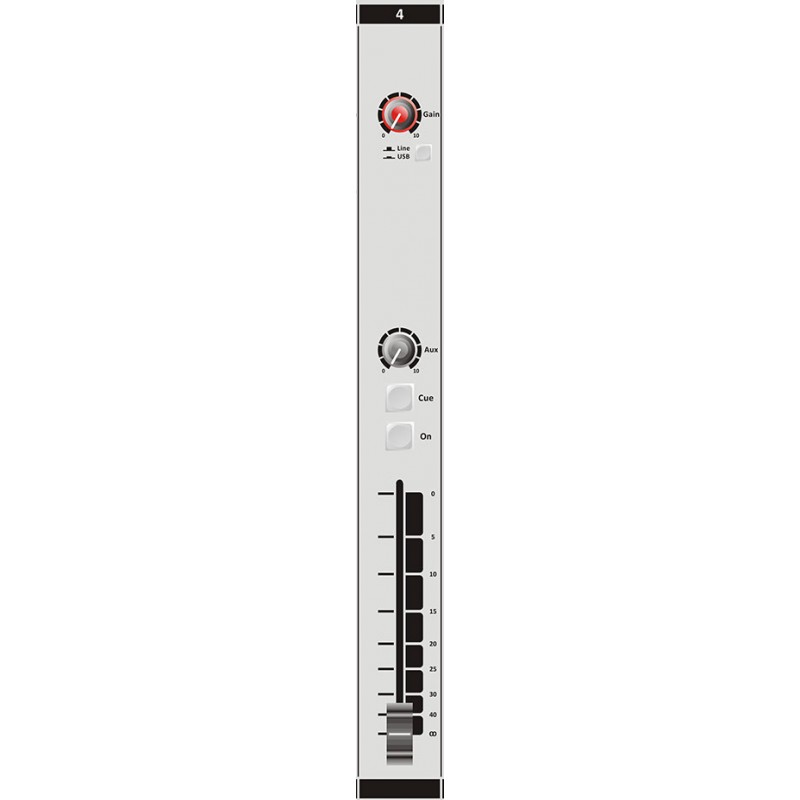

MIC, LINE, USB and INTERNAL VOIP

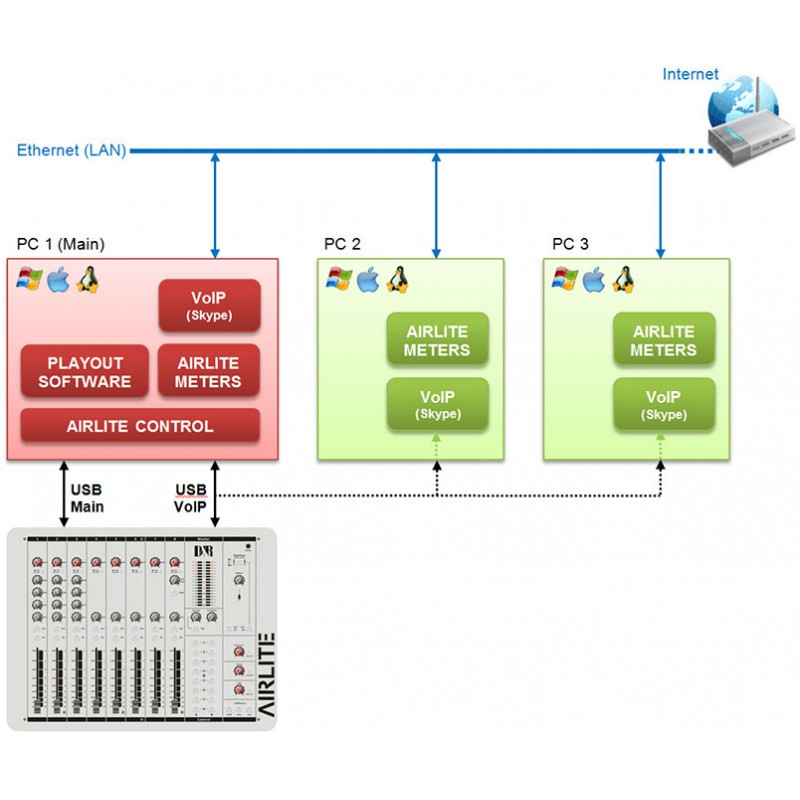

The AIRLITE mixer has 3 balanced, phantom powered mic inputs with inserts for voice processors. Eight stereo line inputs, 4x USB channels and 1x Telephone VOIP channel. If you want to connect to an analog phone line a Cleanfeed output is available for connection to an external Hybrid. Only one physical USB connection is the interface for transferring 4 stereo audio channels from and to your PC, plus control data from the control section and the meter application. The VOIP Channel 8 has its own USB connector to be able to have your calls coming from another PC. Connection to a second USB connector on your main PC is of course also possible. Dedicated Talk back to the VOIP channel makes conversation with callers very easy. The Cue bus is also a communication buss, so the announcer can easily have a discussion with the caller while ON-AIR. Just hit the two related CUE buttons and you’re talking. And... when a call comes in your attention is instantly drawn by a clear signal to be seen on the Meter screen. There is a very musical 3 band Equalizer on channel 1-3. The stereo Aux send can be selected pre or post fader. And all high quality low noise mic inputs have a high quality built in low cut filter.

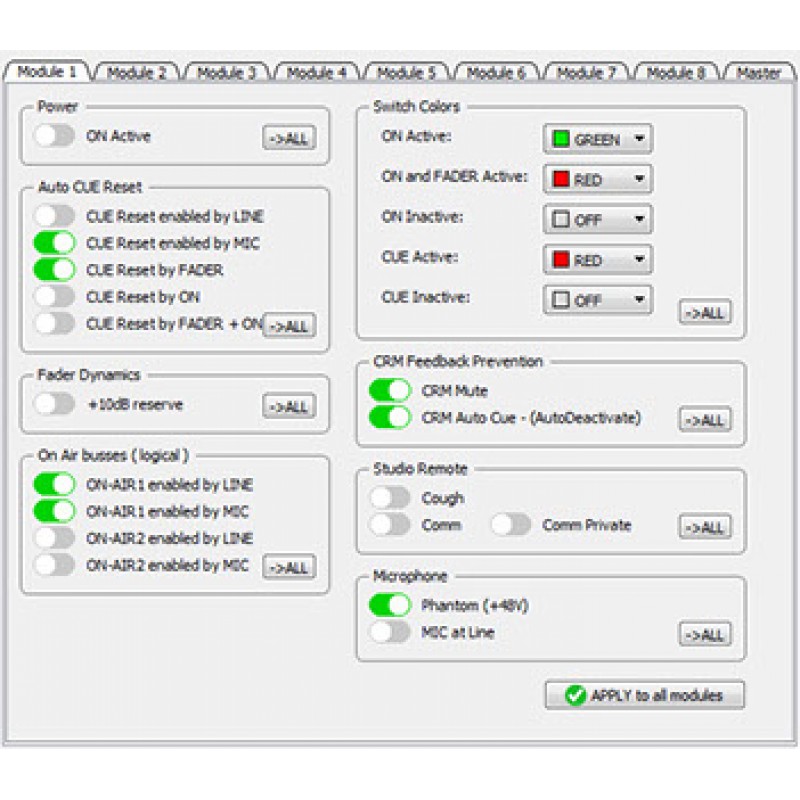

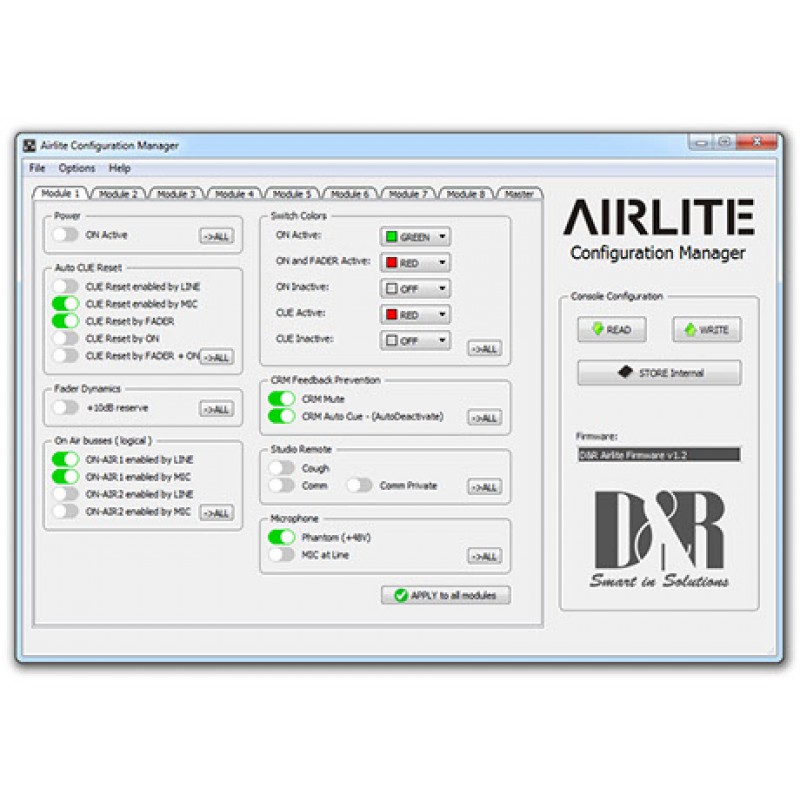

SMART MODULE PROGRAMMING

The AIRLITE modules can be easily tailored to your own needs as you can see on the software program pages below or in the manual. All 8 modules have their own page where you can program Cue reset enabled by line, Mic, Fader, On etc. You can even decide if you want 10dB fader gain or not. Both ON-AIR busses 1 and 2 can be enabled by Line or Mic. You can even program your own switch colours, activate the CRM mutes per module and program the Studio Remote and if you want your Phantom on or off individually, this is programmable per channel.

GPIO functions have the following states;

Continuously
Pulse by ON
Pulse by OFF
Pulse by ON/OFF

And... all settings can be stored(write) and loaded (read), see right hand part of the software page below or in the manual.

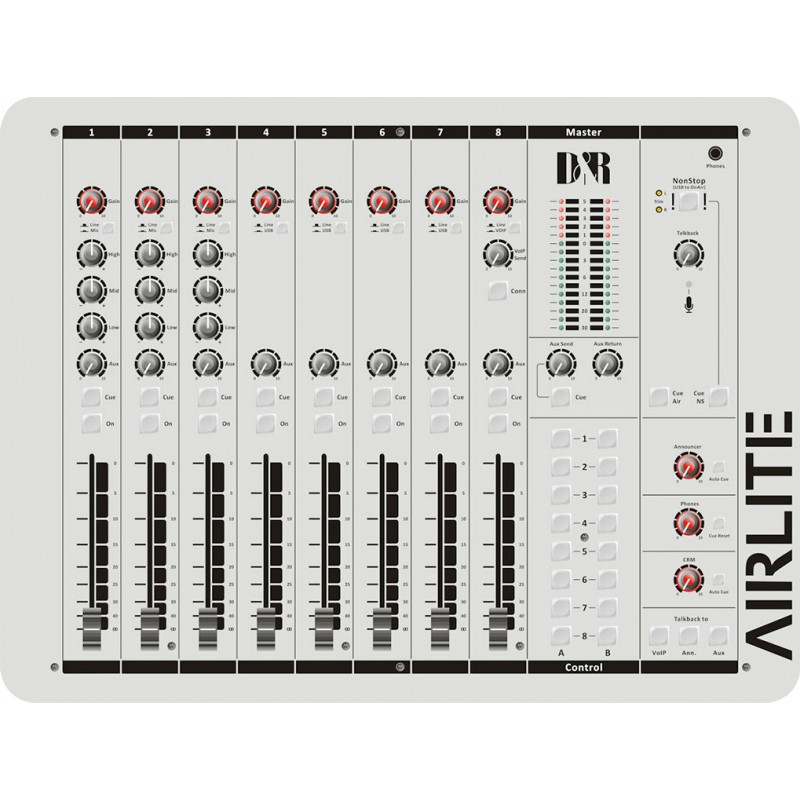

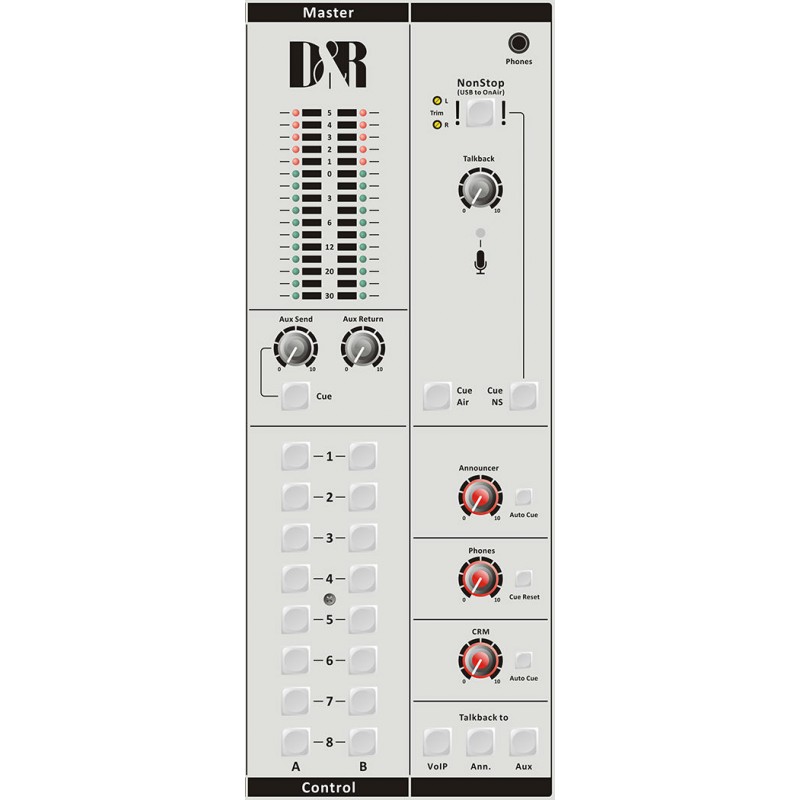

STRAIGHT FORWARD MASTER SECTION DESIGNED WITH RADIO IN MIND

The master section is designed for Radio. It houses all the master controls such as the stereo Aux send and return, Control Room Monitor (CRM), Announcer and a high level, low impedance, phones output.

Auto Cue provides both the Announcer and CRM outputs to follow the CUE selections. CUE reset cancels all activated Cue selections. Of course the Control Room Monitors are muted automatically to cut control room level when the D.J. Mic is active. A Studio output (announcer) that normally follows the main output can be routed by activating Auto Cue in a way so any Cue signal that is selected can be heard. Three Talk-back switches individually activate the built-in talkback microphone which has its own gain control for communication to VOIP, Announcer and Aux outputs. Talkback can also take place to all outputs at the same time.

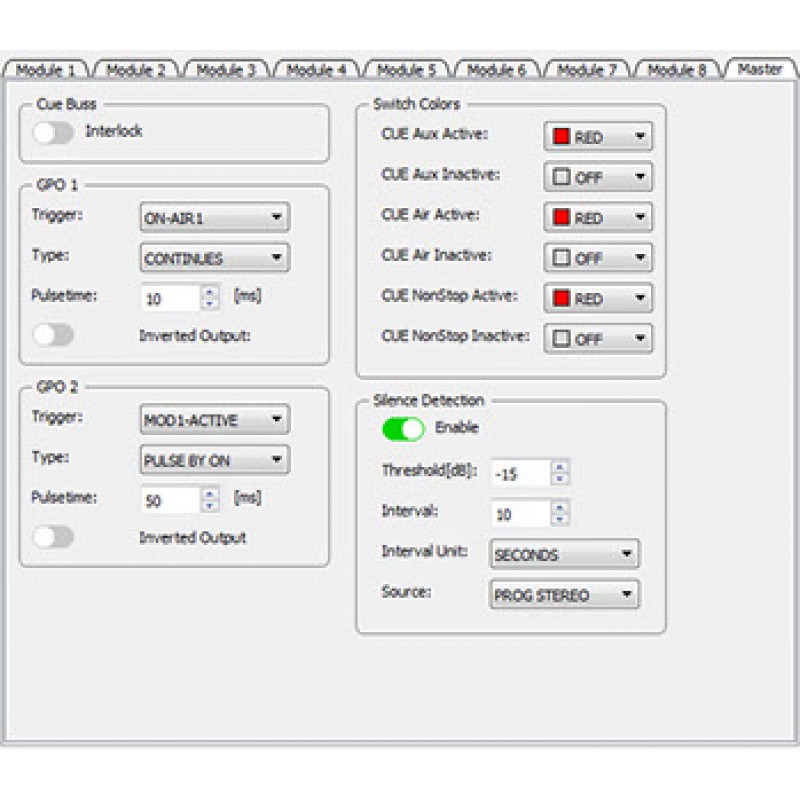

SMART MASTER PROGRAMMING

Also the master section has various options to fine trim the mixer to your needs. At the pictures you see the software pages that can be loaded and give you an overview of its possibilities. There are settings that adjust the Silence Detection with parameters for Threshold, Interval time and the source. There is also a section to invert the GPO 1 and GPO 2 triggering outputs and its various states. On other software pages you can program the switch colours you personally like. Also the CUE bus can be set to behave interlocking, which means that when you select another CUE the earlier selected one automatically switches off.

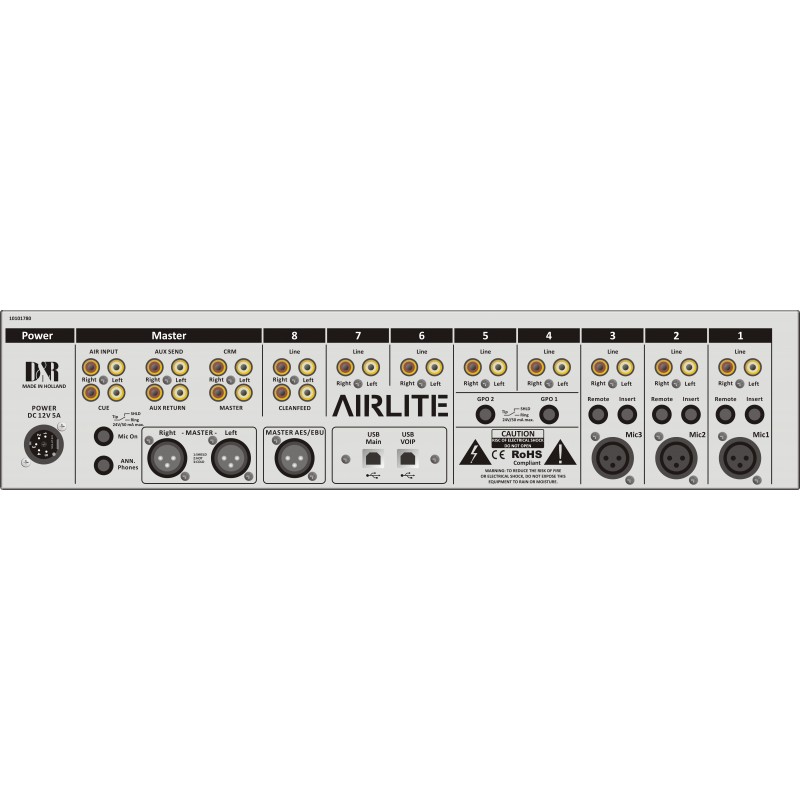

SPECIFICATIONS:

INPUTS

Mic inp: bal, 2 kOhm, XLR ,48 volt Phantom.
Noise: - 128 dBr (A-weighted).
Sensitivity: - 70dB min, OdB Max.
Insert: Jack unbal. send 600 Ohm -10dBv.
Aux Ret.: unbalanced 10kOhm -10dBv.
Line inputs: unbal., 10kOhm, Cinch.
Gain: range of 40dB.
USB: 4x Stereo in and 4x stereo out.
Air input: - 10 dBv at 10kOhm stereo
Aux ret.: - 10 dBv at 10kOhm stereo

OUTPUTS

Left/Right: + 6dBu bal /XLR. -10dBv/Cinch
CRM/Aux: + 6dBu unbal. on Cinch.
Headphone: 32-400 Ohm, Jack. (TPA 6120)
Announcer): 32-400 Ohm, Jack. (TPA 6120)
USB out: Program/Aux/Voice track/Non Stop

EQUALIZER

High: + / -12 dB at 12kHz shelving.
Mid: + / -12dB at 1 kHz bell curve.
Low: + / -12dB at 60 Hz bell curve.

USB

Fully compliant with USB 2.0
playback and record mode.
4x Stereo in and 4x stereo out.

USB CONTROL SECTION
16 free assignable illuminated switches based on the HID protocol.

VoIP CHANNEL
Dedicated USB connector for VoIP processing

CONTROL SOFTWARE
A software program is included in the delivery for programming the Control section (Airlite Virtual Keyboard Mapper) and internal mixer settings.

DIMENSIONS
