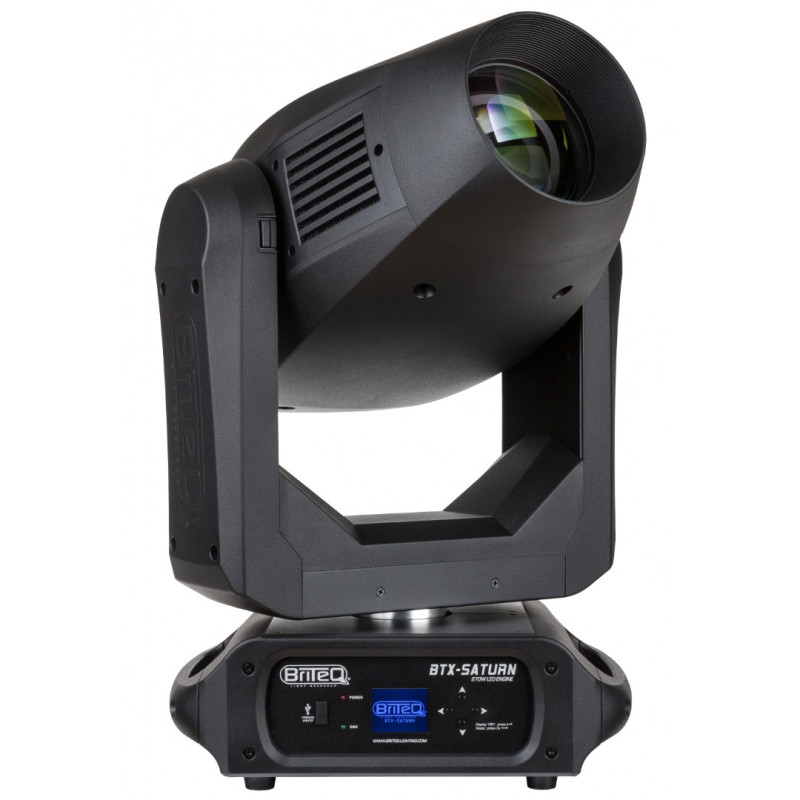

BTX-SATURN Briteq LED Moving Head with Zoom

Description

BTX-SATURN Briteq LED Moving Head with Zoom

270W LED-moving head with 8-45° zoom, CMY-color mixing, CTO, CTB, UV, Iris, Frost, gobo morphing, …

• High efficiency moving head projector based on a powerful 270W LED engine!

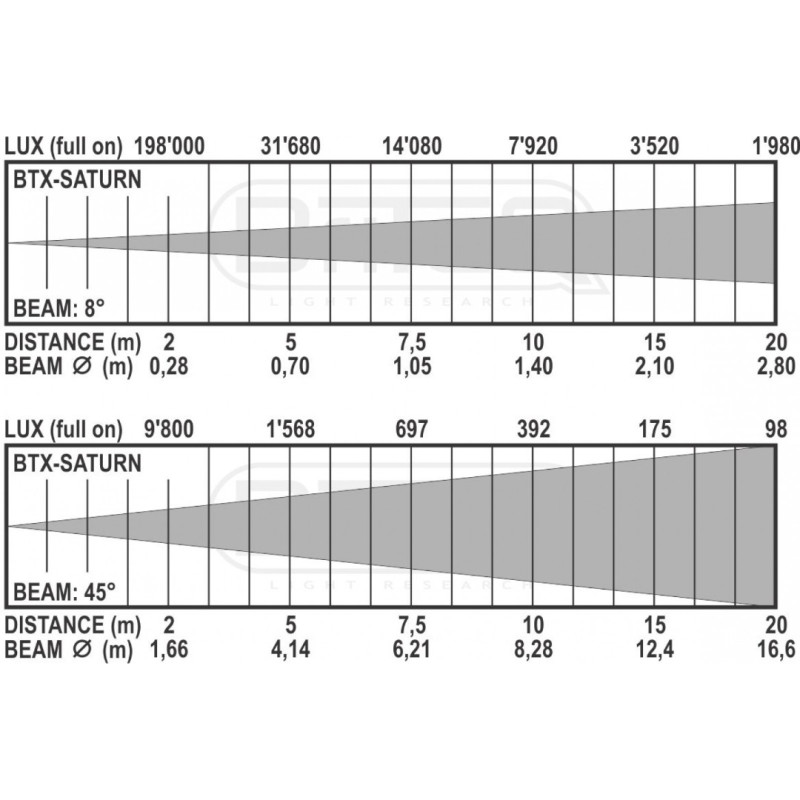

• Wide range electronic zoom, from 8° to 45° + motorized focus.
• Silence mode for theater applications.
• Fast 540° pan and 270° tilt movements.
• 16bit resolution pan/tilt resolution with position correction and pan/tilt speed channel.
• CMY color mixing to create lots of saturated and pastel colors.
• 9 extra fixed colors including 2 CTO, one CTB and UV.
• 7 replaceable rotating gobos with fine indexing.
• 9 fixed static gobos for gobo morphing.
• Rotating 3 facets prism.
• Iris module for dynamic effect.
• Variable frost filter for perfect wash effect.
• Aperture diaphragm for excellent logo projection.
• Opening/closing pulse, ramp and random effects on zoom, iris and frost channels.
• Four dimmer curves: linear, square, inverse square, S-curve, fast and slow dimming mode.
• Accurate strobe with built in random, pulse and burst effects.
• 3 focus compensate distances to always keep the focus according to the zoom opening.
• Uses 25 or 27 DMX channels + RDM-functionality for easy remote setup.
• Easy USB firmware update to keep the moving head up-to-date at all times.
• The matrix LCD-display assures easy navigation in the different setup menus

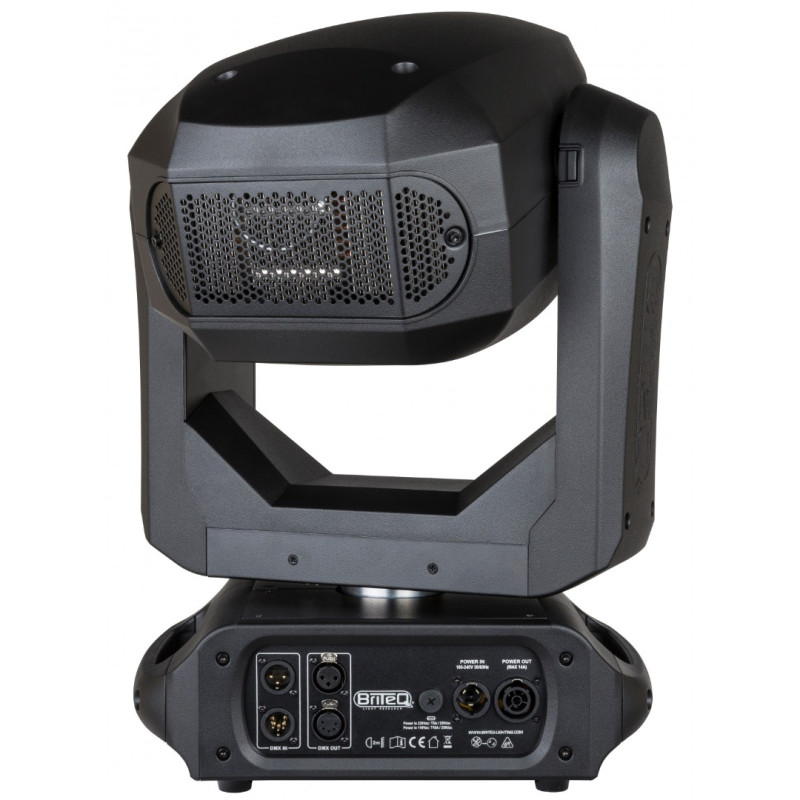

• 3 & 5pin DMX in/outputs + Neutrik PowerCON TRUE1 in/outputs for easy daisy chaining.
• Equipped with omega brackets for fast installation.
