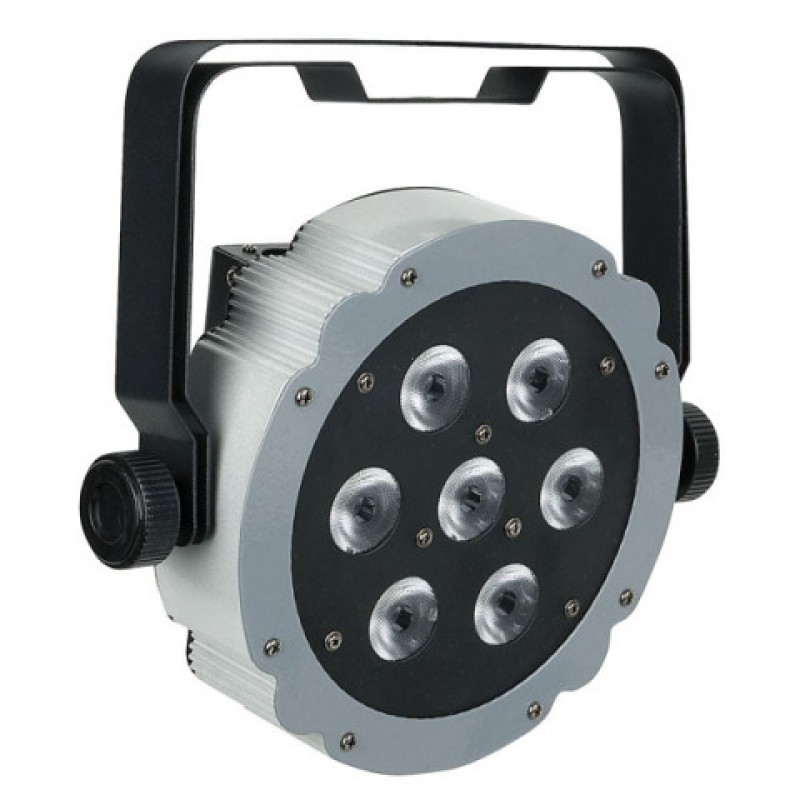

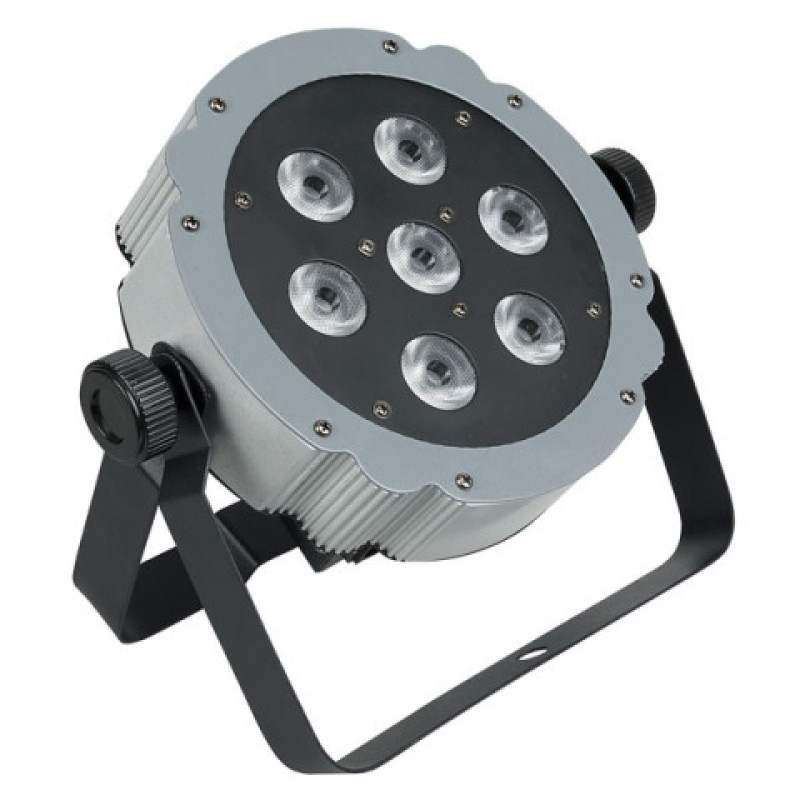

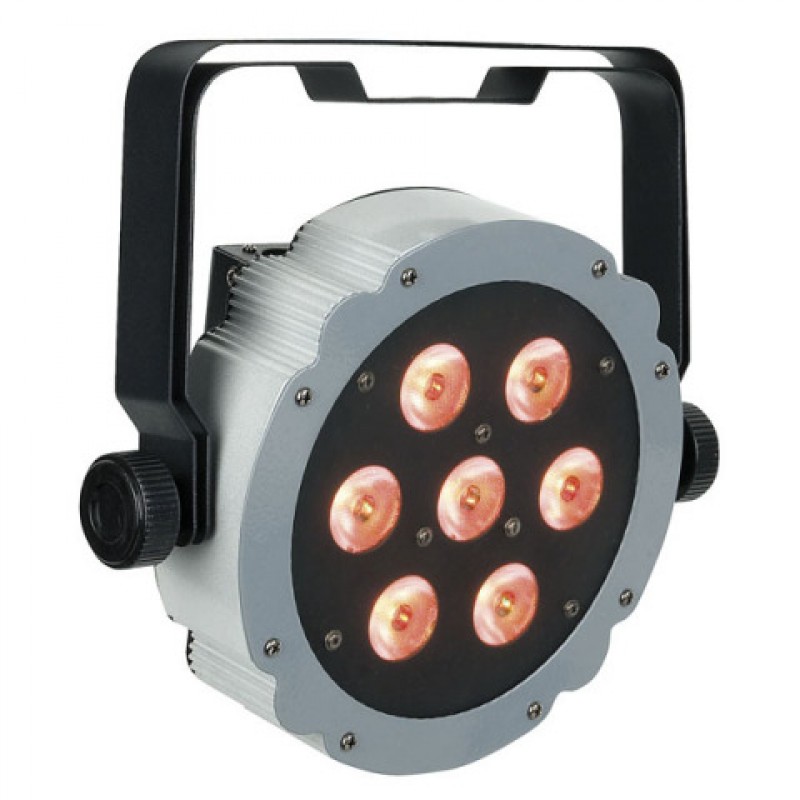

Compact Par 7 Tri Showtec Compact RGB Led Fixture

Description

Compact Par 7 Tri RGB

The Compact Par 7 Tri is an unique designed and compact but powerful parcan fixture. It offers full 3-in-1 RGB color-mixing ensuring vivid colors with a perfect color-mix. Due to its compact design it saves a lot of space for transportation and also in use. The Compact Par 7 has full digital addressing and offers both DMX control and sound to light function. For small applications the Compact Par 7 Tri has also a Master Slave modus.

FEATURES

• Flat Par Housing

• Stylish design

• 3-in-1 LED Technology

• Double bracket

SPECIFICATIONS

Output

• Lumens: 2685

• Lux @2m: 1772

• Max Distance: 15m

Light Source

• LED System: 7 x 3-in-1 LED

• Drive Current: 350mA

• Refresh rate: 3.9KHz

Electrical

• Power Supply: 100-240V AC

• Power Consumption: 28W

Control

• Control Mode: DMX512

• DMX channels: 3,4,8

Optical system

• Dimmer: 0-100%

• Strobe: 0-20Hz

• Beam Angle: 40°

Physical

• Dimensions: 290 x 275 x 115 mm

• Weight: 2,6 kg

• Housing: Aluminum and iron

• Color: Dark grey and Black

• Power Connectors: IEC

• Data Connectors: XLR 3pole

• Cooling: Aluminum heat sink

Safety

• Operation temperature -20~40°C
