CORE MIX-3 USB DAP 3-channel DJ-mixer with USB-interface

Description

CORE MIX-3 USB DAP AUDIO - 2-Channel DJ-mixer with USB-interface

The CORE MIX-3USB is a DJ mixer with 8 analogue inputs and 2 independent USB audio interfaces. This makes it easy to connect your laptop and route the audio of your DJ software directly through the MIX-3 USB. It has an independent variable fx send for each channel which makes it possible to be creative with external effects. The return is controlled by a 45mm fader. The microphone channel has a 3 band EQ, talk-over function and an on/off switch to make MC-ing save and easy for party jocks & MC's. Low tone control on the headphone output makes it possible to adjust your favorite sound. All the pot meters are locked below the surface for extra stability and it has a separate fader print board for easy maintenance. It is equipped with unbalanced and balanced outputs with trim function and has a MP3 module which can record and playback your life performance directly on an USB or SD device.

FEATURES:

• 2 Build-in USB PC/MAC audio interfaces
• 60mm VCA faders
• MP3 USB SD recorder
• Variable FX send / Return each channel
• LED VU meter each channel

SPECIFICATIONS:

Inputs channels:

• 1 x Microphone, combo XLR/Jack
• 6 x Line, RCA
• 1 x Phono, RCA
• 2 x USB, Type B
• 1 x Return, RCA

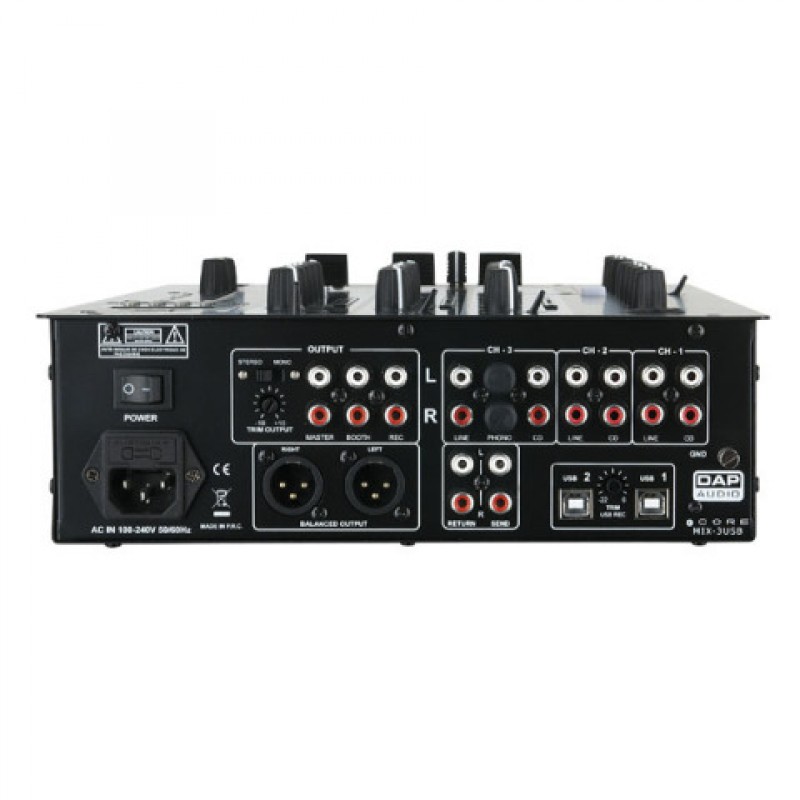

Output channels:

• 1 x Record, RCA
• 1 x Booth, RCA
• 1 x Master unbalanced, RCA
• 1 x Master balanced, XLR
• 1 x Headphones, 6.3mm Jack
• 2 x USB, Type B
• 1 x Send, RCA

Others:

• USB Port: Audio in- & output interface for PC & Mac, 48 KHz, 16 bit
• Channel EQ range: -26dB / +12dB
• Microphone EQ range: -12dB / +12dB
• Frequency response: 20Hz -20Khz
• T.H.D: <0.1%
• MP3 Module: 128Kbit 44.1 Khz, Max 16GB
• Dimensions: 268 x 380 x 88 (WxDxH)
• Power supply: 100-240V AC, 50/60Hz
• Power consumption: 10 Watt
• Weight: 4.6 Kg
