CP16 BEYMA TWEETER 15 WATT

Omschrijving

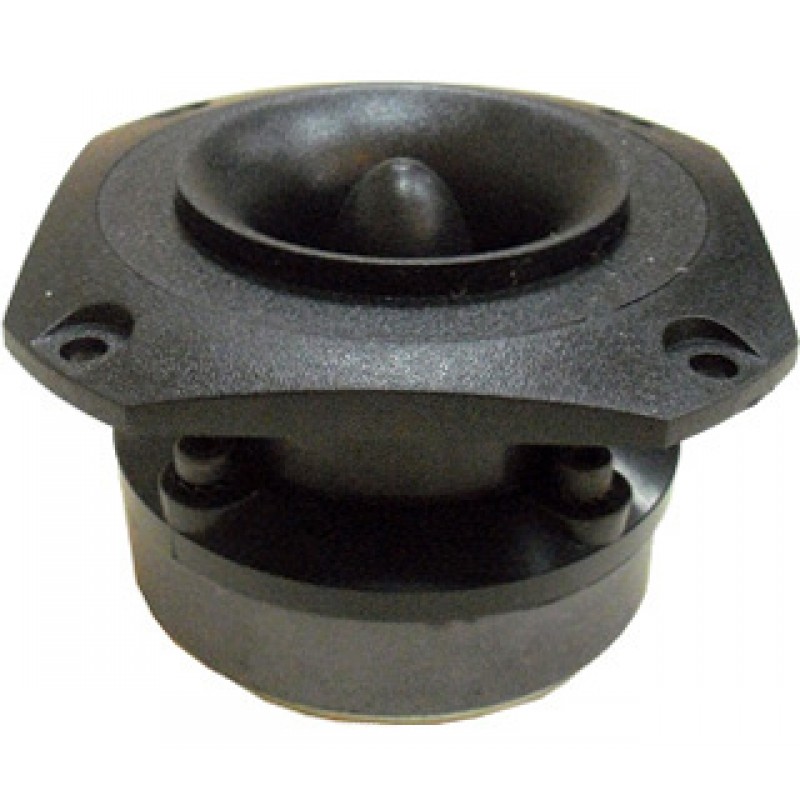

CP16 - COMPRESSION TWEETER
This compression tweeter is designed for using in multi-element loudspeaker systems in sound reinforcement applications that require high output, narrow controlled dispersion and long throw.

Features:

• 1" (25.8 mm) edgewound aluminium ribbon voice coil
• Great power handling: 15 w AES
• Narrow directivity: 40º conical
• High sensitivity: 105 dB
• Designed for outdoor applications

Specifications:

• Nominal impedance: 8 ohm
• Minimum impedance: 8.5 ohm @ 10 kHz
• Re: 7.3 ohm
• Power capacity: 15 W AES
• Program power: 30 W
• Sensitivity: 105 dB 1 W @ 1 m coupled to horn
• Frequency range: 3000-20000 Hz
• Recom. crossover frequency: 6 kHz or higher (12 dB/oct. min slope)
• Dispersion HxV: 40º conical
• Voice coil diameter: 25.8 mm 1 in
• Flux density: 1.45 T
• BL factor: 4 N/A
• Diaphragm material: Aluminium
