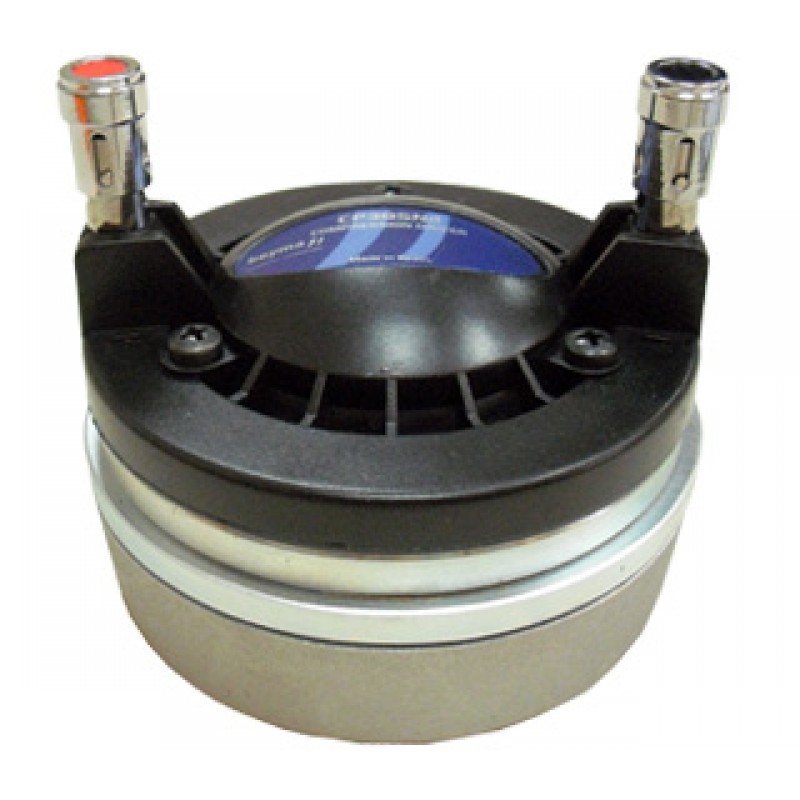

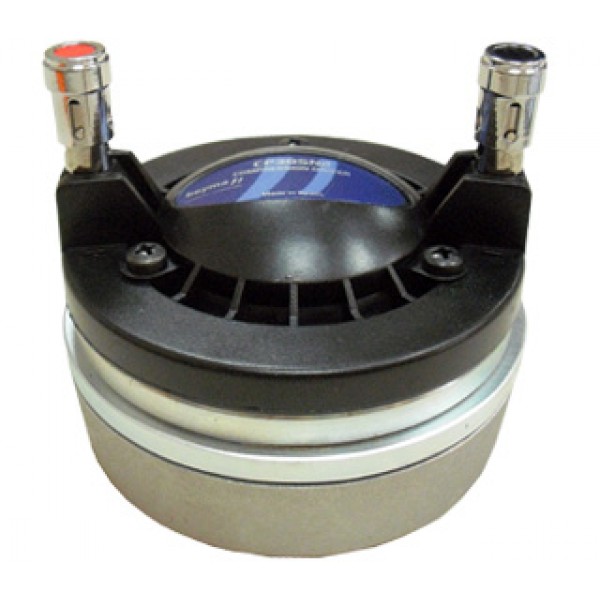

CP385/ND BEYMA 1" DRIVER 70WATT AES @8OHM

Omschrijving

CP385ND HIGH FREQUENCY COMPRESSION DRIVER

Features:

• Diaphragm: Polyester
• Voice coil: Edgewound aluminium ribbon
• Voice coil former: Kapton
• Magnet: Neodymium

Specifications:

• Throat diameter: 25 mm 1 in.
• Rated impedance: 8 ohms.
• Minimum impedance: 5.2 ohms. @ 4.5 kHz D.C.
• Resistance: 4.7 ohms.
• Power Capacity*: 70 w AES above 1.5 kHz
• Program Power: 140 w above 1.5 kHz
• Sensitivity**: 107 dB 1w @ 1 m coupled to TD-250 horn
• Frequency range: 0.8 - 20 kHz
• Recommended crossover: 1.2 kHz or higher, 12dB/oct. min.
• Voice coil diameter: 44.4 mm. 1.75 in.
• Magnetic assembly weight: 1.1 kg. 2.42 lb.
• Flux density: 2.2 T
• BL factor: 7.5 N/A
