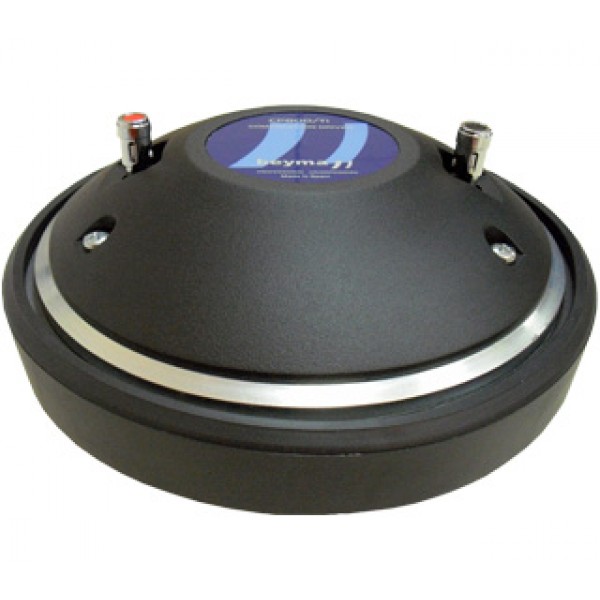

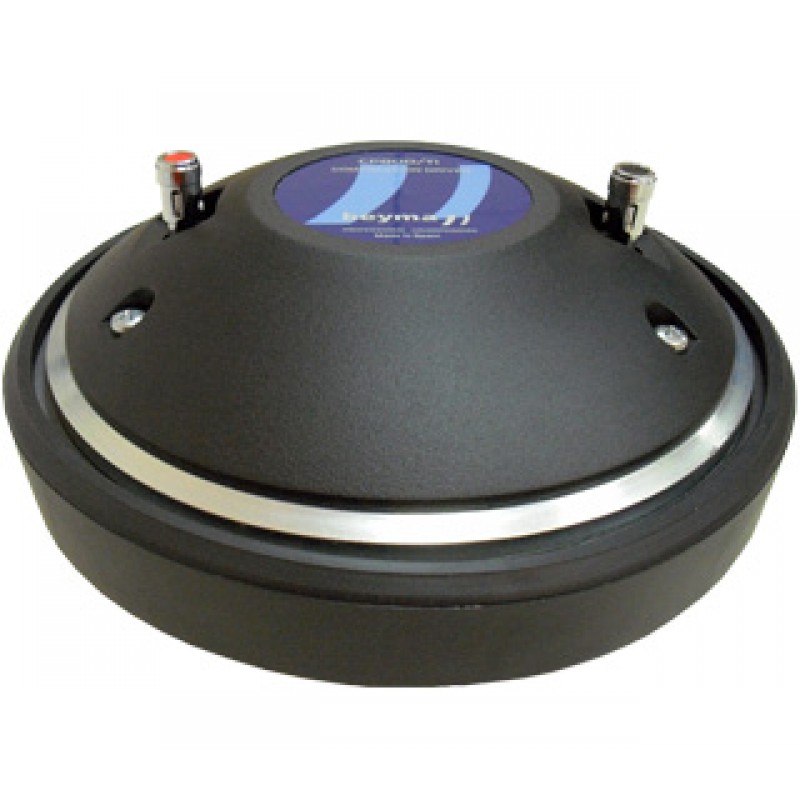

CP800/TI BEYMA 2" DRIVER 65WATT AES @8OHM

Omschrijving

CP-800TI COMPRESSION DRIVER.

Features:

• 2” exit (50 mm) high frequency compression driver
• 4” (100 mm) voice coil diameter
• 200 W program power above 500 Hz
• Sensitivity: 112 dB, 1 W @ 1 m
• Integral pure Titanium diaphragm
• Lightweight aluminium voice coil
• Aluminium cover
• Ferrite magnet

Specifications:

• Throat diameter: 50.8 mm 2 in
• Nominal impedance: 8 ohm
• Minimum impedance: 7 ohm @ 0.8 kHz
• Re: 5.6 ohm
• Power capacity: 100 W AES above 500 Hz
• Program power: 200 W above 500 Hz
• Sensitivity: 112 dB 1 W @ 1 m coupled to horn
• Frequency range: 500-20000 Hz
• Recom. crossover frequency: 500 Hz or higher (12 dB/oct. min slope)
• Voice coil diameter: 101.6 mm 4 in
• Flux density: 1.75 T
• BL factor: 15 N/A
• Diaphragm material: Titanium

Downloads:

• User Manual
