DIG-110 AES-EBU 110 OHM DIGITAL CABLE 100M - DAP-AUDIO

Description

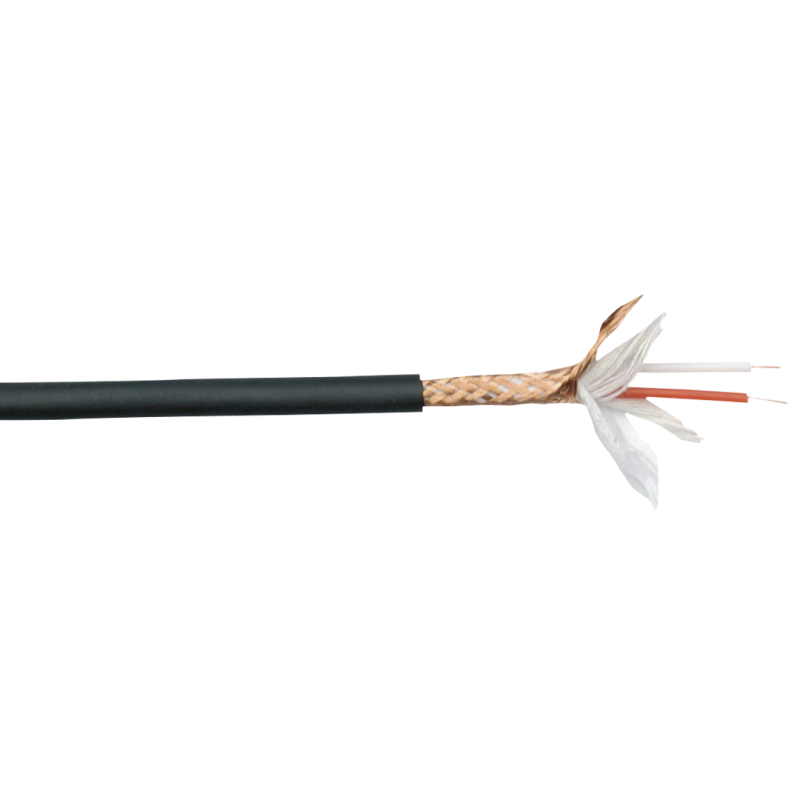

• Conductor drains Ø mm: OFC 18 x 0,10
• Conductor insulation: FPE red+white
• Conductor insulation: 1,9 (Ø in mm)
• Filler material: paper + cotton yarn
• 1st shield: OFC braided 128 x 0,12
• Outer isolation: PVC black+blue
• Outer isolation Ø in mm: 6
• Conductor resistance: 130 Ohm/Km
• Shield resistance: 12.5 Ohm/Km
• Capacity Inner conductor: 35 pF/m
• Cap. Inner conduct. Shield / Inner conduct.: 52 pF/m
• Working temperature min. / max.: -20~60 °C
• Working Voltage overflash: 30V
• Nom Impedance: 110 Ohm
