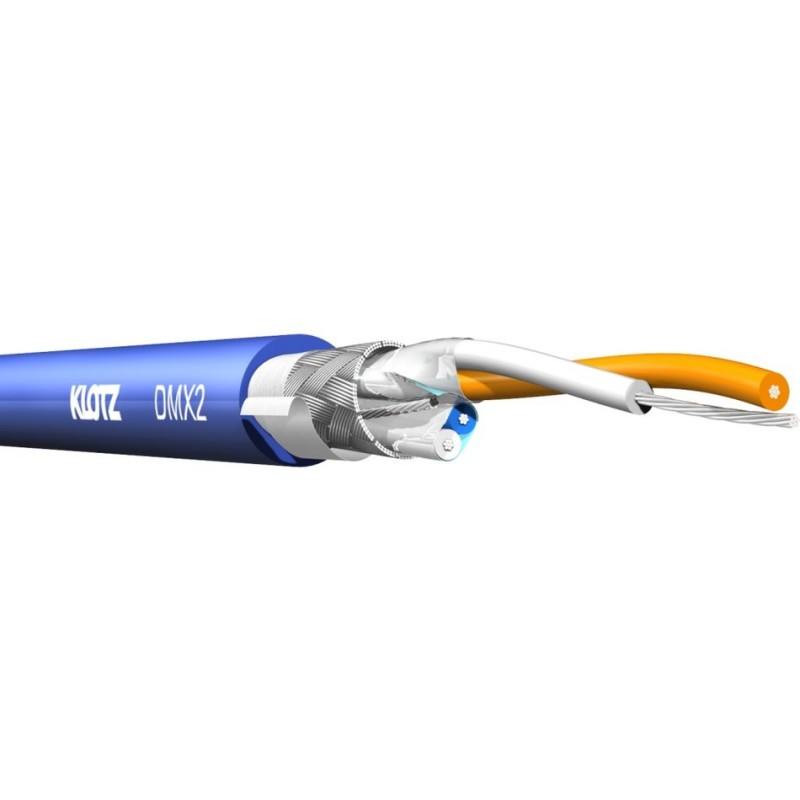

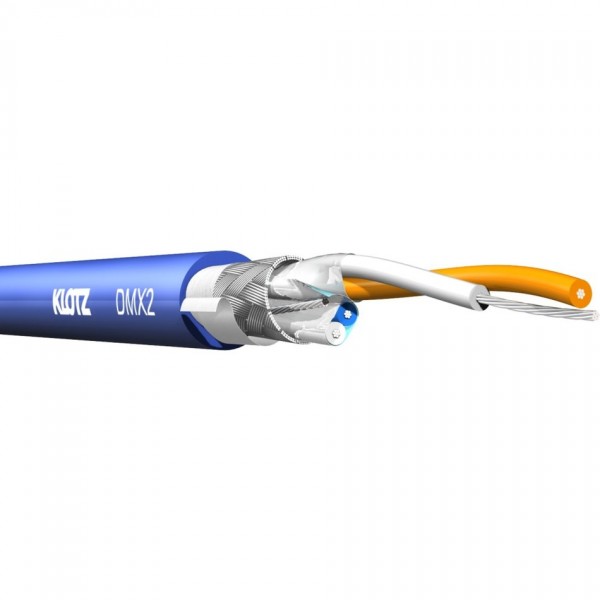

DMX2 2 PAIR BLUE KLOTZ / ROL 100M
This two-pair digital cable with a characteristic impedance of 110 ohm not only provides for the standard unidirectional DMX link between the control unit and dimmers but also the transmission of optional error and status signals in the opposite direction. So this cable is also HIGHLY suitable for RDM compatibility.
Technical Specification:
Construction
|
cond. construction
|
stranded tinned copper, 7 x 0.20 mm
|
|
cond. cross section
|
0.22 mm2
|
|
insulation
|
Foam-Skin PE
|
|
pair shielding
|
AL/PET foil
|
|
drain wire
|
stranded tinned copper, 7 x 0.20 mm
|
|
overall shield
|
tinned copper braid, 85% coverage
|
|
outer jacket
|
PVC
|
|
overall diameter
|
8.0 mm
|
Mechanics
|
min. bending radius
|
35 mm
|
|
working temperature
|
-20°C / +70°C
|
Electric:
|
conductor resistance
|
< 85 Ω/km
|
|
Capacitance
|
|
|
cond./cond.
|
47 pF/m
|
|
characteristic impedance
|
110 Ω
|
|
Attenuation [dB/100m]
|
|
|
1 MHz
|
2.3
|
|
3 MHz
|
3.9
|
|
10 MHz
|
6.9
|
|
insulation resistance
|
> 10 GΩ x km
|
|
Test voltage
|
|
|
cond./cond.
|
1200 V
|
|
cond./shield
|
500 V
|
