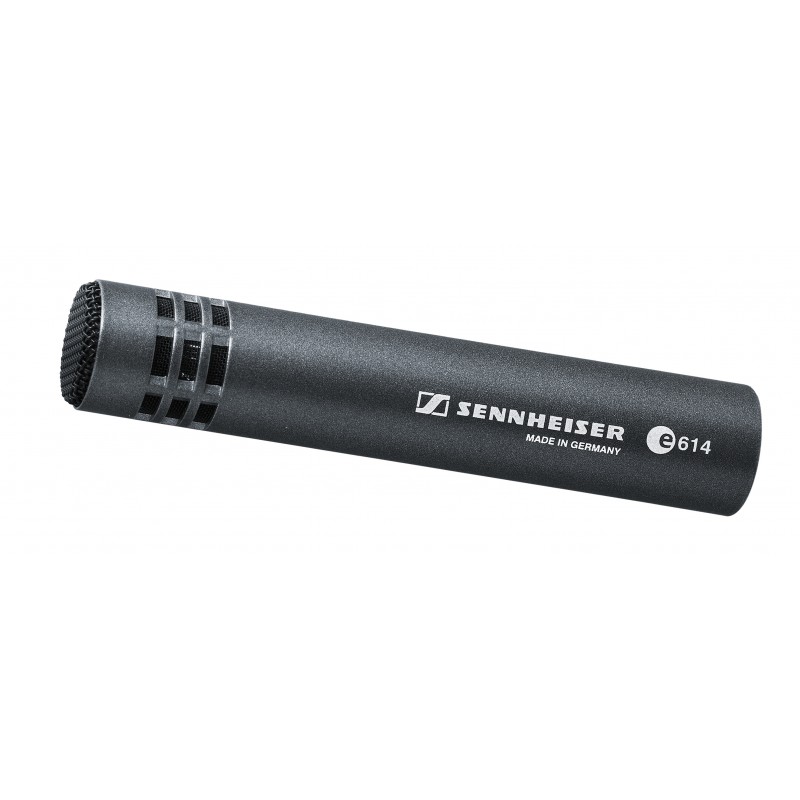

E 614 SENNHEISER ELECTRET CONDENSER INSTRUMENT MICROPHONE

Description

E 614 SENNHEISER - Super-cardioid electret condenser microphone

Super-cardioid electret condenser microphone for demanding instrument recordings, and performances that produce extended frequencies, high SPL handling and transient response. For woodwind, strings, and home recording.

Features

• Condenser microphone

• Excellent directivity over the entire frequency range (40-20,000 Hz)

• Natural sound for flexible applications

• Designed for high sound pressure levels

• Rugged and ready for the road

Specifications

• Dimensions Ø 20mm, L = 100mm

• Connector XLR-3

• Frequency response 40 - 20000 Hz

• Transducer principle pre-polarised condenser microphone

• Weight w/o cable: 93 g

• Pick-up pattern super-cardioid

• Sensitivity in free field, no load (1kHz) 3 mV/Pa = - 50dB (0 dB = 1 V/Pa)

• Nominal impedance 50 Ω

• Min. terminating impedance 1000 Ω

• Phantom powering 12 – 52 V / 3 mA

• Equivalent noise level 24 dB(A)

• Equivalent noise level weighted as per CCIR 468-3 35 dB

• Maximum sound pressure level (passiv) 139 dB/SPL
