EPR412 ZWART CAYMON

Omschrijving

EPR412

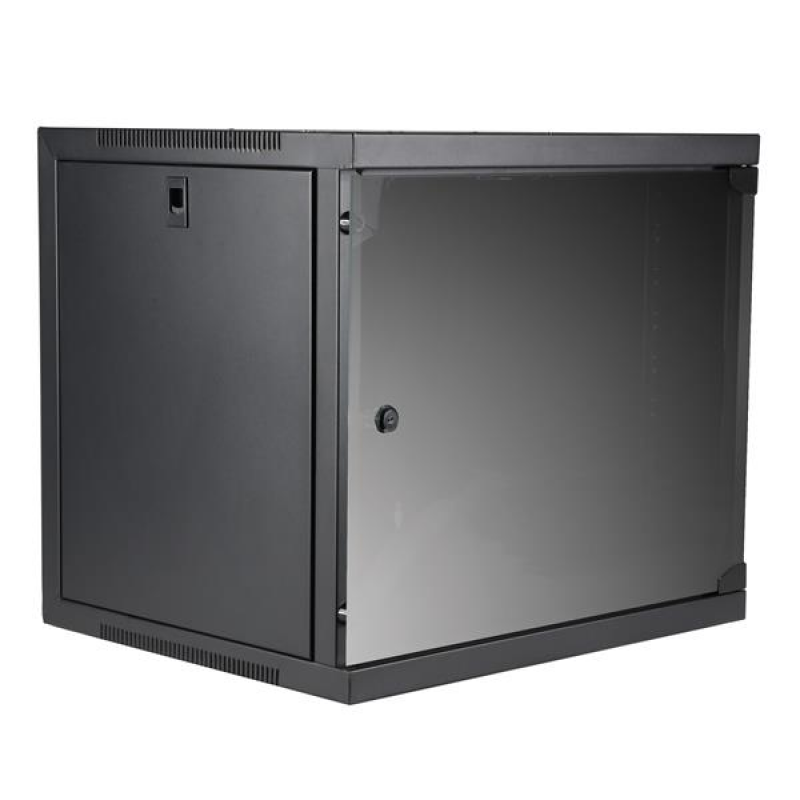

Economical 19" Wall rack - 12 Units - 450 mm depth

The EPR412 is an economical wall mountable 19" rack compliant to ANSI/EIA RS-310D, DIN41491, IEC 60297 standards. The construction is made of an 1.5 mm thick steel frame with 1.0 mm thick plates and is finished with a black (RAL9004) fine structured powder coating. It stores up to 12 units of 19” equipment, comes fully assembled and can easily be mounted on the wall. The 19” mounting profile with punched square holes for use with snap-in cage nuts in combination with the printed unit measurement indicators ensure easy fitting of the equipment. The tempered glass front door is reversible and secured with a key lock which keeps the equipment accessible for authorized persons only. Other present features are removable sides and in depth adjustable 19” profiles allowing easy and flexible cabling & installation.

Product highlights

• Reversible door position

• In-depth adjustable 19” profiles

• Removable side panels

• Cable entry on top & bottom

• Ventilation grid on top

• Punched square holes for use with snap-in cage nuts

• Static load up to 50 Kg

• ANSI/EIA RS- 310D, DIN41491 and IEC60297 standard

Specifications

• Unit height : 12 HE

• Max usable depth : 370 mm

• Max load : 50 kg

• Width : 540 mm

• Depth : 443,5 mm

• Height : 616,7 mm

• Rack color : Black (RAL 9004)
