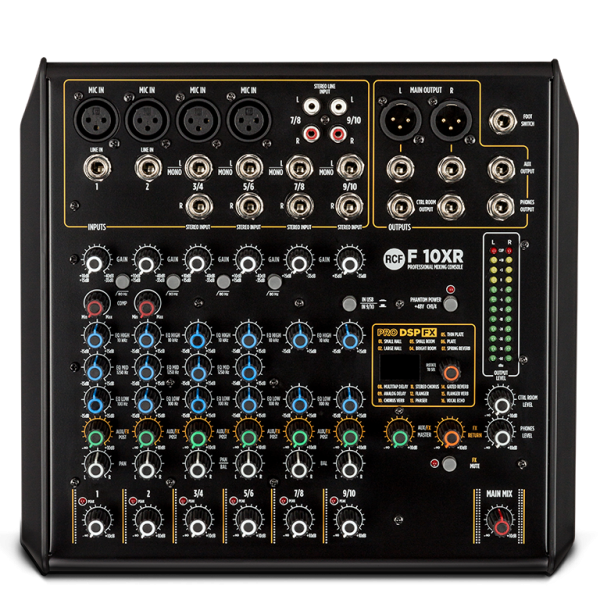

F 10XR RCF 10-channel analog wixer with FX

Description

F 10XR RCF - 10-CHANNEL MIXING CONSOLE WITH MULTI-FX & RECORDING

RCF’s next generation F Series mixers builds on the rich analog legacy found in the professional E Series, featuring high quality sound in four formats from 6 to 16 channels. A powerful tool for the musician and the sound enthusiast, entirely conceived and designed by the RCF R&D team. Housed in a sturdy metal chassis, each mixer features a full balanced audio path from input to output and the unique PRO DSP FX: 16 professional effects such as Reverbs (Halls, Rooms, Plates, Spring), Delays (Mono, Stereo and Multitap), Chorus, Flangers and Echoes. The models F-10XR, F-12XR, and F-16XR, include an USB audio interface, for stereo recording on computer-based DAW and 2-channel playback

Features

• 4 Mic preamp inputs, 2 mono line inputs
• 4 Stereo line inputs
• PRO DSP FX onboard with 16 presets
• Stereo recording and playback via USB port
• 2 single control compressors
• Balanced main output +28 dB (Stereo XLR + TRS)
• 1 aux/FX (post)
• Sturdy metal chassis

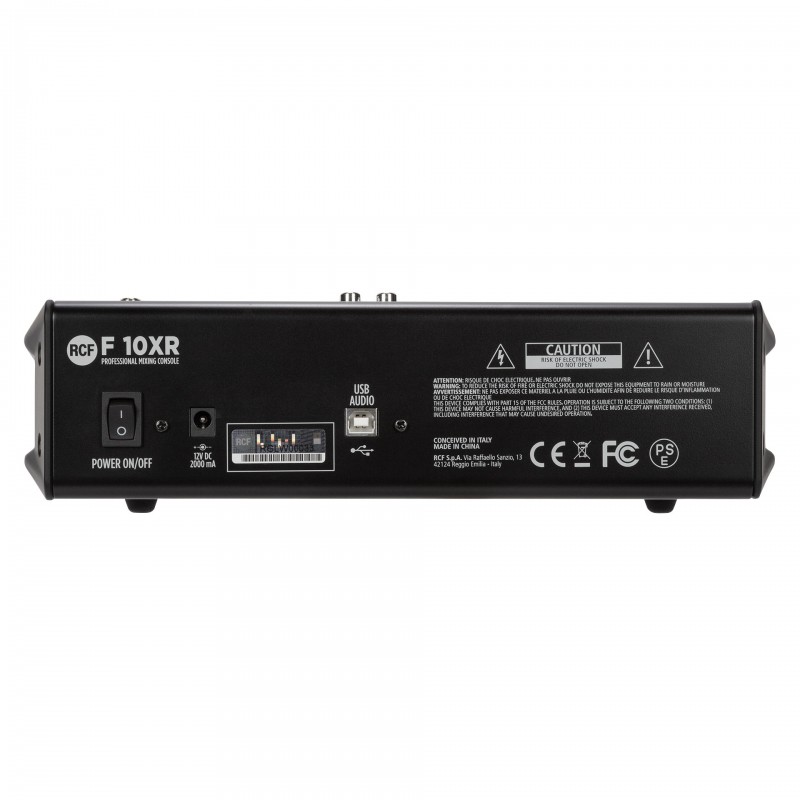

• External universal power supply
• Designed and engineered in Italy

SPECIFICATIONS

Electrical specifications

• FREQUENCY RESPONSE: 20 Hz ÷ 20 kHz
• THD+N, 20DB GAIN, 0DBU OUT (% A-WEIGHTED): <0,02
• POWER SUPPLY:  External
• VOLTAGE REQUIREMENTS: 100 V - 240 V
• POWER CONSUMPTION (W): 18 W

Inputs

• GAIN RANGE: 0 dB ÷ -50 dB
• GAIN SELECTION: 20 dB ÷ -30 dB
• MIC INPUTS IMPEDANCE (KOHM): 14 kohm

LINE: 2

• LINE INPUT IMPEDANCE (KOHM): 21 kohm
• LOW CUT: 80 Hz

MIC: 4

• PHANTOM POWER +48V: Yes
• STEREO LINE: 4
• STEREO LINE GAIN SELECTION: 20 dB ÷ -30 dB
• STEREO LINE INPUT IMPEDANCE: 15 kohm

Outputs

• MAIN MIX: 1
• CONTROL ROOM: Yes
• FX SEND: 1
• AUX OUTPUT: 1
• PHONES: 1

Outputs specifications

• MAIN OUT LEVEL (DBU): 28 dBu
• AUX OUT LEVEL (DBU): 28 dBu
• PHONES OUT IMPEDANCE (OHM): 150 ohm

Compressors

• RCF COMPRESSORS: n° 2 Single Control compressors on channels 1&2

EQ

• INPUT CHANNELS EQ: 2 Shelving / 1 Generic

DESCRIPTION:

• High:+/-15 dB @ 10 kHz ShelvingMid:+/-15 dB @ 1,250 kHz BellLow:+/-15 dB @ 100 Hz Shelving

Auxiliary sends

• FX POST: 1

Internal Effects

• SEND EFFECTS: 1

USB audio

TYPE: B

• PLAY TRK: 2
• REC TRK: 2
• SUPPORTED SAMPLE RATE (KHZ): 44.1, 48.0

Other features

• FOOTSWITCH: Yes

Standard compliance

• CE MARKING: Yes

Physical specifications

CABINET/CASE MATERIAL:

• Metal
• COLOR: Black

Size

• DEPTH: 275 mm / 10.83 inches
• HEIGHT: 82 mm / 3.23 inches
• WEIGHT: 2.8 kg / 6.17 lbs
• WIDTH: 294 mm / 11.57 inches
• Shipping informations
• PACKAGE DEPTH: 345 mm / 13.58 inches
• PACKAGE HEIGHT: 130 mm / 5.12 inches
• PACKAGE WEIGHT: 3.8 kg / 8.38 lbs
• PACKAGE WIDTH: 400 mm / 15.75 inches
