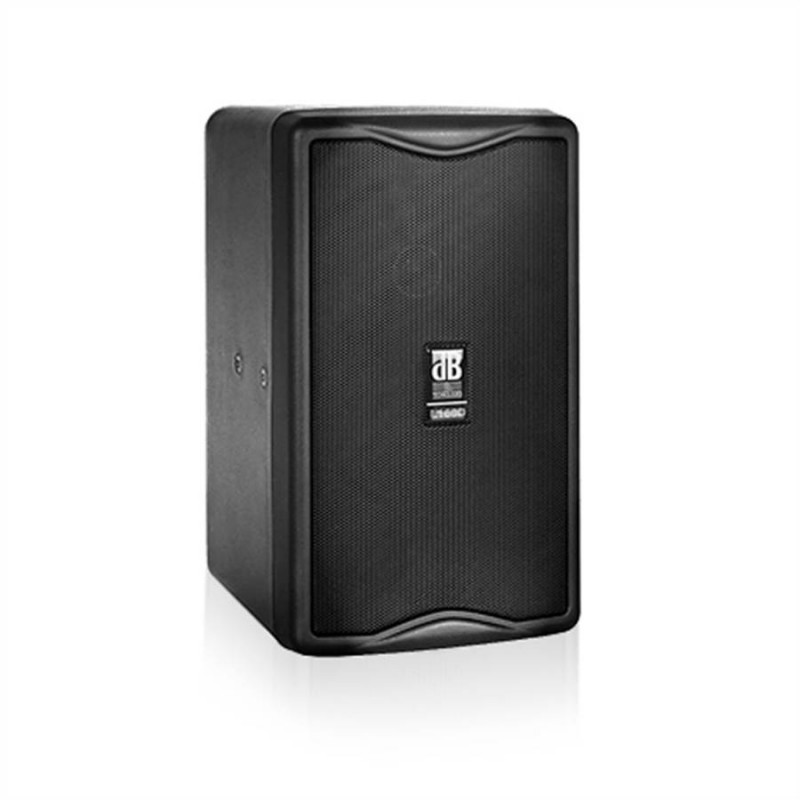

L160D DB TECHNOLOGIES Actieve Speaker (2x 5-inch)

Omschrijving

A powerful yet surprisingly light cabinet, the remarkably compact L160D offers a variety of connection options to provide convenient sound reinforcement for multimedia applications.
Paired with a DSP, the two 5“ phase-corrected loudspeakers deliver astonishingly high sound pressure levels for their size and an amazingly transparent and articulate sonic image.
The multifunctional housing offers wall-mount fixing points for permanent installation and a pole mount for portable use.

SPECIFICATIONS:

Technical Data:

• Speaker Type: 2-Way Active Speaker

Acoustical data:

• Frequency Response [-10dB]: 70 - 20.000 Hz
• Max SPL: 116 dB
• HF: 1 "
• Type HF: Dome Tweeter, coaxial
• Directivity: 85 x 75 °
• LF: 2x 5 “

Amplifier:

• Amp Technology: digipro®
• Amp Class: Class D
• Power PRG: 160 W
• Cooling: Convection

Processor:

• Controller: DSP 24bit/48kHz
• System Presets: 8
• Limiter: Dual Active Peak, RMS, Thermal

Input:

• Signal Input: 1x XLR Line In/Mic 1x 6.3mm phone jack 1x RCA cinch AUX with volume ctrl
• Microphone Input: YES
• Signal Output: 1x 6.3mm phone jack
• Power Socket: VDE
• Voltage Range: 110-120 - 220-240 V

Mechanics:

• Housing: Polyporpylen PP
• Angles Up: Monitor use 60°
• Rigging Points: 2x M5 on side 2x M5 on bottom for accessories
• Accessory: WB03, SN120
• Width: 200 mm (7.87 in)
• Height: 335 mm (13.19 in)
• Depth: 220 mm (8.66 in)
• Weight: 5.2 kg (11.46 lbs)

DOWNLOADS:
User guide can be downloaded here.
