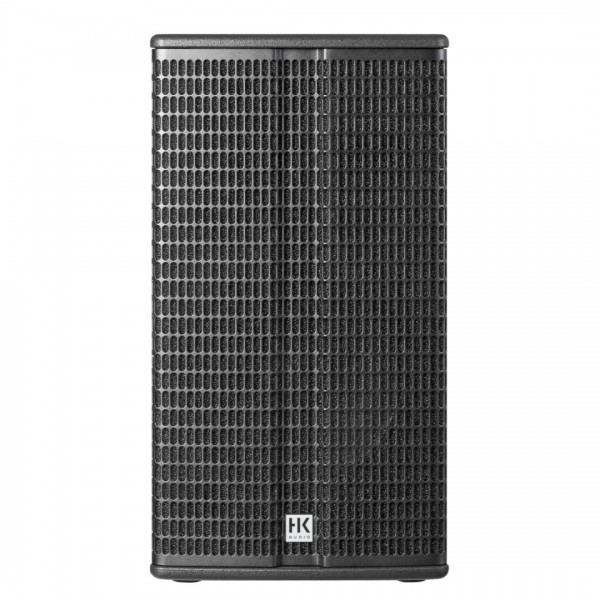

Linear 3 112 FA HK Audio 12-inch Fullrange Speaker

  • S2 ref: 016301
  • 1,110.01
  • 829.-

    Incl. VAT
  • In Stock

* Mandatory fields

  Add to Wish List   Compare this Product
  • Long-Throw Housing
  • 12-inch speaker
  • Max 135 dB SPL

Description

LINEAR 3 112 FA – Active full-range speaker

The active 12″/1″ full-range top is incredibly powerful with its 1,200 watts of power. The four different EQ presets – Bass Boost, Flat (LF), Flat (HMF) and Contour – also make the LINEAR 3 112 FA suitable for a wide range of applications and offer top performance and easy handling in every situation.

Features

  • Active, powerful full-range top
  • High amplifier output of 1,200 W class D bi-amped
  • Balanced, high-resolution sound
  • High sound pressure of 135 dB SPL for sound applications with up to 500 people
  • Advanced DSP technology for high-end sound results, even without specialist PA knowledge
  • “Intelligent Multiband Limiter” ensures consistent sound characteristics at every volume level
  • FIR separation for transparent mid-frequencies
  • Four different EQ presets for flexible applications
  • No fatigue during listening thanks to low distortion factor
  • Simple acoustic control of the system, even from the stage
  • Accurate PA focus, reducing reflections from walls and ceilings
  • Perfect combination options with the LINEAR SUB L SUB 1500 A and L SUB 1800 A subwoofers

Specification

Audio specifications
  • Crossover Frequency: 2.3 kHz FIR X-over with 72 dB/oct.
  • Dispersion angle: 90° x 55° CD horn
  • Frequency Response: -10 dB 58 Hz – 18 kHz
  • HF Driver: 1", 1" voice coil
  • LF Driver: 1x 12", 2" voice coil
  • SPL: 126 dB half space (@ 10 % THD)
Casing
  • Construction Material: 16 mm MDF
  • Dimensions: 36 x 66 x 36.7 cm
  • Weight: 21.5 kg
Power
  • Amplifier Class: D
  • Amplifier Configuration: bi-amp
  • Max Sound Pressure Level: 135 dB half space (@ 10 % THD)
  • Power (peak): 1200 W
  • Power (RMS): 600W
Audio I/O
  • Inputs: 2x XLR combo balanced, 1x Stereo RCA
  • Outputs: 2x XLR Thru balanced, 1x XLR Mix Out
Power supply
  • Power supply: 3 A / 220-240 V (6 A / 100-120 V)
