Linear 7 118FA HK Audio Subwoofer

  • S2 ref: 017189

* Mandatory fields

  Add to Wish List   Compare this Product
  • High performance subwoofer
  • Remote control network
  • 2000W max.

Description

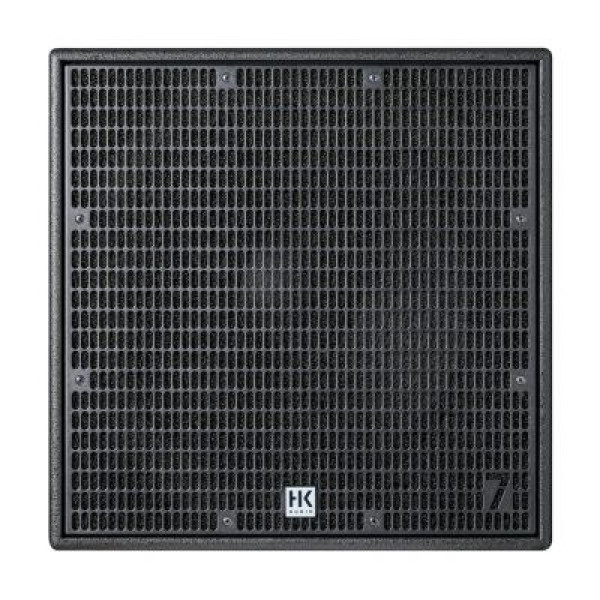

Linear 7 118FA HK Audio Subwoofer

The LINEAR 7 118 Sub A is an extremely powerful yet compact 18-inch subwoofer. Equipped with all the features of the network-compatible LINEAR 7 series, it delivers phenomenal low-frequency performance in numerous applications. LINEAR 7 is deliberately based on the look and proven robust mechanics of the LINEAR 5 series, with specific improvements to cabinet details. Both technically and acoustically, the LINEAR 7 loudspeaker family represents a completely new development. The latest generation of high-performance loudspeakers and drivers, specially designed horns, high-impulse Pascal Class-D power amplifiers, FIR filtering and the latest, exceptionally powerful DSP platform with high-resolution converters make the LINEAR 7 family an acoustically precise instrument for demanding applications. An additional special feature available only with the LINEAR 7 series is that an additional, non-network-compatible active loudspeaker (e.g. from the LINEAR series) can be integrated into the network via DSP-Out and then all parameters can be individually controlled remotely. This ensures that the existing infrastructure retains its value and future-proof capability.

A fully parametric 10-band EQ, high-pass filter, low-pass filter, delay, polarity and limiting are available independently for both the loudspeakers and DSP-Out.

Specification

Audio specifications
  • Frequency range: -10 dB 38 Hz – X-over
  • Frequency Response: +/-3 dB 42 Hz – X-over
  • LF Driver: 1x 18", 4" voice coil
  • SPL: 129 dB half space (42 Hz – 100 Hz averaged)
Casing
  • Construction Material: multiplex
  • Dimensions: 55 x 56 x 69 cm
  • Weight: 41 kg
Networking
  • Netwerk interface: Ethercon RJ45, 1x In, 1x Thru
Power
  • Amplifier Class: D
  • Max Sound Pressure Level: 131 dB half space
  • Power (peak): 2000 W
  • Power (RMS): 1000 W
Main Features
  • Filter: Front, Cardioid 1:1, Cardioid 2:1, Remote
Audio I/O
  • Inputs: 2x XLR combo balanced
  • Outputs: 2x XLR balanced + DSP Out 1x XLR
Power supply
  • Power supply: 1x Powercon NAC3 In, 1x Powercon NAC3 Thru, 100–240 V
Soundcard
  • Sample Rate: 96 kHz
