MagicQ MQ70 Compact Console CHAMSYS

  • S2 ref: 015281
  • 9,438.-
  • 8,899.01

    Incl. VAT
  • Delivery time request

* Mandatory fields

  Add to Wish List   Compare this Product
  • 24 universes directly from the console
  • High resolution 10.1" multi touch screen
  • Built-in WiFi for quick connection to MagicQ Remote App

Description

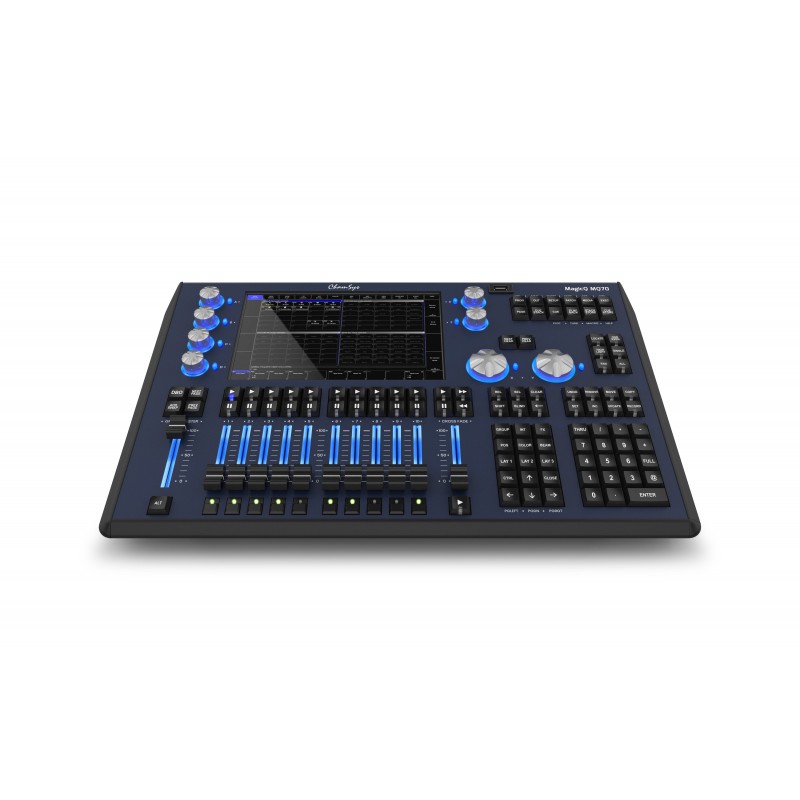

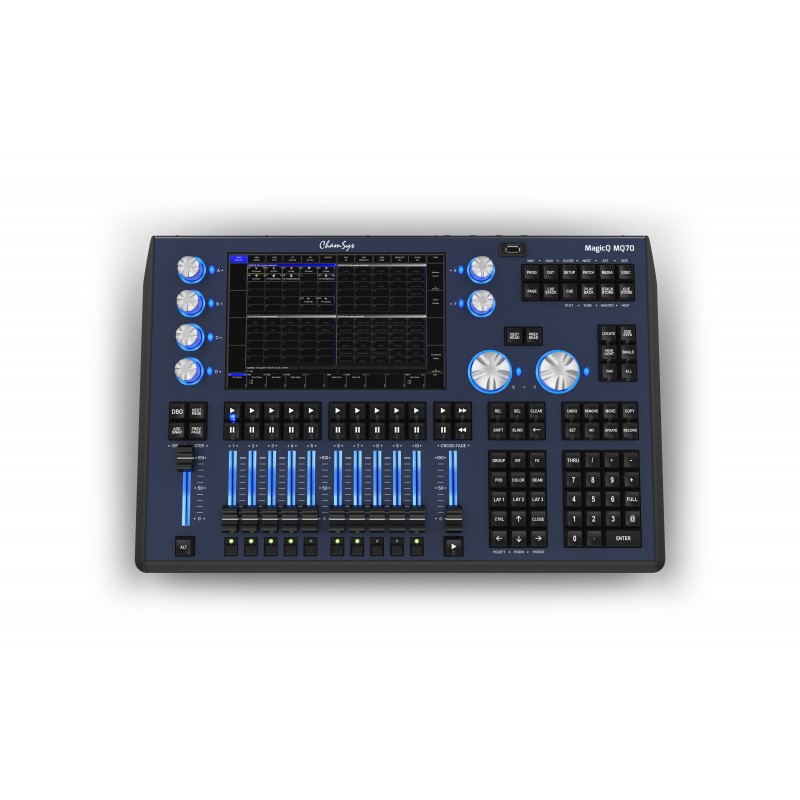

MagicQ MQ70 Compact Console CHAMSYS

MagicQ MQ70 is the latest offering in the Compact Console range of small and lightweight consoles that you can fly with. The MagicQ MQ70 fits within hand luggage carry on restrictions of all the major budget airlines including, Southwest, Easyjet and Ryanair. The console features a 10.1” Multi touch display, with illuminated encoder and fader tracks.

The console supports 24 universes with an option to expand to 48. The console has 3 network ports enabling ArtNet and sACN direct from the console, whilst also having 4 assignable physical DMX ports supporting RDM. This feature packed console also includes WIFI inbuilt to the console for quick connection to ChamSys MagicQ Remote focus application without the need for external networking hardware.

The MQ70 features an inbuilt UPS which protects both the console and the Ethernet switch in case of power fail. It has low power consumption and does not require a cooling fan - enabling silent operation making it the ideal choice for touring shows, broadcast, theatrical and corporate shows.

With built in MIDI input and output, LTC and audio input for synchronization, the MagicQ MQ70 provides many options for integration with show control and audio systems.

The MagicQ MQ70 runs the same MagicQ software as other MagicQ consoles, meaning that shows programmed on it can be loaded and ran on any other MagicQ console (within the universe limits).

Specification

Casing
  • Dimensions: 680mm x 290mm x 500mm
  • Weight: 7kg
Control
  • Number of DMX-channels: 12288 *Expandable to 24576 via Artnet/sACN/Pathport): 24 *Expandable to 48
Networking
  • Netwerk interface: 3 ports
Operation
  • Display: 10.1" HD Multi-Touch Display
  • Faders: Playbacks: 10 (backlit) / Grand Master Fader: 1 / Crossfade Master Fader: 1
Main Features
  • MIDI Control: 1 in, 1 out
Audio I/O
  • Inputs: YES (1 channel, 7 band)
  • Outputs: YES

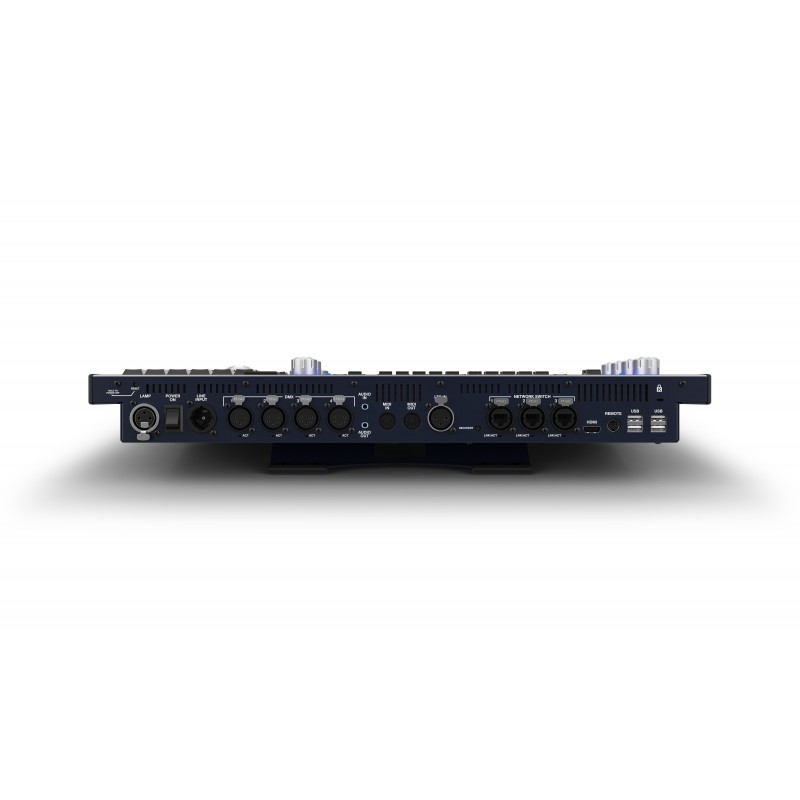

Terminals
  • Outputs: 4 x DMX / RDM
  • USB: 5x
Power supply
  • Power supply: Neutrik powerCON TRUE1 110 to 240 VAC / Built-in 12V battery (UPS)
