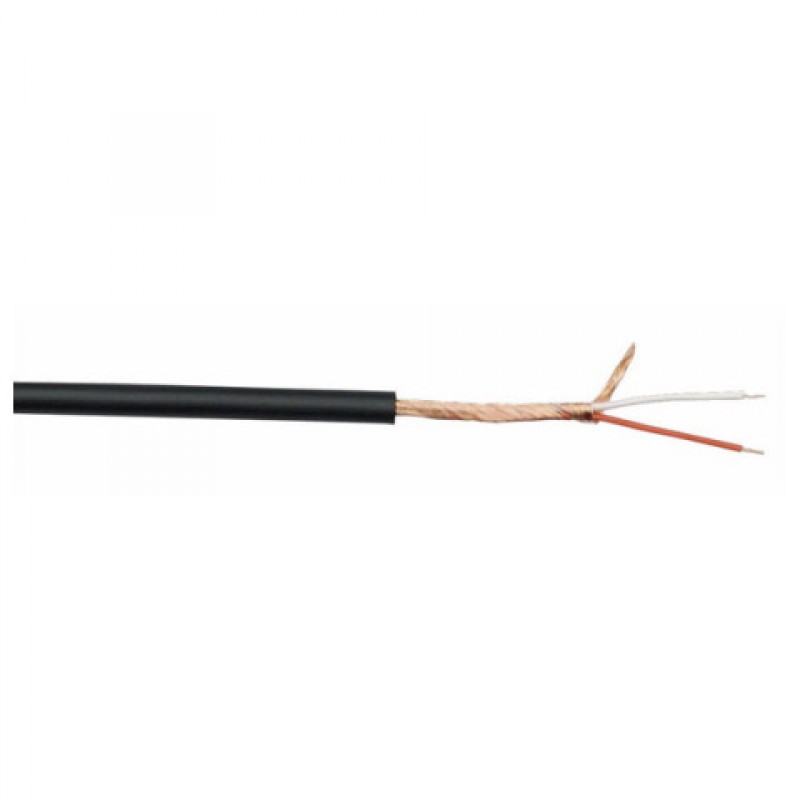

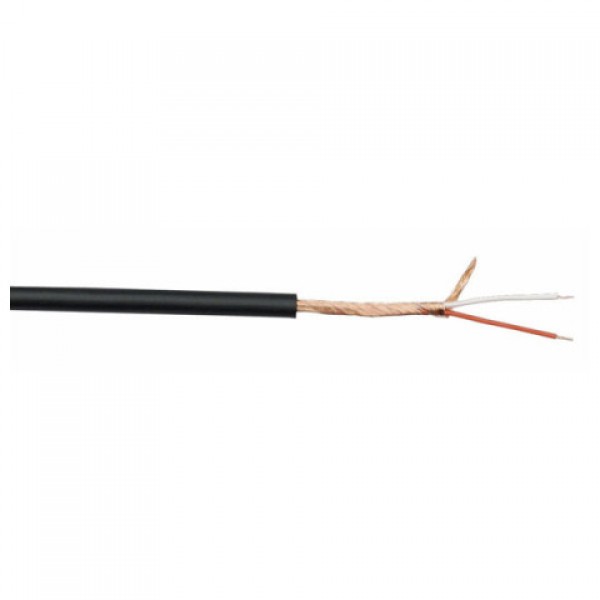

MC-205 MICROPHONE-/LINE CABLE 100 METER - DAP-AUDIO

Description

MC-205 MICROPHONE-/LINE CABLE 100 METER - DAP-AUDIO

Specifications

• Conductor drains Ø mm: OFC 10 x 0,10
• Conductor insulation: PE red+white
• Conductor insulation: 1,0 (Ø in mm)
• 1st shield: OFC twisted 40 x 0,12
• Outer isolation: PVC matte black
• Outer isolation Ø in mm: 5
• Conductor resistance: 160 Ohm/Km
• Shield resistance: -
• Capacity Inner conductor: 60 pF/m
• Cap. Inner conduct. Shield / Inner conduct.: -
• Working temperature min. / max.: -20~60 °C
• Working Voltage overflash: 30V
• Nom Impedance: 110 Ohm
