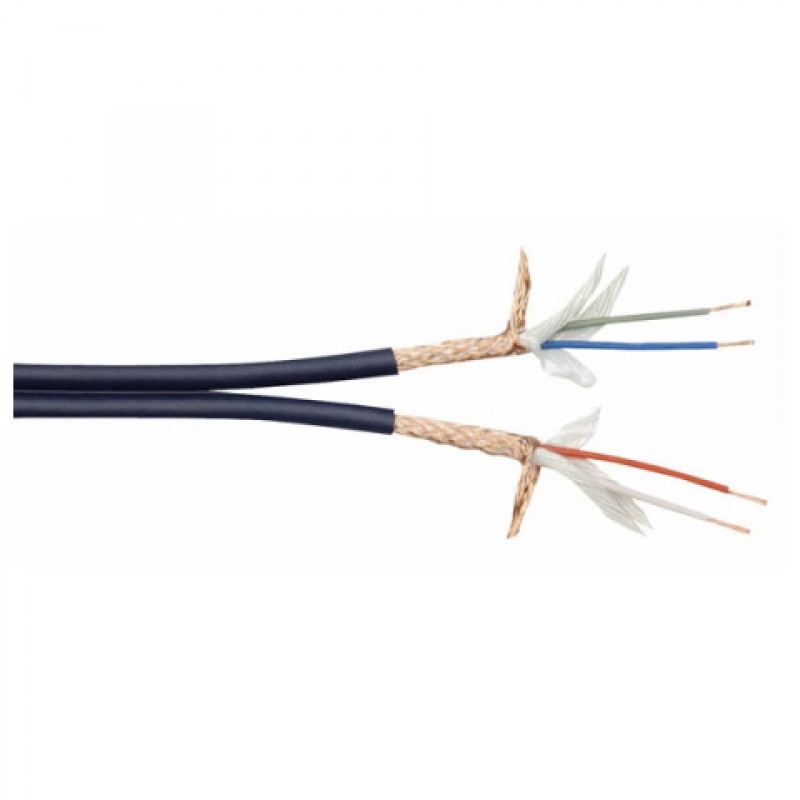

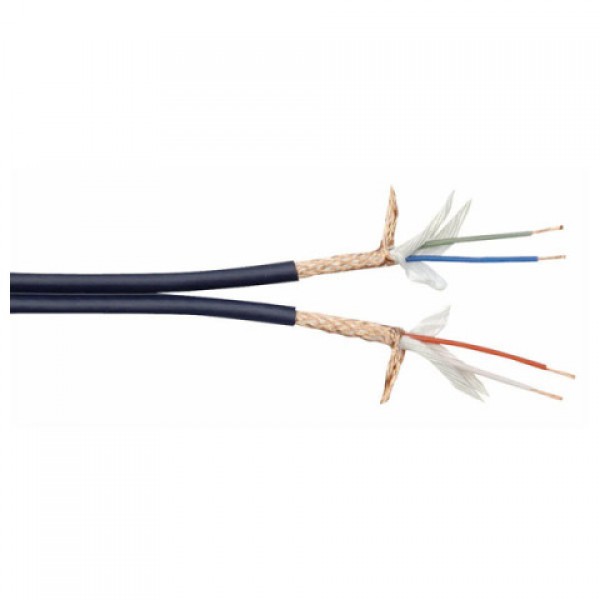

MCD-224 DUAL LINE CABLE 100 M

Description

Specifications:

• Conductor drains Ø mm: OFC 20 x 0,12
• Conductor insulation: PE
• Conductor insulation: 1,4 (Ø in mm)
• Filler material: -
• ​1st shield: OFC braided
• 2nd shield: -
• Outer isolation: PVC black
• Outer isolation Ø in mm: 2 x 4
• Conductor resistance: 80 Ohm/Km
• Shield resistance: 25 Ohm/Km
• Capacity Inner conductor: 65 pF/m
• Cap. Inner conduct. Shield / Inner conduct.: 82 pF/m
• Working temperature: -20~60 °C (min. / max.)
• Working Voltage overflash: 30V
• Nom Impedance: 100 Ohm
