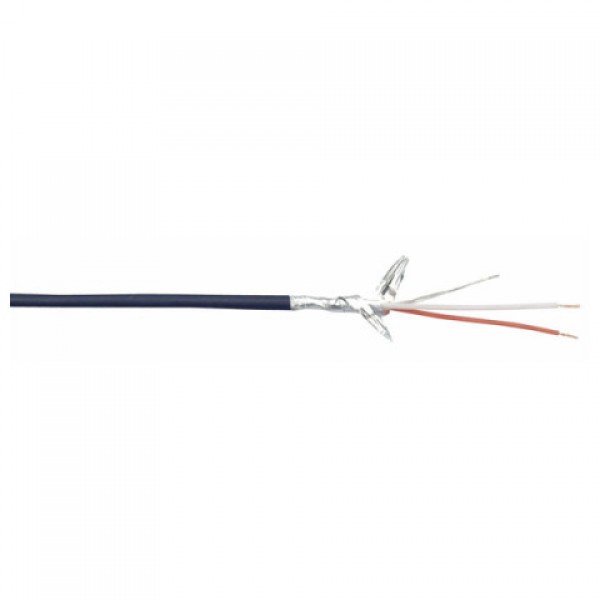

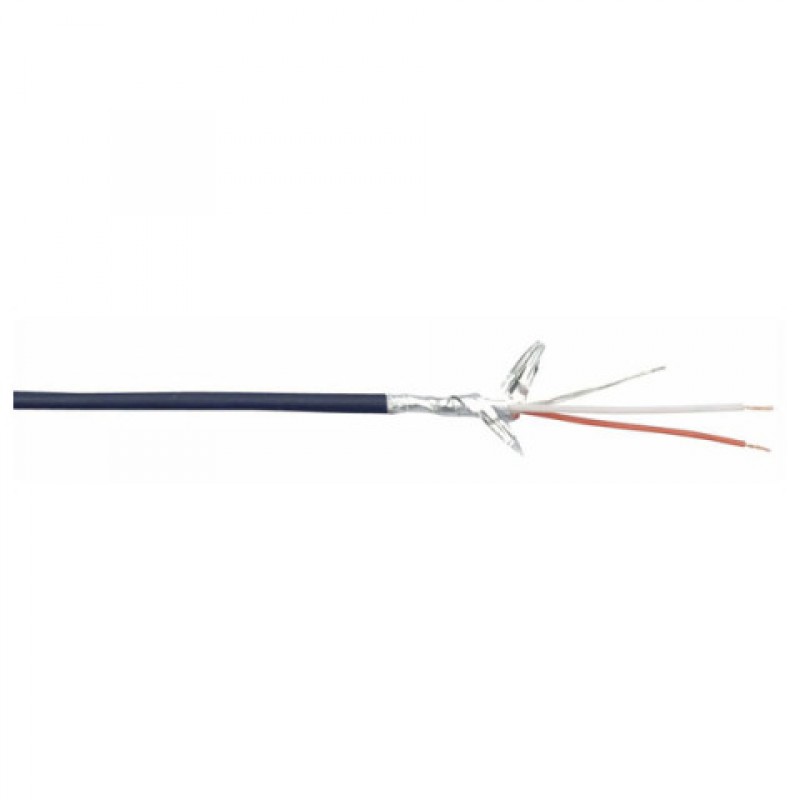

MK-SPIN MICROPHONE/LINE CABLE 100M - DAP-AUDIO

Description

MK-SPIN MICROPHONE/LINE CABLE 100M - DAP-AUDIO

Specifications

• Conductor drains Ø mm: OFC 18 x 0,10
• Conductor insulation: PE red+white
• Conductor insulation: 1,0 (Ø in mm)
• 1st shield: alufoil + tinned drainwire 7 x 0,18
• Outer isolation: PVC dark blue
• Outer isolation: 3 (Ø in mm)
• Conductor resistance: 160 Ohm/Km
• Shield resistance: -
• Capacity Inner conductor: 60 pF/m
• Cap. Inner conduct. Shield / Inner conduct.: -
• Working temperature min. / max.: -20~60 °C
• Working Voltage overflash: 30V
• Nom Impedance: 110 Ohm
