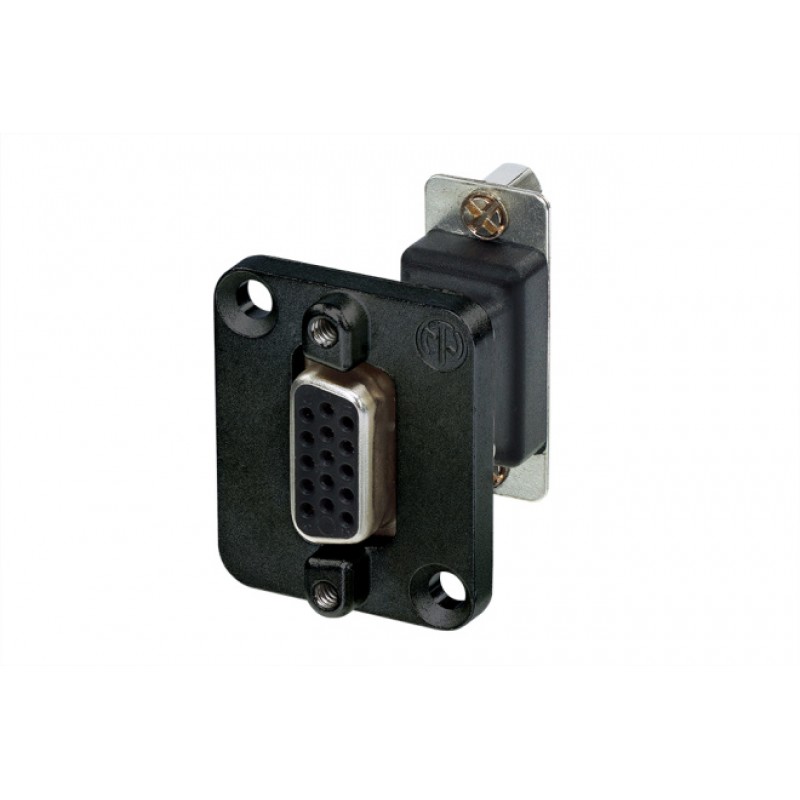

NADB15FF-B - NEUTRIK VGA FEMALE CHASIS BLACK D-SIZE
15 pole D-SUB feedthrough, female to female, black D-shape housing
Features & Benefits
- Ideal for audio networking and integration of equipment into video systems
- Universally accepted standard D-shape housing
Title
|
NADB15FF-B
|
Gender
|
female - female
|
Electrical
|
|
Contact resistance
|
30 mΩ
|
Insulation resistance
|
> 5 GΩ
|
Number of electronical contacts
|
15
|
Rated current per contact
|
3:00 AM
|
Rated voltage
|
50 V ac
|
Dielectric strength
|
> 0.5 kVac
|
Mechanical
|
|
Panel thickness
|
4 mm
|
Wiring
|
Feedthrough
|
Mounting direction
|
Front mounting
|
Chassis shape
|
D
|
Material
|
|
Contact plating
|
Au
|
Contacts
|
Brass (CuZn39Pb3)
|
Insert
|
Steel , tin plated, PBT
|
Shell
|
Zinc diecast (ZnAl4Cu1)
|
Shell plating
|
Black chromium
|
Environmental
|
|
Flammability
|
UL 94 V-0
|
Temperature range
|
-25 °C to +85 °C
|
