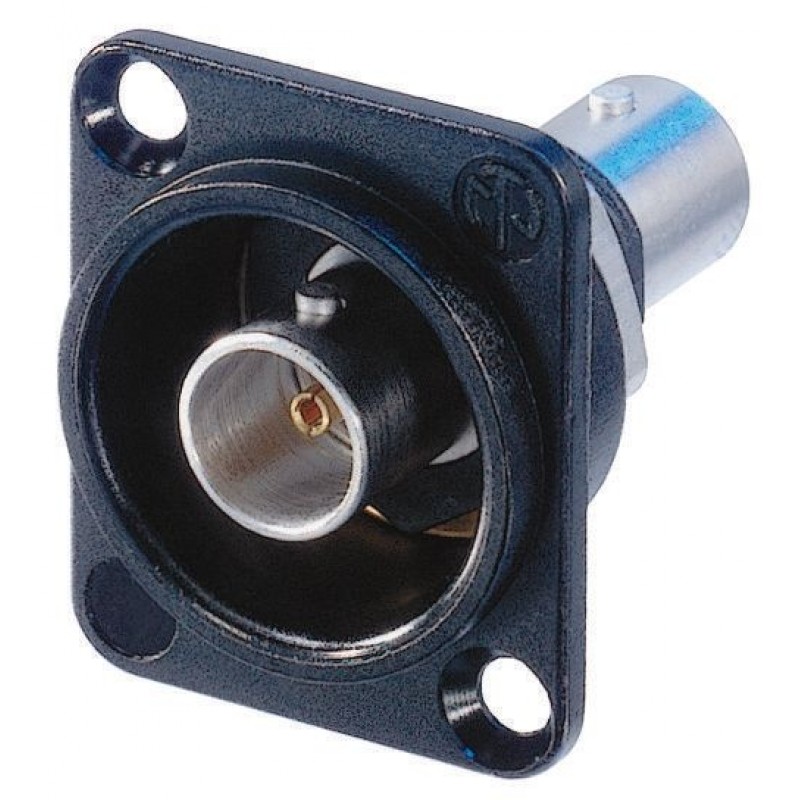

Neutrik Isolated BNC chassis connectors, feedthrough in black D-shape housing.
- Gold plated cage type center contact
- True 75 Ω design meets the stringent HD requirements
- Isolated panel mount (solves potential grounding problems and prevents common-mode influence with other connections conducted over the same panel ground potential)
- Standard D-shape housing - provides flush mounting and protection from demage
- Color coding possible
New cage type contact:
- Closed contact design - extremely robust
- Gold plated cage type clip - best possible shielding and lowest contact resistance
Specifications:
Product
- Title: NBB75DFIB
- Connection Type: BNC 75 Ω
- Gender: female
Electrical
- Signal Type: HD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV
- Contact resistance: ≤ 3 mΩ (inner)
- Contact resistance: ≤ 2 mΩ (outer)
- Dielectric strength: 1,5 kVdc
- Impedance: 75 Ω
- Insulation resistance: > 5 GΩ
- Rated voltage: <50 V
VSWR:
- ≤1.03/>37 dB up to 1 GHz
- ≤1.05/>32 dB up to 2 GHz
- ≤1.08/>28 dB up to 3 Ghz
Mechanical
- Insertion force: < 25 N
- Lifetime: > 1000 mating cycles
- Locking device: Bayonett
- Mounting direction: Front mounting
- Chassis shape: D
Material
- Contacts: Brass (CuZn39Pb3), 0.2 µm AuCo (Center contact)
- Insert: PTFE
- Shell: Polyacetal (POM) (Insulation Sheell)
- Shell plating: Optalloy®
- D-Shape housing: Zinc diecast (ZnAl4Cu1) gal Ni plating
Environmental
- Temperature range: -30 °C to +85 °C
