NBNC75BLP9 BNC CONNECTOR CRIMP CONTACT VOOR KABEL 4-8MM NEUTRIK

Omschrijving

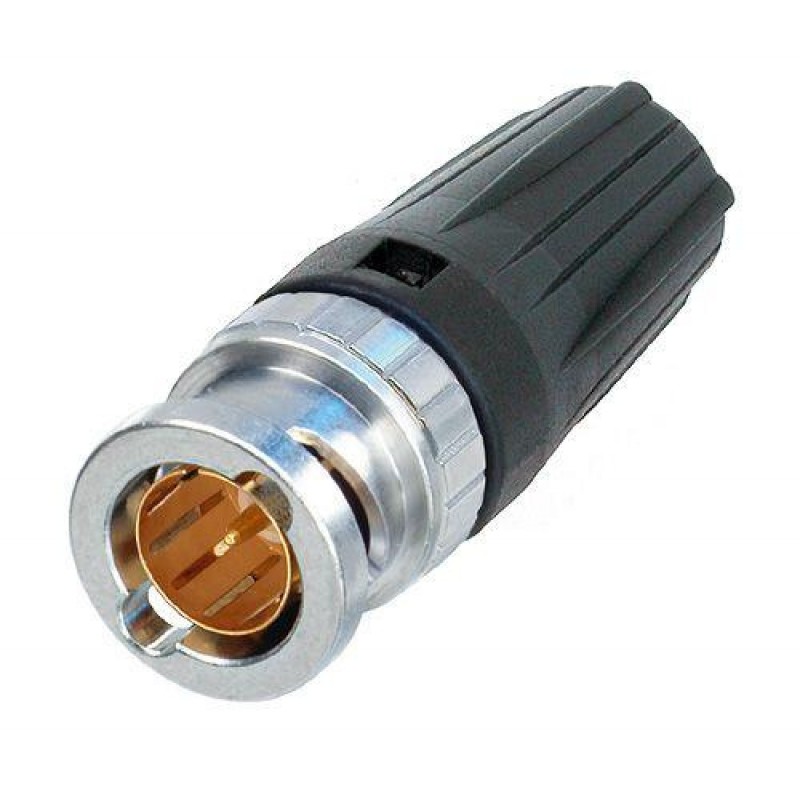

Neutrik rearTWIST HD BNC cable connector.

• “rearTWIST Principle” locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507)
• Ideal for recessed bulkheads where access to the “head” of the connector might be an issue. These connectors turn from the back and not the front.
• True 75 Ω design meets the stringent HDTV / DVD requirements

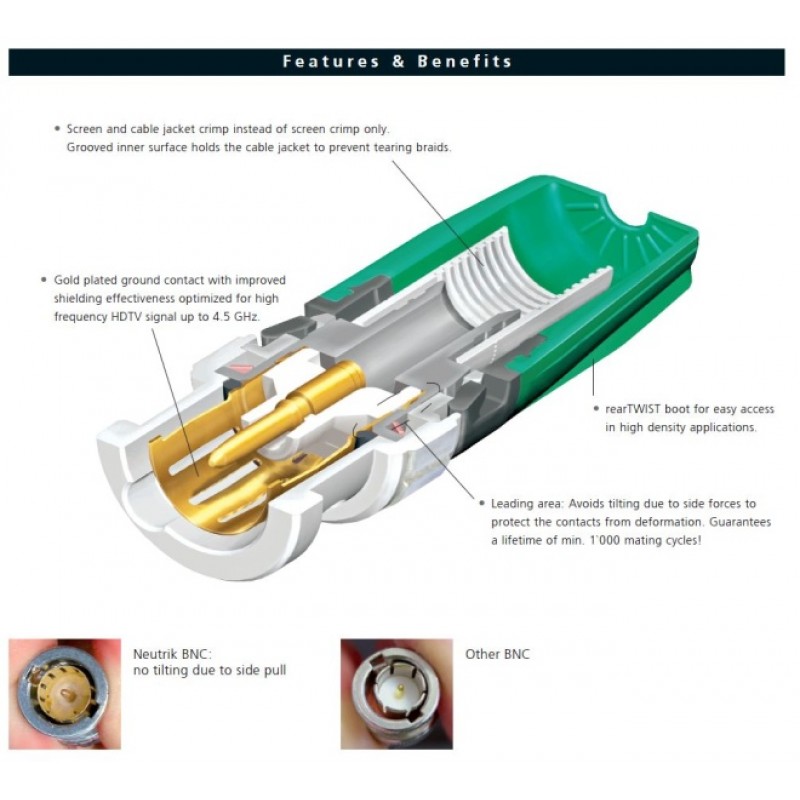

• Leading area: Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles!
• Snug-fit center pin insert provides tactile feedback
• Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies
• Excellent cable protection and retention
• Precise Swiss machined brass parts for outstanding durability
• Accessories include color coded boots in 10 standard colors, crimp tool and dies
• Suitable cables: Argosy Image 720, Belden 1505A (ANH), Belden 8241F, CAE HD08370LSZH, Canare L-4CFB, Clark Wire CD7559-0, Clark Wire CD7559F-0, CommScope 5565, Draka 0.8/3.7 AF, Draka 755-801, Draka 755-803, Draka 755-804, Gepco VPM2000, Proel HPC 810, Suhner S0426, Sommer 600-0451, Sommer 600-162(F), Percon VK6

Specifications:
Product

• Title: NBNC75BLP9
• Connection Type: BNC 75 Ω
• Gender: male

Electrical

• Contact resistance: ≤ 3 mΩ (inner)
• Contact resistance: ≤ 2 mΩ (outer)
• Dielectric strength: 1,5 kVdc
• Impedance: 75 Ω
• Insulation resistance: > 5 GΩ
• Rated voltage: <50 V

VSWR

• ≤1.050/>32 dB up to 1 GHz
• ≤1.065/>30 dB up to 2 GHz
• ≤1.100/>26 dB up to 3 Ghz

Mechanical

• Cable O.D.: 6.3 mm
• Cable retention: > 30 N (Center)
• Crimp size: 6,47 Hex crimp (shield) acc. IEC 60803 (die designation E)
• Crimp size (pin): 1,6 Square crimp (pin) acc. IEC 60803 (die designation 2)
• Insertion force: < 25 N
• Lifetime: > 1000 mating cycles
• Locking device: Bayonett
• Cable anchoring: Jacket crimping

Material

• Contacts: Brass (CuZn35Pb2), 0.2 µm AuCo (Center contact)
• Insert: PTFE
• Shell: Brass (CuZn39Pb3)
• Shell plating: Optalloy®
