NC3FP1-B

Description

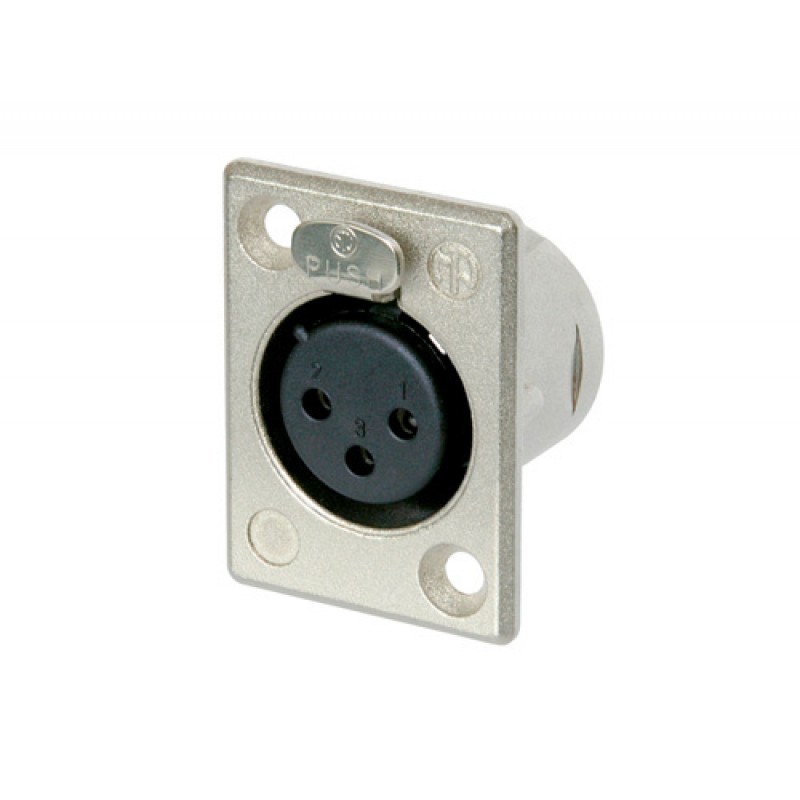

Neutrik 3 pole female XLR connector.

• Smallest available hard wiring receptacles with large solder cups
• Short female receptacle
• Compatible with switchcraft D*M, D*F; Cannon XLB2*31, XLB2*32

Specifications:
Product

• Title: NC3FP-1
• Connection Type: XLR
• Gender: female

Electrical

• Capacitance between contacts: ≤ 4 pF
• Contact resistance: ≤ 5 mΩ
• Dielectric strength: 1,5 kVdc
• Insulation resistance: > 10 GΩ (initial)
• Rated current per contact: 16 A
• Rated voltage: < 50 V

Mechanical

• Insertion force: ≤ 20 N
• Withdrawal force: ≤ 20 N
• Lifetime: > 1000 mating cycles
• Wiring: Solder contacts
• Locking device: Latch lock
• Mounting direction: Front mounting
• Chassis shape: P

Material

• Contact plating: 2 µm Ag over 2 µm Ni
• Contacts: Bronze (CuSn6)
• Insert: Polyamide (PA 6.6 30 % GR)
• Locking element: Steel Ck67
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell plating: Nickel

Environmental

• Flammability: UL 94 HB
• Standard complianceIEC 61076-2-103
• Protection classIP 40
• SolderabilityComplies with IEC 68-2-20
• Temperature range-30 °C to +80 °C

Downloads:

• Product Guide - Section XLR
• Drawing NC3FP-1
