NC3MD-LX 3P XLR CHASSIS MANNELIJK NEUTRIK

Omschrijving

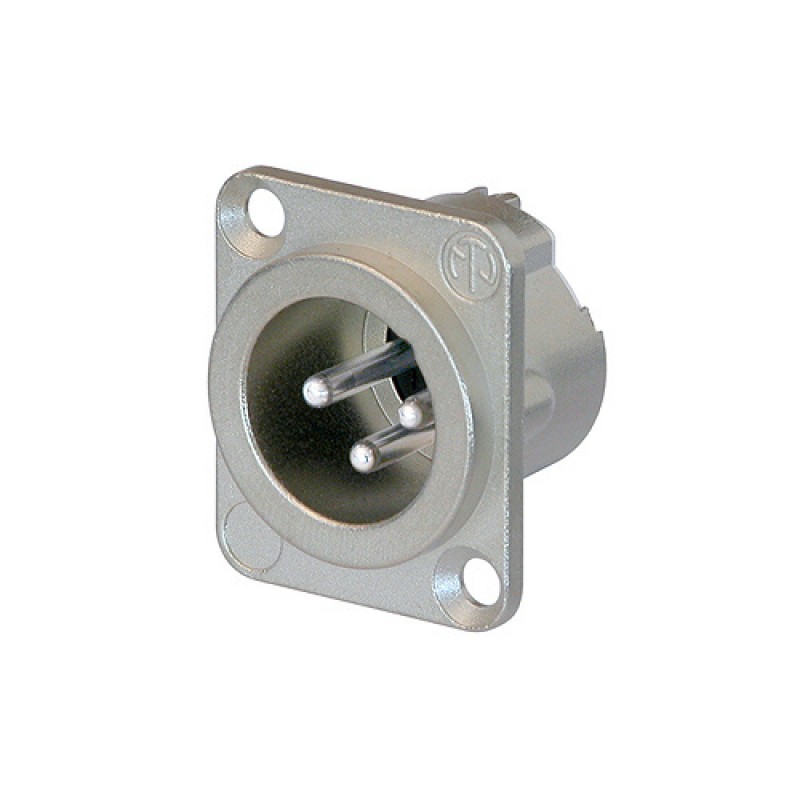

Neutrik 3 pole male XLR chassis connector.

• Contacts: Silver

• Housing: Nickel

• All metal housing offers best overall RF protection and electromagnetic shielding

• Duplex ground contact for excellent contact integrity between chassis and cable connector

• Male connector's retention bar replaces plastic design with all metal version improving pull-out force

• Larger Solder (cups) contacts for easier termination

• Optional connection to easily join pin1 to chassis ground

• D-style housing provides installation compatibility with industry standard D mounting dimensions

Specifrications:
Product

• Title: NC3MD-LX

• Connection Type: XLR

• Gender: male

Electrical

• Capacitance between contacts: ≤ 4 pF

• Contact resistance: ≤ 5 mΩ

• Dielectric strength: 1,5 kVdc

• Insulation resistance: > 10 GΩ (initial)

• Rated current per contact: 16 A

• Rated voltage: < 50 V

Mechanical

• Insertion force: ≤ 20 N

• Withdrawal force: ≤ 20 N

• Lifetime: > 1000 mating cycles

• Wiresize: max. 2.5 mm²

• Wiresize: max. 14 AWG

• Wiring: Solder contacts

• Locking device: Latch lock

• Chassis shape: D

Material

• Contact plating: 2 µm Ag over 2 µm Ni

• Contacts: Brass (CuZn35Pb2)

• Insert: Polyamide (PA 6.6 30 % GR)

• Locking element: Steel Ck67

• Shell: Zinc diecast (ZnAl4Cu1)

• Shell plating: Nickel

Environmental

• Flammability: UL 94 HB

• Standard compliance: IEC 61076-2-103

• Protection class: IP 40

• Solderability: Complies with IEC 68-2-20

• Temperature range: -30 °C to +80 °C

Downloads:

• Product Guide - Section XLR

• UL Certificate of Compliance

• Drawing NC3MD-LX
