NC3MRX

  • S2 ref: NC3MRX
  • 10,83
  • 9,75

    Incl. BTW
  • Snel leverbaar

* Verplichte velden

  Verlanglijst   Product vergelijk

Omschrijving

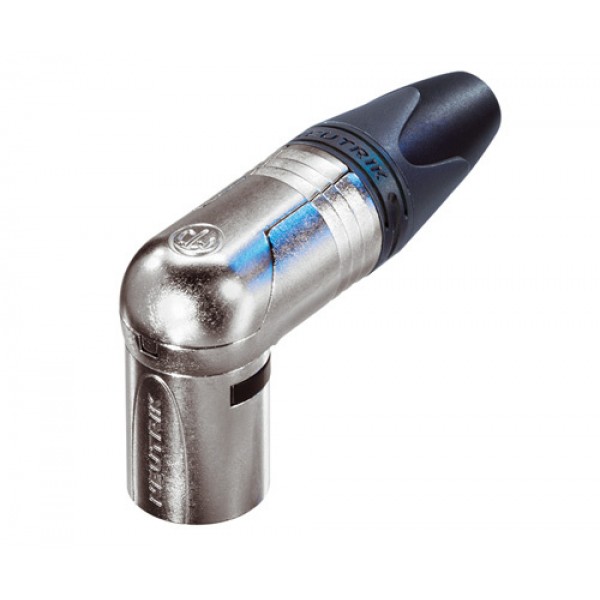

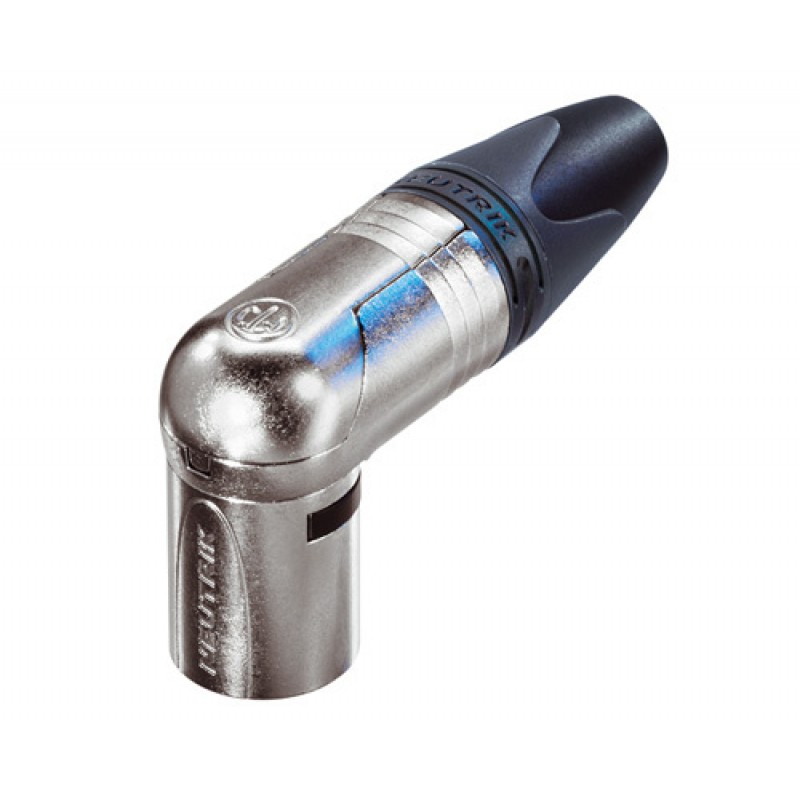

Neutrik 3 pole right angle male XLR cable connector.

  • Contacts: Silver
  • Extra slim right-angle connector
  • 7 selectable cable outlet positions
  • Male connector with improved locking recess without "window", more stringent housing increases durability
  • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
  • Boot with polyurethane gland gives high protection to cable bending stresses
  • Coloured rings and boots available for coding or identification
  • Sleek and ergonomic design - valuable and handy
  • Branded with unique hologram - guarantees genuine and authentic Neutrik product

Specifications:
Product

  • Title: NC3MRX
  • Connection Type: XLR
  • Gender: male

Electrical

  • Capacitance between contacts: ≤ 4 pF
  • Contact resistance: ≤ 3 mΩ
  • Dielectric strength: 1,5 kVdc
  • Insulation resistance: > 2 GΩ (initial)
  • Rated current per contact: 16 A
  • Rated voltage: < 50 V

Mechanical

  • Cable O.D.: 3.5 - 8.0 mm
  • Insertion force: ≤ 20 N
  • Withdrawal force: ≤ 20 N
  • Lifetime: > 1000 mating cycles
  • Wiresize: max. 2.5 mm²
  • Wiresize: max. 14 AWG
  • Wiring: Solder contacts
  • Locking device: Latch lock

Material

  • Boot: Polyurethan
  • Contact plating: 2 µm Ag
  • Contacts: Bronze (CuSn8)
  • Insert: Polyamide (PA 6.6 30 % GR)
  • Locking element: Zinc diecast (ZnAl4Cu1)
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell plating: Nickel
  • Strain relief: Polyacetal (POM)

Environmental

  • Flammability: UL 94 HB
  • Standard compliance: IEC 61076-2-103
  • Protection class: IP 40
  • Solderability: Complies with IEC 68-2-20
  • Temperature range: -30 °C to +80 °C
