NEUTRIK 5P. XLR CHASSIS MALE ZWARTE BEHUIZING/GOUDCONTACT

Description

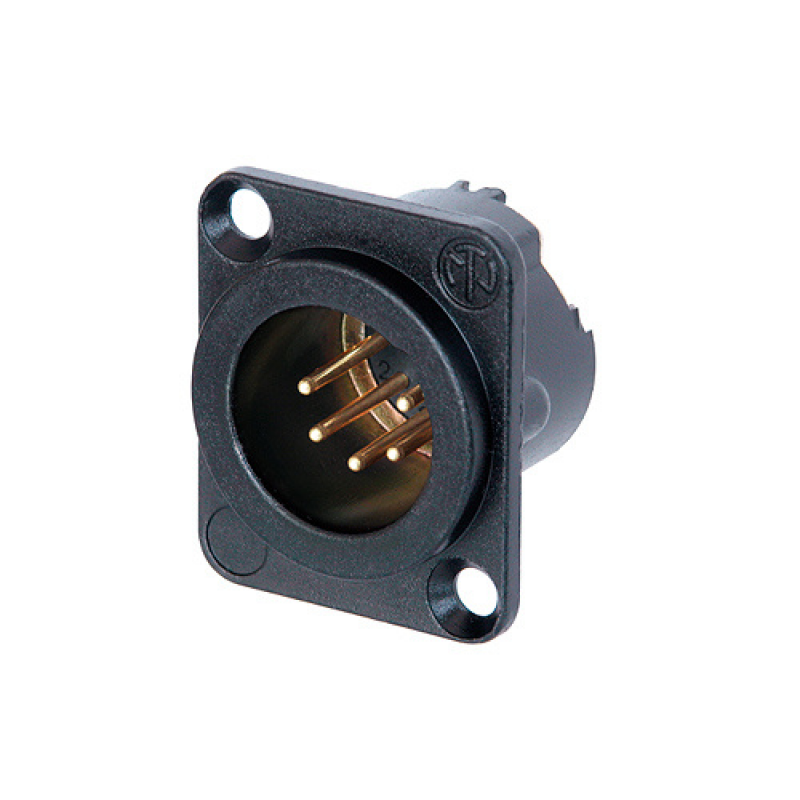

Neutrik 5 pole male XLR chassis connector.

• All metal housing offers best overall RF protection and electromagnetic shielding
• Duplex ground contact for excellent contact integrity between chassis and cable connector
• Male connector's retention bar replaces plastic design with all metal version improving pull-out force
• Larger solder (cups) contacts for easier termination
• Optional connection to easily join pin1 to chassis ground
• D-style housing provides installation compatibility with industry standard D mounting dimensions
• Gold contacts

Specifications:
Product

• Title: NC5MD-LX-B
• Connection Type: XLR
• Gender: male

Electrical

• Capacitance between contacts: ≤ 7 pF
• Contact resistance: ≤ 5 mΩ
• Dielectric strength1,5 kVdc
• Insulation resistance: > 10 GΩ (initial)
• Rated current per contact: 7,5 A
• Rated voltage: < 50 V

Mechanical

• Insertion force: ≤ 20 N
• Withdrawal force: ≤ 20 N
• Lifetime: > 1000 mating cycles
• Wiresize: max. 1.0 mm²
• Wiresize: max. 18 AWG
• Wiring: Solder contacts
• Locking device: Latch lock
• Chassis shape: D

Material

• Contact plating: 0.2 µm Au hard alloy over 2 µm Ni
• Contacts: Brass (CuZn35Pb2)
• Insert: Polyamide (PA 6.6 30 % GR)
• Locking element: Steel Ck67
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell plating: Black chromium

Environmental

• Flammability: UL 94 HB
• Standard compliance: IEC 61076-2-103
• Protection class: IP 40
• Solderability: Complies with IEC 68-2-20
• Temperature range: -30 °C to +80 °C
