NEUTRIK BNC CHASSIS FEMALE D-SIZE

  • S2 ref: NBB75DFI
  • 13.04
  • 11.74

    Incl. VAT
  • We can deliver soon

* Mandatory fields

  Add to Wish List   Compare this Product

Description

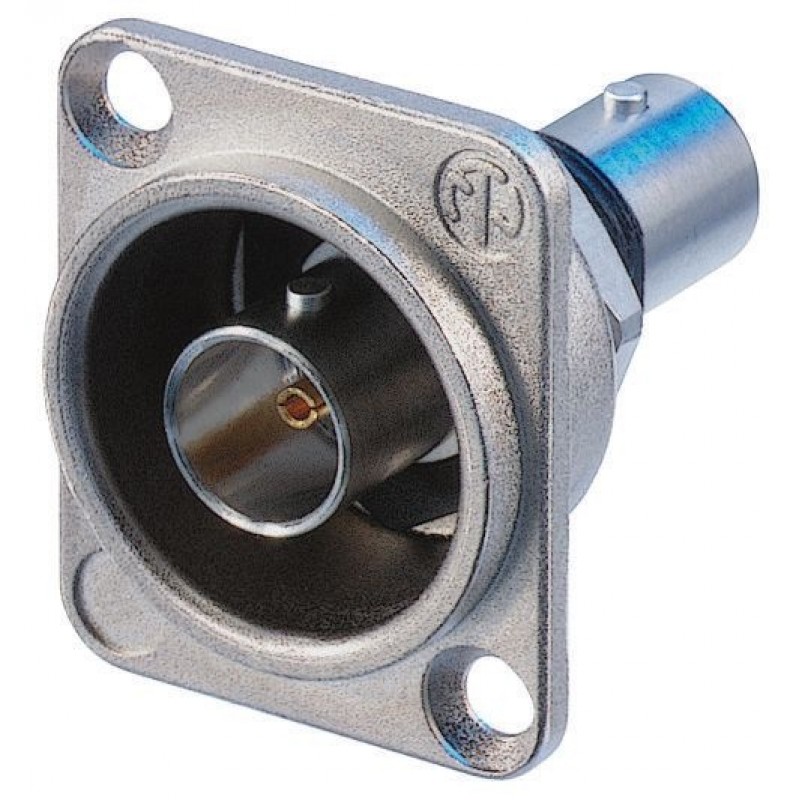

Neutrik Isolated BNC chassis connector, feedthrough in nickel D-shape housing.

  • Gold plated cage type center contact
  • True 75 Ω design meets the stringent HD requirements
  • Isolated panel mount (solves potential grounding problems and prevents common-mode influence with other connections conducted over the same panel ground potential)
  • Standard D-shape housing - provides flush mounting and protection from demage
  • Color coding possible

New cage type contact:

  • Closed contact design - extremely robust
  • Gold plated cage type clip - best possible shielding and lowest contact resistance

Specifications:
Product

  • Title: NBB75DFI
  • Connection Type: BNC 75 Ω
  • Genderfemale

Electrical

  • Signal Type: HD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV
  • Contact resistance: ≤ 3 mΩ (inner)
  • Contact resistance: ≤ 2 mΩ (outer)
  • Dielectric strength: 1,5 kVdc
  • Impedance: 75 Ω
  • Insulation resistance: > 5 GΩ
  • Rated voltage: <50

VVSWR

  • ≤1.03/>37 dB up to 1 GHz
  • ≤1.05/>32 dB up to 2 GHz
  • ≤1.08/>28 dB up to 3 Ghz

Mechanical

  • Insertion force: < 25 N
  • Lifetime: > 1000 mating cycles
  • Locking device: Bayonett
  • Mounting direction: Front mounting
  • Chassis shape: D

Material

  • Contacts: Brass (CuZn39Pb3), 0.2 µm AuCo (Center contact)
  • Insert: PTFE
  • Shell: Polyacetal (POM) (Insulation Sheell)
  • Shell plating: Optalloy®
  • D-Shape housing: Zinc diecast (ZnAl4Cu1) gal Ni plating

Environmental

  • Temperature range: -30 °C to +85 °C
