NEUTRIK MALE D-SIZE PRINT MOUNT NAAR ONDER

Omschrijving

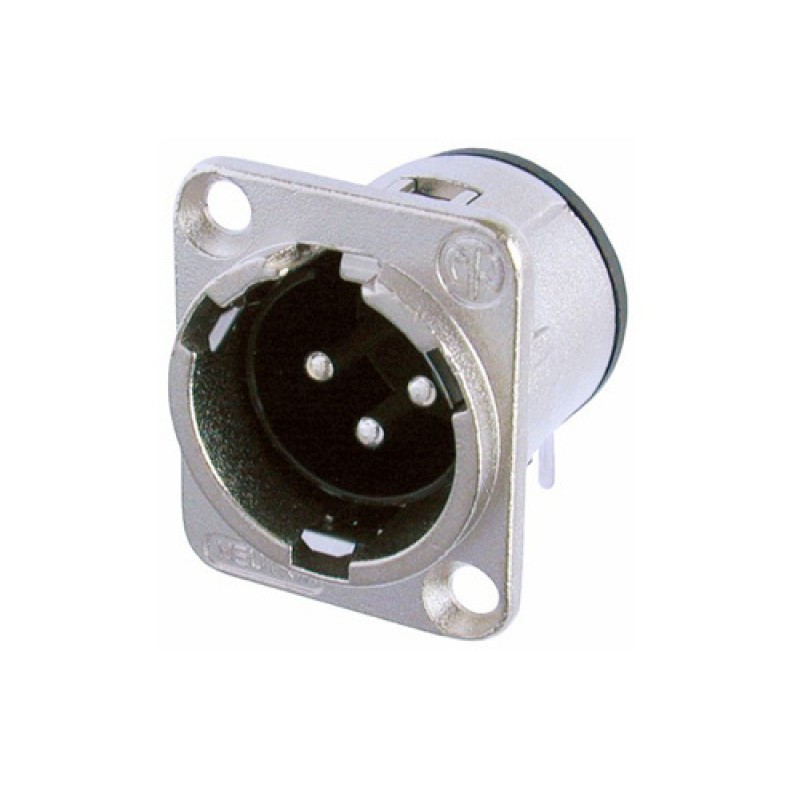

Neutrik 3 pole male XLR chassis connector.

• Horizontal PCB mount
• Housing: Nickel
• Contacts: Silver
• D-shape metal shell
• Optimal RF protection using 3 shield contacts
• Insert is removable from rear of connector and locked into place by internal latch - permitting assembling and testing of pcb before assembling into housing
• Front or rear panel mount

Specifications:
Product

• Title: NC3MD-H
• Connection Type: XLR
• Gender: male

Electrical

• Capacitance between contacts: ≤ 4 pF
• Contact resistance: ≤ 5 mΩ
• Dielectric strength: 1,5 kVdc
• Insulation resistance: > 10 GΩ (initial)
• Rated current per contact: 6 A
• Rated voltage: < 50 V

Mechanical

• Insertion force: ≤ 20 N
• Withdrawal force: ≤ 20 N
• Lifetime: > 1000 mating cycles
• Wiring: Horizontal PCB mount
• Locking device: Latch lock
• Mounting direction: Rear mounting
• Chassis shape: D

Material

• Contact plating: 2 µm Ag over 2 µm Ni
• Contacts: Brass (CuZn35Pb2)
• Insert: Polyamide (PA 6.6 30 % GR)
• Locking element: Steel Ck67
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell plating: Nickel

Environmental

• Approvals: UL
• Flammability: UL 94 HB
• Standard compliance: IEC 61076-2-103
• Protection class: IP 40
• Solderability: Complies with IEC 68-2-20
• Temperature range: -30 °C to +80 °C
