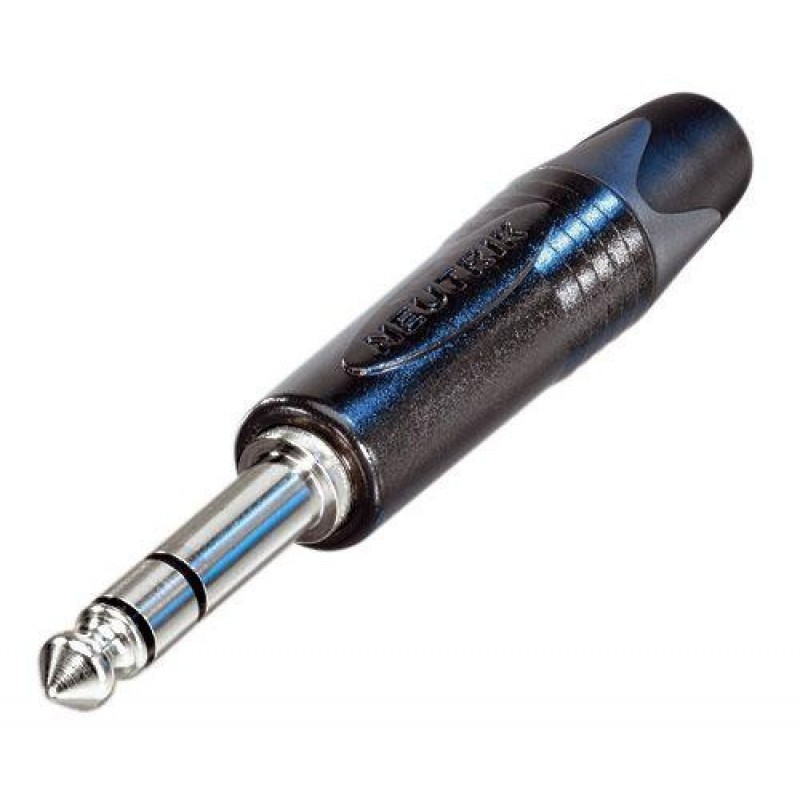

NP3XBAG JACK PLUG STEREO 6.3MM ZWARTE BEHUIZING

Omschrijving

Neutrik 3 pole 1/4" professional phone plug, nickel contacts, black shell.

• The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88 mm jack pitch).
• The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip.
• The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.

Features:

• Extra slim 1/4" plug for highest packing density
• Robust diecast shell in stylish design
• Proven chuck type strain relief for reliable cable retention
• Sleek design for best handling convenience
• Precision machined one-piece contacts - avoid hook up of tip contact

Specifications:
Product

• Title: NP3X-BAG
• Connection Type: Plug
• Gender: male

Electrical

• Contact resistance: depends on mating connector mΩ
• Dielectric strength: 1 kVdc
• Insulation resistance: > 2 GΩ (initial)
• Rated current per contact: depends on mating connector A
• Rated voltage: < 50 V

Mechanical

• Cable O.D.: 4 - 7 mm
• Lifetime: > 1000 mating cycles
• Wiresize: 1 mm²
• Wiresize: 18 AWG
• Wiring: Solder contacts

Material

• Bushing: Polyacetal (POM) + PU
• Contact plating: 2 µm Ni (Su)
• Contacts: Brass (CuZn39Pb3)
• Insert: Polyamide (PA 6.6 30 % GR)
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell plating: Black chromium
• Strain relief: Polyacetal (POM)

Environmental

• Standard compliance: IEC 60603-11 / EIA RS-453
• Solderability: Complies with IEC 68-2-20
• Temperature range: -20 °C to +65 °C

Downloads:

• Assambly Instructions
• Product Guide
• Drawing
