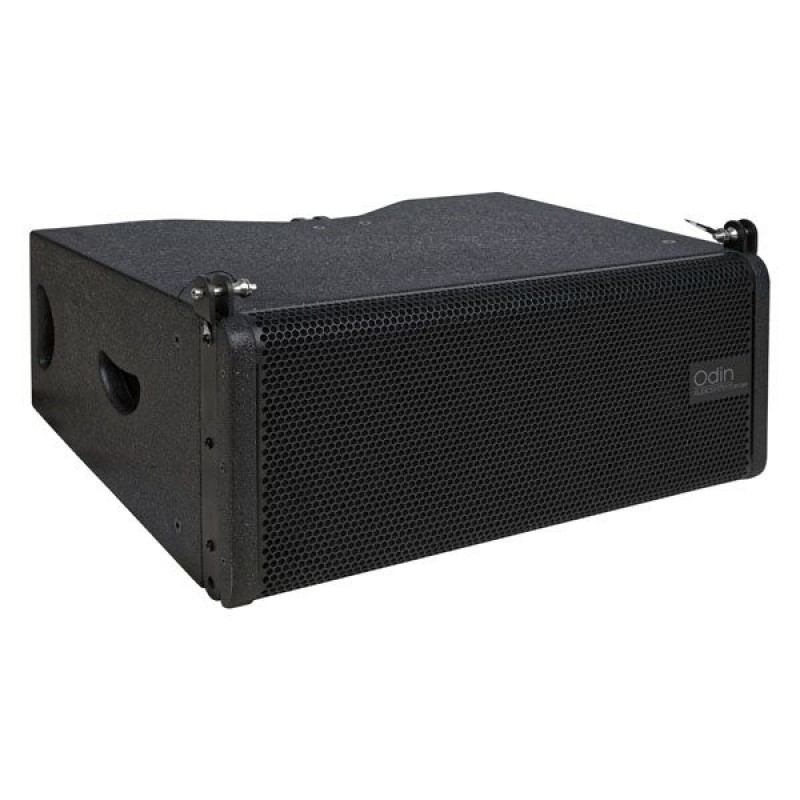

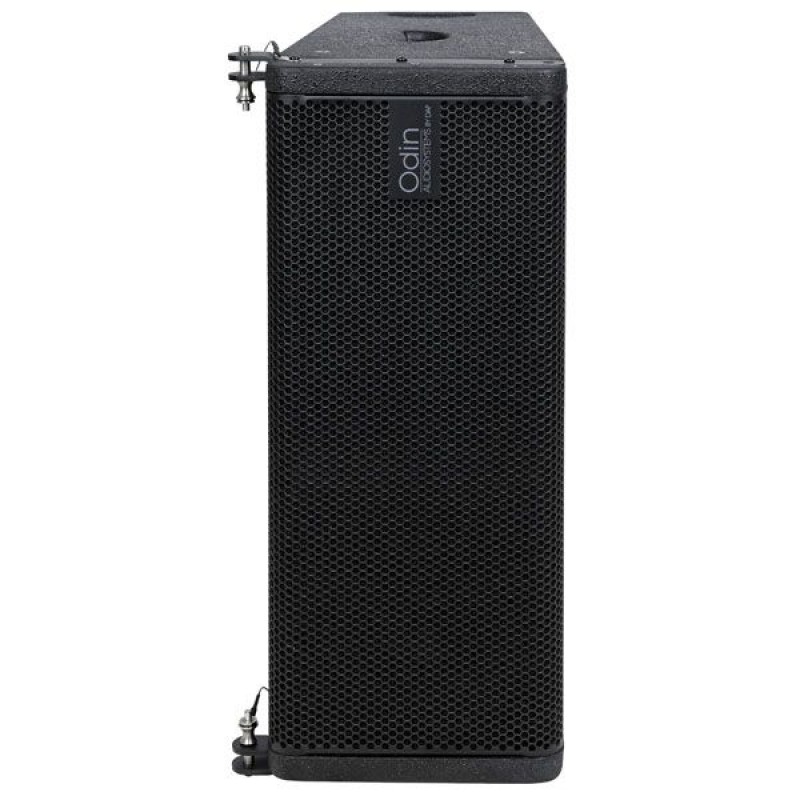

ODIN T-8A DAP 2-way Active Line-Array Module
- S2 ref: D3900
- 2,334.01
1,928.99
Incl. VAT- We can deliver soon
Add to Wish List
Compare this Product
- 800 W continue, Bi-AMP
- MAX SPL @ 1 m 129 dB
- 2x 8 inch + 2x 1-inch
Description
Video Downloads
Reviews (Trustpilot)
Description
ODIN T-8A DAP 2-WAY FULL RANGE ACTIVE LINE-ARRAY 80W RMS
The Odin Audio Systems line-array was developed in the Netherlands, by professionals and for professionals. Nevertheless, the needs of the less experienced users have been taken into account as well. The software controlled, user-definable built-in presets offer out-of-the-box possibilities and open the door for progression to a professional and customized level.
The enclosure was designed to achieve the best possible acoustic resonance in the low/mid and mid frequencies, resulting in an optimal sound dispersal, even at lower volume levels. Fully equipped with Celestion® speakers, Odin Audio Systems offers loads of character, great features and scalability at an unprecedented price level
Commitment to dual quality was the first priority in designing and engineering the Odin 2-way full range, active array T-8A Satellite. The sound-quality is very important. That is why the T-8A is equipped with 2x8” Neodymium MID Woofers and 2x1” Celestion Neodymium compression drivers. A specially designed Waveguide and DSP optimized amplification make sure that the T-8A delivers. Equally important is the enclosure itself. High grade materials to keep the unit safe during handling, transportation and in the field. No concessions have been made to develop the perfect enclosure with strong 18mm birch plywood housing and an easy to handle 3-point suspension system.
Features:
-
Celestion components inside
-
Waveguide for optimized low-mid frequency directivity
-
Single user 3-point suspension system
-
DSP optimized Amplification ensures highest reliability
-
Multivoltage Power supply with active PFC
Technical Specifications:
|
System
|
2-way full range, Active Array Element
|
|---|---|
|
AMP Power
|
800 W Continuous, Bi-AMP(Class D-650 W LF, Class AB-150 W HF), 3200W Peak
|
|
Speaker
|
2x 1” Celestion Neodymium Compression Driver,1.75” Voice Coil, 80W RMS, 320W Peak
|
|
|
2x 8” Celestion Neodymium MID Woofer, Water Resistant Coating, 2“ Voice Coil, 400W-RMS/1600W-Peak
|
|
Frequency Response (+/-3dB)
|
80 Hz - 19 kHz
|
|
MAX SPL @ 1m
|
129dB
|
|
Crossover frequency
|
1,6 KHz
|
|
Dispersion(-6dB)
|
100° Horizontal / 10° Vertical
|
|
Cooling
|
Passive Cooling + forced cooling inside
|
|

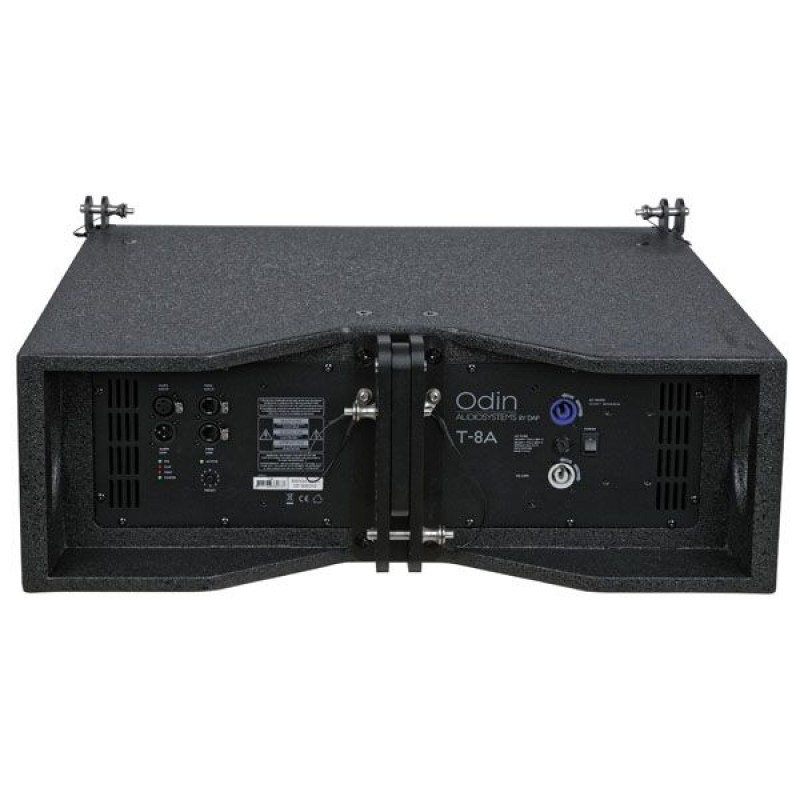

Audio Connector
|
XLR In- and output
|
|
Data Connector
|
RJ45 Date In & Link Cascading Connector
|
|
External Controls
|
9 Fixed Preset + 1 Editable preset, Power Switch with LED indicators for Clip / SIG / PROT
|
|
DSP Processor
|
32 bit , 24bit/48kHz Audio conversion AD/DA
|
|
Electronic Protections
|
Thermal / Convection-Fan / Overload / Digital Limiter / Compressor
|
|
Mains Connector
|
Neutrik PowerCON Connector In & Out
|
|
Power Supply
|
100 ~ 240VAC, 50Hz/60Hz
|
|
Power Consumption
|
1100W
|
|
Enclosure Construction
|
18mm Birch Plywood, Resistant Black Paint, 1.5T Metal Grill with Foam, Two Handles on Each Side, Water Resistant Coating
|
|
Mounting
|
3-point Suspension, Horizontal Trapezoid 2 x 6.5°
|
|
Dimensions (LxWxH)
|
635 x 468 x 300 mm
|
|
Net Weight
|
22.5 Kg / 49.5 Ibs
|
|
Optional Accessories
|
Flybar
|
|
|
Polemount Adaptor
|
|
|
Ground stacking feet
|
|
|
Flying Pin
|
|
|
DSP Network Interface
|
