OPERA 12 Db Technologies Active Speaker

Description

OPERA 12 Db Technologies

Exceptional power and a unique acoustic design combine in order to deliver a vigorous yet accurate audio performance, successfully adaptable to both playback and live music applications.

With the new OPERA series, dBTechnologies succeded once again in packing leading edge DSP processing, advanced design features and user friendliness in an unrivalled cabinet in its price range.
Exceptional power and a unique acoustic design combine in order to deliver a vigorous yet pristine sound, successfully adaptable to both playback and live music applications.
Opera’s asymmetrical horn has been completely redesigned in order to obtain both an asymetrical vertical dispersion and a double horizontal dispersion, ensuring an optimized throw pattern.
The system is equipped with a powerful Class D 600 W amplifier featuring advanced DSP processing where FIR filters allow the systems to deliver a coherent audio performance, uniform and crystal-clear from every listening position.

Featuring:

• 1200 w peak power
• Newly designed asymmetrical horn
• Advanced DSP with FIR processing
• 2 input channels (mic-line/mic-instr)
• Selectable output channel (link ch1/mix ch 1+2)
• 8 EQ presets

Download

Manual.pdf

Specificaties

Technical Data

• Speaker Type2-Way Active Speaker

Acoustical data

• Frequency Response [-10dB]52 - 20.000 Hz
• Frequency Response [- 3dB]67 - 19.600 Hz
• Max SPL129 dB
• HF1" Exit, 1.4 v.c.
• Type HFCompression driver
• Horizontal Directivity 100° (85° up/120° down)
• Vertical Directivity85° (+ 25°/-60°)
• HornAsymmetrical Horn
• LF12", 2" v.c.

Amplifier

• Amp TechnologyAmp SMPS Power supply dual range
• Amp ClassClass D
• RMS Power 600 W
• Peak Power1200 W

Processor

• ControllerDSP 56 bit
• AD/DA Converter24 bit/48 KHz
• System PresetsRotary Encoder (8 Presets)
• CrossOver Frequency 2000 Hz
• LimiterPeak, RMS, Thermal
• Advanced DSP Functions Linear Phase FIR Filters

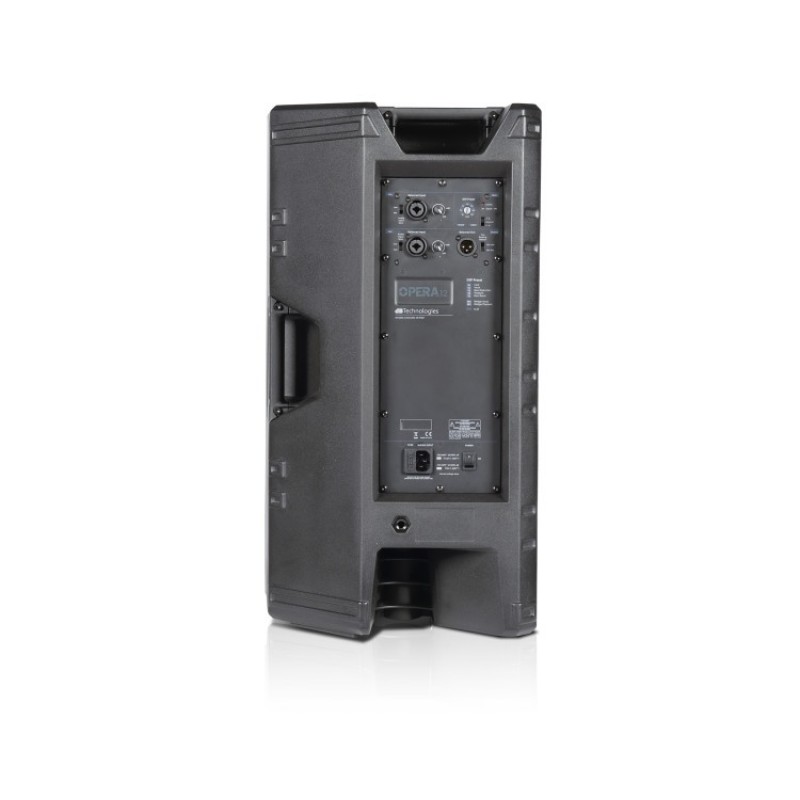

Input

• Signal Input
  • 1xCombo (XLR/Jack 6.3 mm) MIC/Line
  • 1xCombo (XLR/Jack 6.3 mm) MIC/Inst
• Signal Output
  • 1x XLR Male (CH1 Link/Mix OUT)
  • Selectable

Mechanics

• HousingPolyporpylene PP
• Grille Full grille

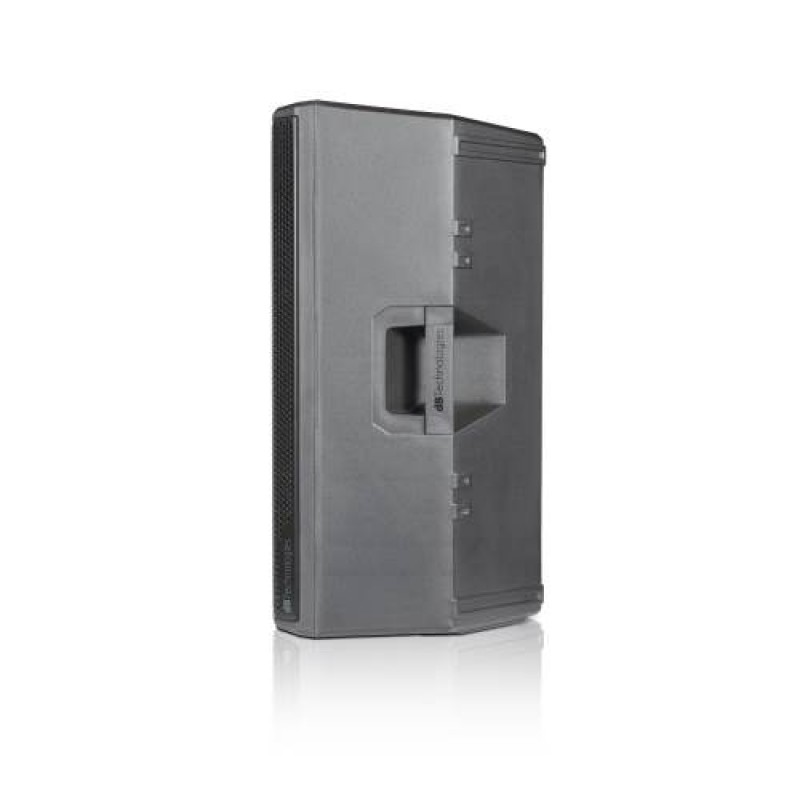

• Handles 1 on left Side, 1 on Top
• Rigging Points 2XM10 on Top + 1x M10 on Back
• Pole Mount D36 mm

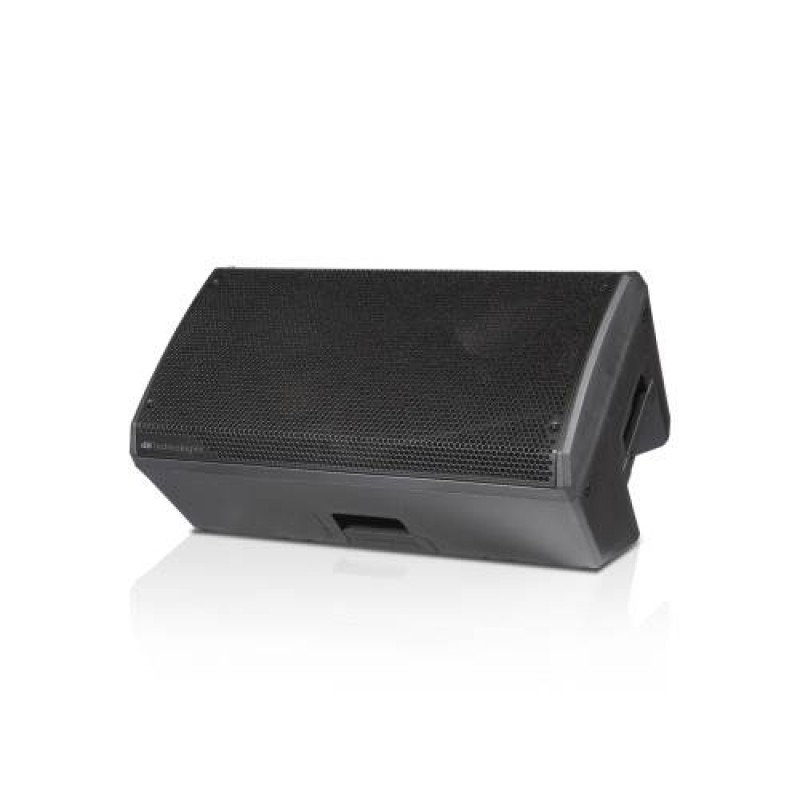

• Angles up Monitor use 45°
• Width350 mm (13.78 in)
• Height642 mm (25.28 in)
• Depth349 mm (13.74 in)
• Weight14.3 kg (31.53 lbs)
