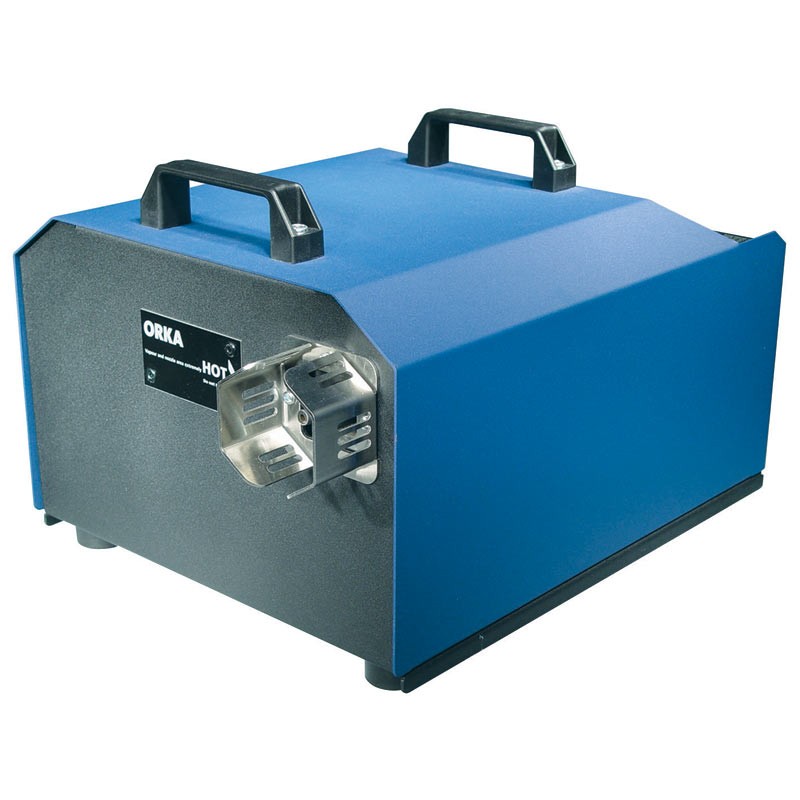

ORKA Look Solutions 9kW Fogger

Description

At the moment, the ORKA is the most powerful fog generator available on the market that is produced as a serial product. It can be used wherever a high quantity of fog is needed in a very short time. Due to its enormous power and the strong output very large halls and even stadiums can be filled with fog. The ORKA is the perfect machine for Events, Concerts, Special effects, Theme parks, large TV- and Film-Studios and for Fire brigades or Disaster control examinations. The compact dimensions and the robust housing of the machine make it suitable for touring use.

FEATURES:

Control panel:

The control panel with LED-display, simple symbols allow for easy operation. It also protects the control buttons against dirt.

Finest adjustments of the output:

Digital technology makes fine adjustment of the pump possible. In steps of 1% the output can be adjusted from 0 - 99%. Thus, any desired effect from a tiny fog-cloud to the thickest fog can be produced. This enables the ORKA to be used in both small and large locations.

DMX 512 as standard:

• The ORKA can be controlled via DMX 512. The connection is done with 5pin-XLR-plugs.
• very powerful Output,powerful 9 kW
• Made in Germany
• The DMX start address can be adjusted and saved via the control panel.
• If an external fan is connected to the machine it can be controlled separately via DMX as well and can be used as a wind machine.
• The machine can also be controlled with analog (0 - 10 V) via a lighting desk or via XLR-remote (not included). This connection is done with 3pin-XLR- plugs.
• A stand-alone-mode is also possible. The adjustments are done directly at the machine. A short press at the start button makes the machine run. Therefore a permanent pressing of the start button is unnecessary.

Internal timer:

With the internal timer the fog time can be exactly adjusted in seconds, the wait time in minutes and the output in %.

Connector for external fan:

An external fan with max. 800 watts can be connected to the ORKA.

TECHNICAL INFORMATION:

• Procedure: vaporizing fog machine
• Power requirement: 9000 Watt
• Voltage: 3x230 V with neutral 50 Hz
• Warm up time: approx. 15 min.
• Fluid consumption at 100% output: 500 ml/min.
• Fog output: adjustable in 99 steps
• Output projection: approx. 30 m
• Fogging time: at 100% output at < 40% output, 2.5 min. continuous output
• external Fan: max. 800 Watt integriated capacitor
• Air quantity: adjustable in 99 steps
• Control: DMX 512, 0 – 10 V analog, Timer, Stand alone, Radio remote (optional)
• Temperature control: Microprocessor two thermocouples
• Overheating protection: Heater block/Thermostat Pump/Thermal switch
• Dimensions (L x W x H) without tank housing: 46.2 x 34 x 28.5 cm
• Weight: 30 kg
