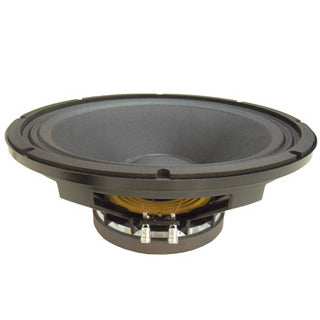

15MI100 MID FREQUENCY TRANSDUCER:  MI100 Series

Features:

• Very high efficiency (4,3%)
• High sensitivity: 100 dB (1W / 1m)
• FEA optimized magnetic circuit.
• Extremely linear frequency response.
• Low harmonic distortion.
• Large magnetic assembly to provide efficient heat dissipation.
• Designed for high quality mid-frequency reproduction.

Specifications:

• Nominal diameter: 380 mm 15 in
• Nominal impedance: 8 ohm
• Minimum impedance: 6.6 ohm
• Power capacity: 450 W AES
• Program power : 900 W
• Sensitivity: 100 dB 1 W @ 1 m @ ZN
• Frequency range: 40-5000 Hz
• Voice coil diameter: 77 mm 3 in
• BL factor: 19.2 N/A
• Moving mass: 0.077 kg
• Winding length: 13.7 mm
• Air gap height: 10 mm
• Xdamage pp: 24 mm
