DPR942

4-Post 19" open-frame rack - 42 Units - 550~1015 mm depth

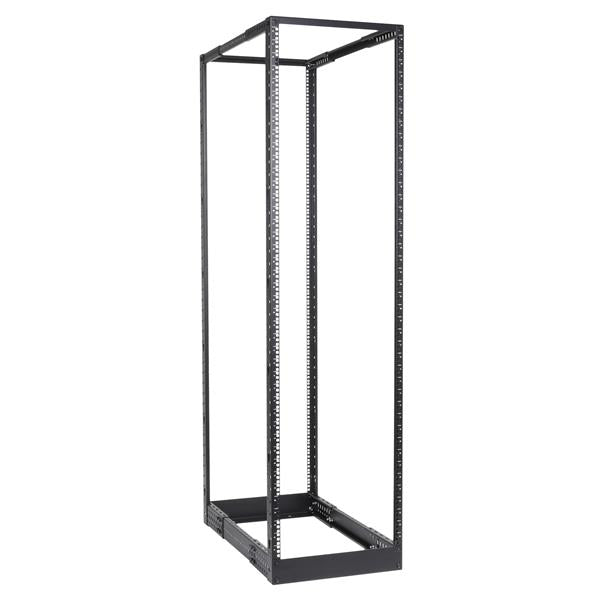

The DPR942 is a professional and solid constructed 4-post open-frame rack for 19” equipment compliant to ANSI/EIA RS-310D, DIN41491 and IEC60297 standards. It offers a sturdy and low-cost solution, suitable for installing up to 42 units of 19” equipment. The open frame construction is made of solid steel and finished in a black (RAL9004) powder coating with fine structure . Adjustable vertical supports allow in depth adjustment within a range of 56 to 102 cm. Delivery in a flat-down package allows easy transportation of the rack to any installation location, while the simple structure allows assembly by a single person in a record-breaking time.

Product highlights

• Sturdy & low cost solution

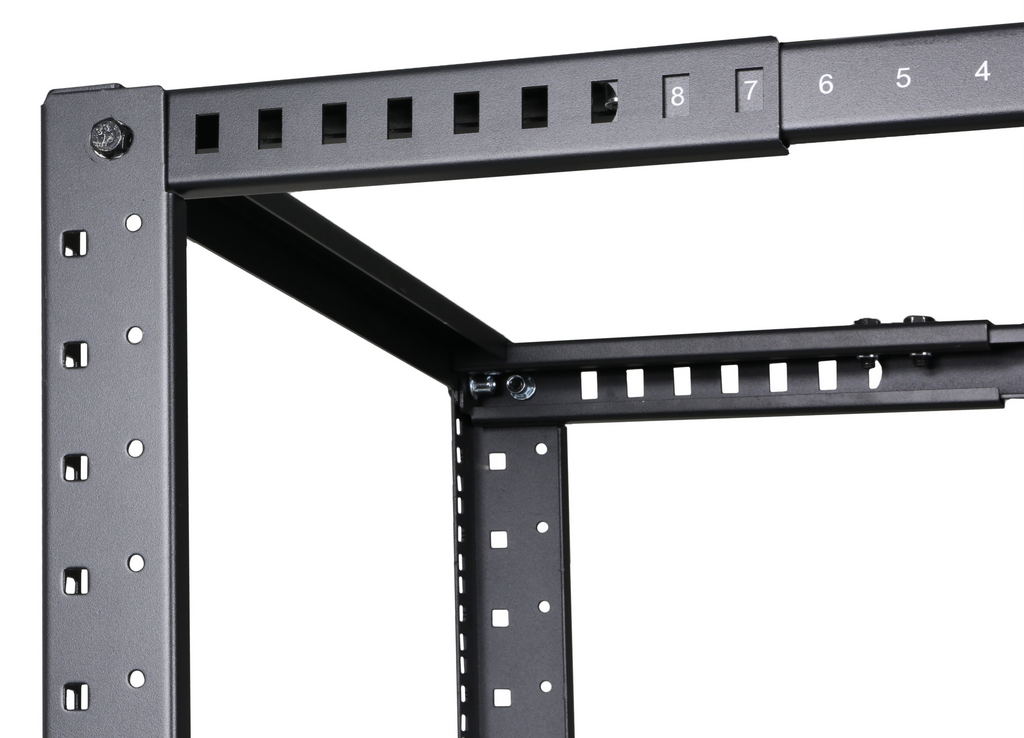

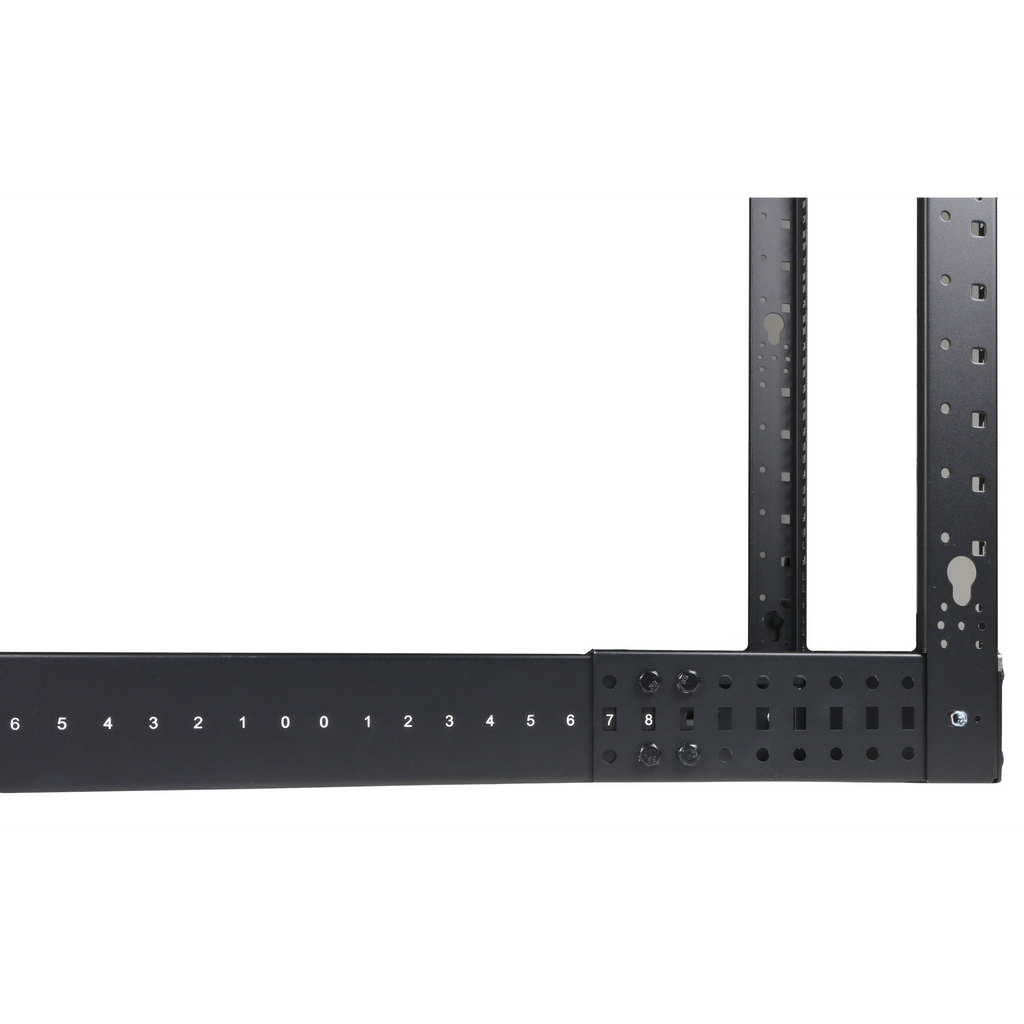

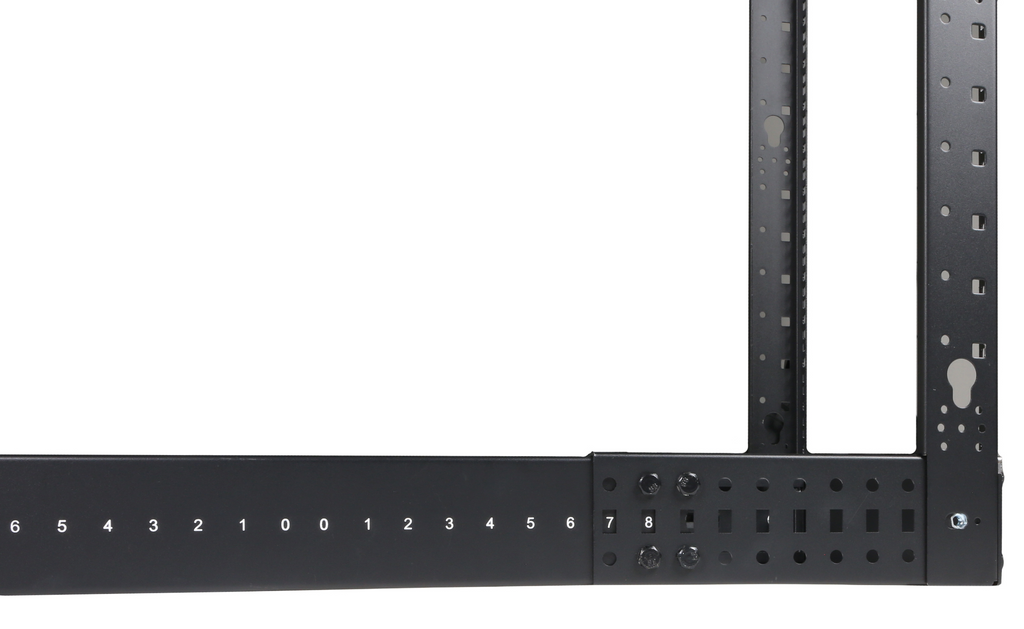

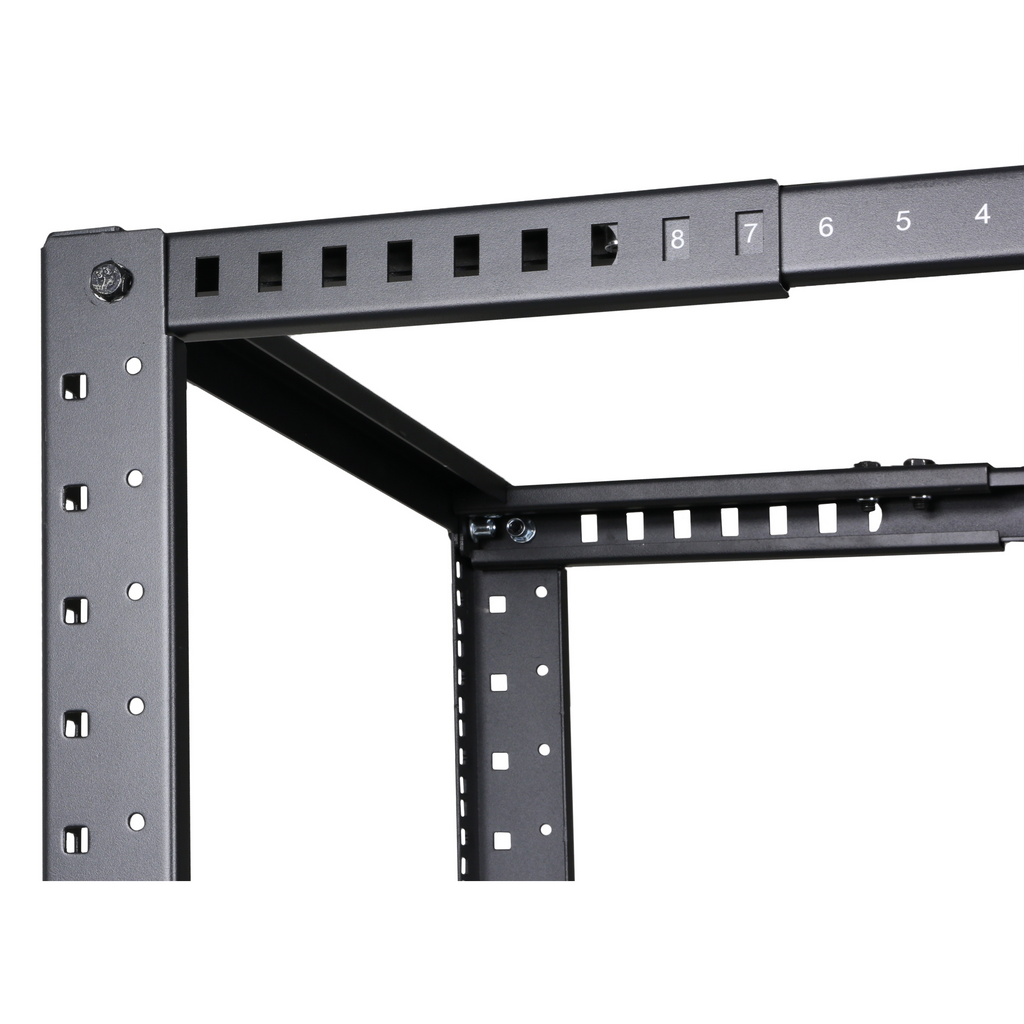

• In depth adjustment (55 ~ 101.5 cm)

• Flat-down package

• Unrestricted air flow due to open frame design

• Assembly in +/- 15 min

Specifications

• Unit height : 42 HE

• Max usable depth : 550 ~ 1015 mm

• Max load : 450 kg

• Width : 514,5 mm

• Depth : 560 ~ 1020 mm

• Height : 2006,4 mm

• Rack color : Black (RAL 9004)
