Audio Generator & Impedance Meter

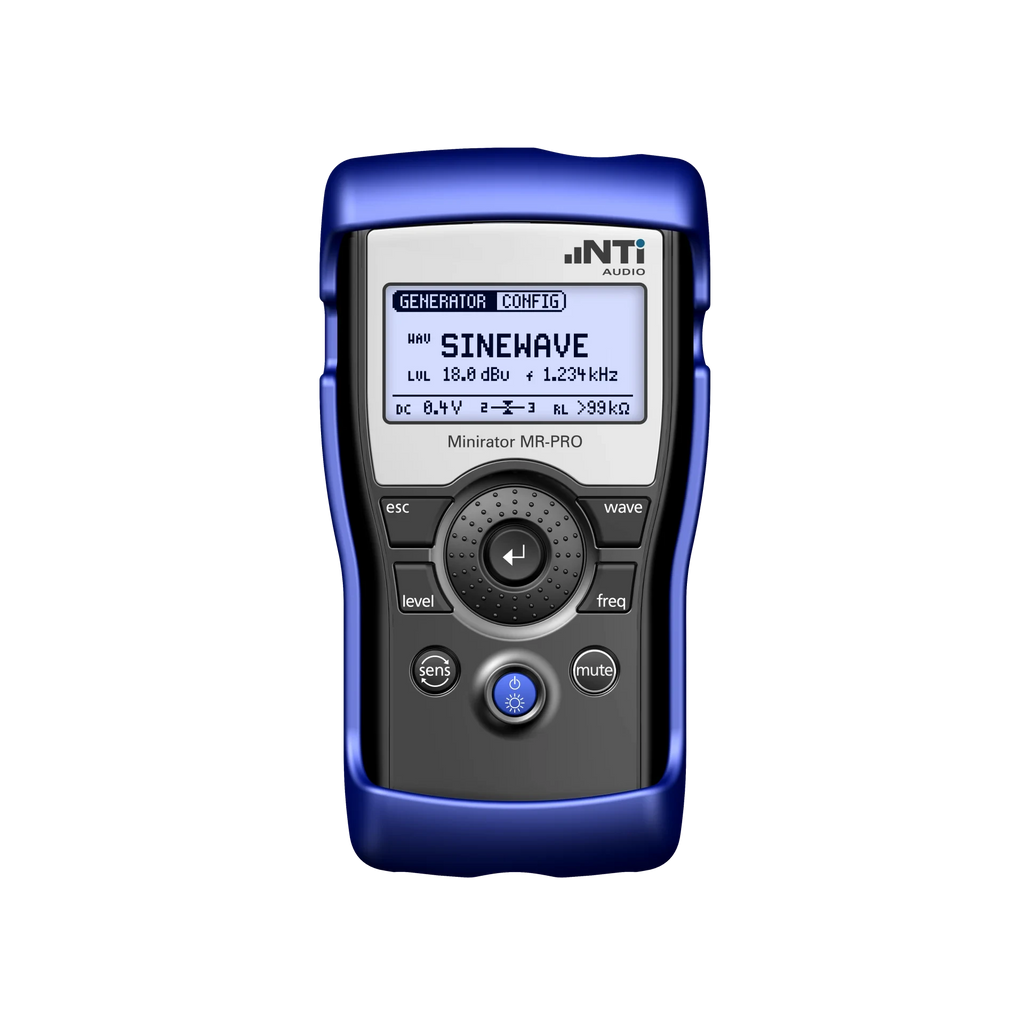

The Minirator MR-PRO provides a full set of analog audio signals including sine wave, pink noise, white noise, delay test signal, polarity test signal, stepped sweep and continuous sine sweep. Further, a set of wav-files, useful for system optimization, is stored in the internal flash memory. Add your own personal favorites to this set.

The signal balance, phantom power and impedance of the connected load are monitored. The integrated XLR cable tester simplifies trouble shooting tasks.

The workhorse MR2 provides all the basic standard signals at an attractive price point. Both generators are indispensable and proven tools for set-up, maintenance and monitoring of audio equipment of all types. The wide range of functionalities is tailored for measurement tasks in:

• Installed Sound
• Life Safety Systems
• Live Sound
• Broadcast
• Building Acoustics
• Industrial and Aerospace
• Quality Control

Test signals for the MR-PRO

Sine

Minirator generates pure sine waveforms at user-selectable fre-quencies and amplitudes. The frequency steps interval can be set to as low as 0.1Hz.

• Selectable frequencies from 10 Hz to 20 kHz
• Level range from -80 to +18 dBu

Sweep

The start/stop frequency, step time and a step resolution as fine as 1/12th octave can be adjusted. Audio analyzers
automatically trigger to this signal and record the frequency response of a device under test.

Chirp

The chirp signal is a logarithmic or linear gliding sine sweep signal with continuous frequency increase over time.
Typical applications are recording of frequency responses, impulse response measurements and acoustic assessment
of rooms.

Delay Test Signal

This is the designated reference signal to measure the acoustic propagation delay time from speaker to speaker in e.g. churches or auditoriums. It suits the accurate setup of delay line arrangements, thus the directionality of the signal source will be optimized. Testing is carried out in combination with the XL2 Audio and Acoustic Analyzer or Acoustilyzer AL1.

Pink & White Noise

Pink or white noise is synthesized with high spectral density, normal amplitude distribution and with infinite cycle duration. The Minirator also generates gated pink noise (on/off cycle 1 - 9 seconds) for convenient RT60 measurements with the XL2 Audio and Acoustic Analyzer or Acoustilyzer AL1 is included.

Polarity

Test signal for measuring the polarity of speakers and audio signals. The saw-tooth waveform is an ideal stimulus with only moderate stress to speakers. Testing is carried out in combination with the XL2 Audio and Acoustic Analyzer, Acoustilyzer AL1 or Minilyzer ML1.

User WAV-files *.wav (MR-PRO only)

The Minirator MR-PRO offers a range of additional factory test files, e.g. for speech intelligibility verification. You may store additional user test signals as uncompressed wav-files in the MR-PRO memory. The selected file is seamlessly looped. Wav-file exchange is simplified via the USB port.

• Pre-installed: STIPA, Voice, Music
• User downloads at the support page:
• Third- and Octave Pink Noise
• Square Wave: 10 Hz - 5 kHz
• Sine: 1 Hz - 10 Hz
• Power Test acc. IEC60268-5
• NormSignal acc. EN60065
• Cinema Headroom Test
