PRX606 ( 90m)

Cable reel with CAT6 networking cable

Product information

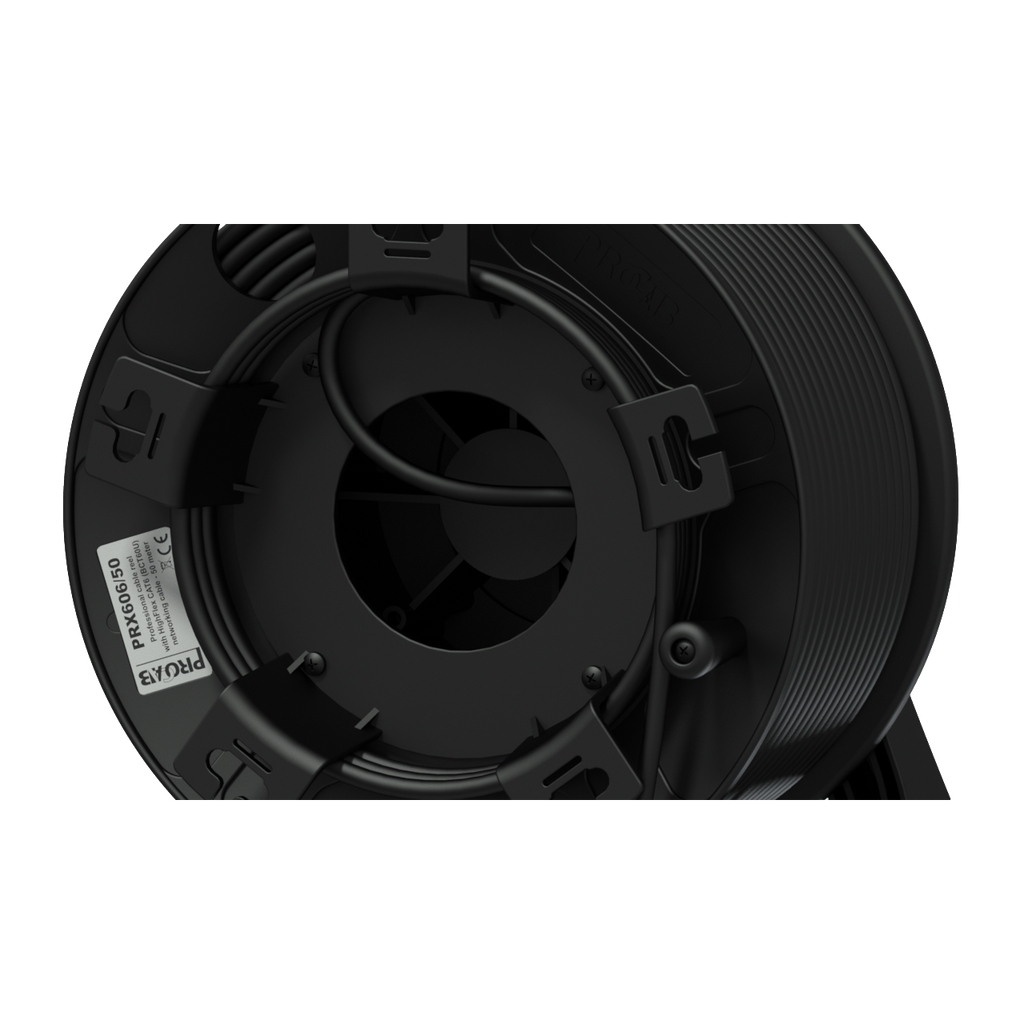

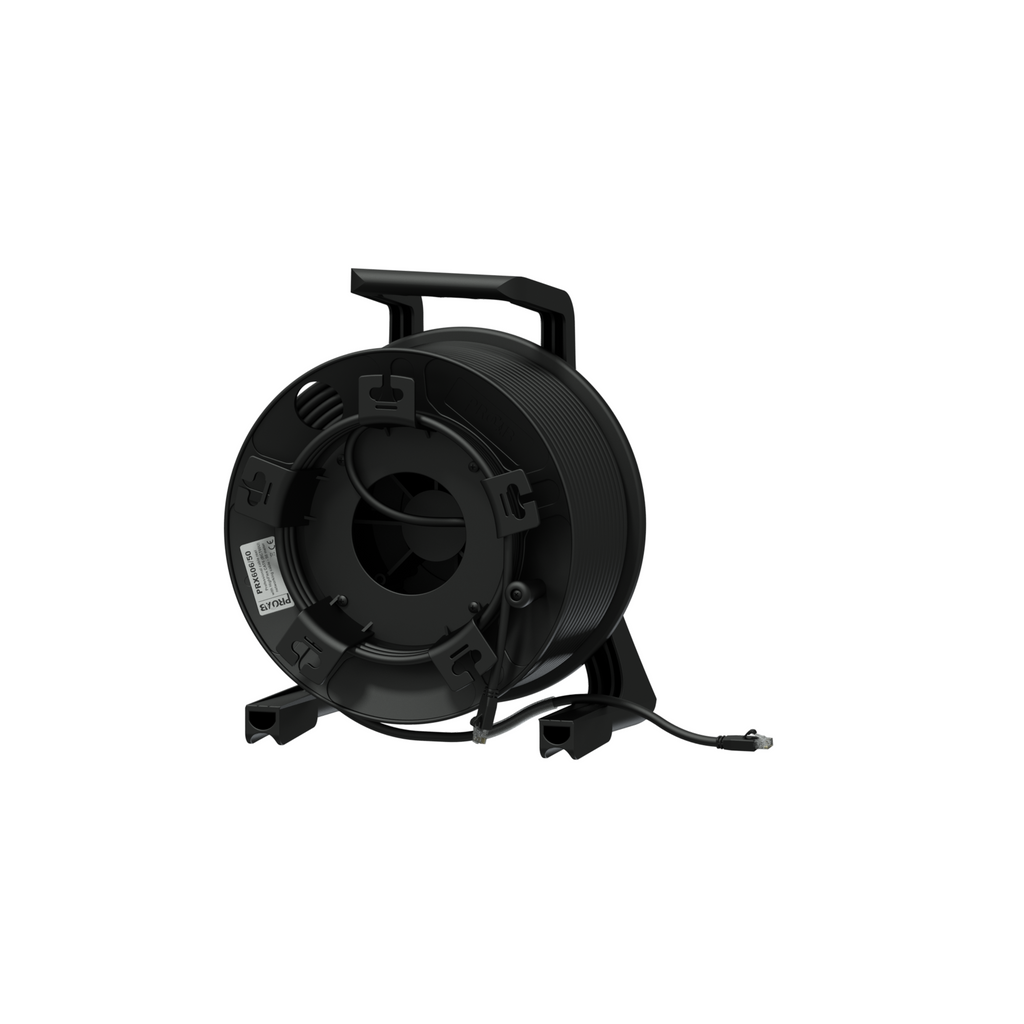

The PRX606 is a HighFlex CAT6 U/UTP cable (BCT60U) assembled on a lightweight, extremely strong and impact resistant reel (CDM310). Both ends are terminated by male RJ45 connectors, allowing direct connection from transmitting to receiving end without any additional connections or patch cords. A connection tail of 5 meters (included in total reel length) is wounded to the front side cable winder. The connectors are fitted with removable connector boots, allowing assembly of Neutrik Ethercon connector shells (Neutrik NE8MC or NE8MC-B). The conductor section consists of 4 twisted pairs with stranded copper 24 AWG conductors with a polyethylene ‘+’ shaped separator in between.The combination with hard and solid inner jacket materials and soft outer jacket materials provides great flexibility with a solid touch even after numerous times of winding and unwinding. Supports 10Base-T, 100Base-TX, 1000Base-T and 10GBase-T gigabit.

HIGHLIGHTS

• Polycarbonate reel

INNER CONDUCTORS

General Specifications

• Type of cable : CAT6 U/UTP Networking cable

• Inner conductor : BC 7 x 0.20 mm (OFC)

• Inner conductor section : 0.22 mm²

• Number of conductors : 8 (4 pairs)

• Insulation : HDPE Ø 1.02 mm

• Twisting lay length : ≤ 30mm

• Separator : Cross web filler (PE)

• Inner jacket : Hard PVC

• Inner jacket dimensions : Ø 6.6 mm

• Outer jacket : Soft PVC

• Outer jacket colour : Black

• Outer jacket dimensions : Ø 8.2 mm

• American Wire Gauge : 24 AWG

• Connection Type : RJ45 male to RJ45 male

• Dimensions (W x H x D) : 312 x 392 x 234 mm

• Length: 90 m
