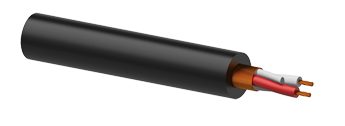

MICROFOONKABEL BLACK 100 METER PROCAB
Microfoonkabel, 2 x 0,23mm².
PRODUCT INFORMATIE:

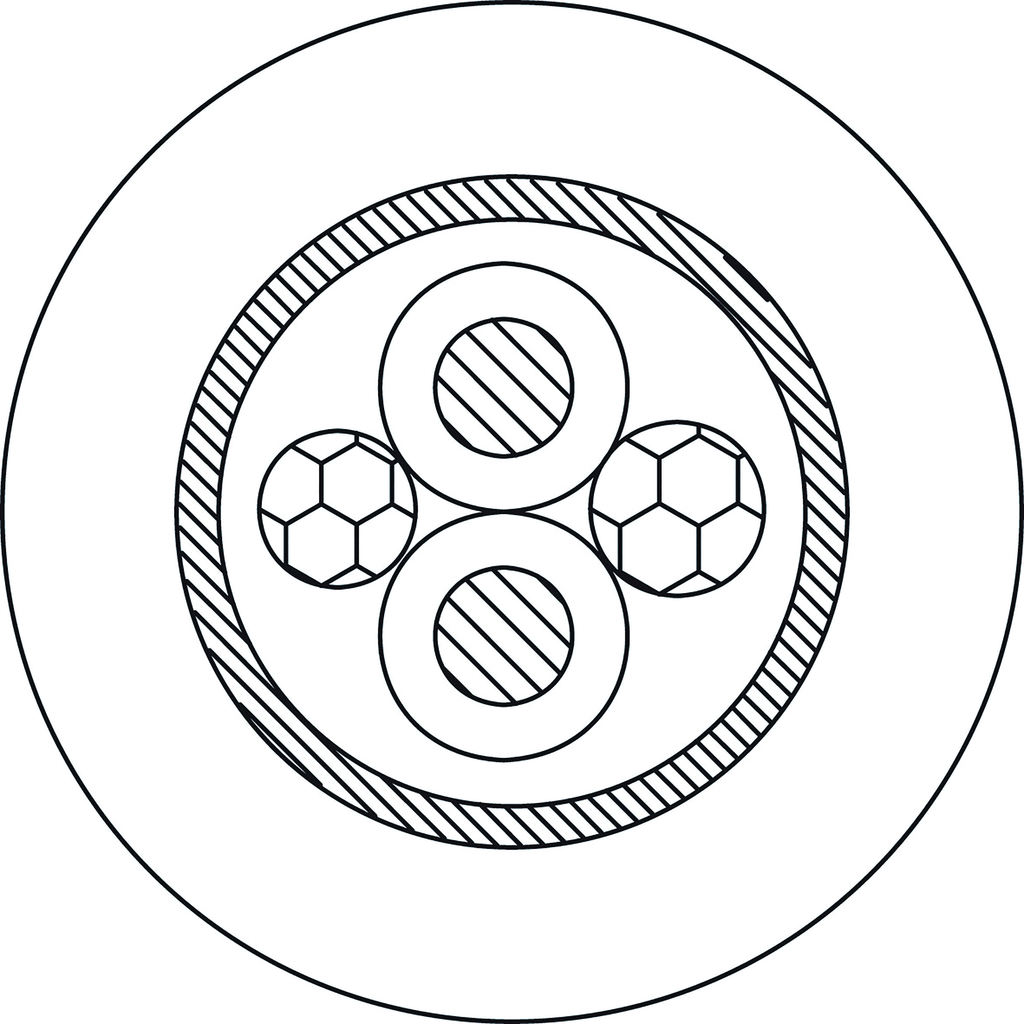

The MC305 is a high quality microphone cable for indoor and outdoor use. The cable has a highly flexible jacket made of PVC and is easy to handle. Two insulated and twisted conductors of 0.23mm² are provided inside the cable. The durable shielding gives an excellent protection against interference of all kinds, such as electromagnetic fields caused by dimmers, motors or power cables. The MC305 is an “all-round” microphone cable with an O.D of 6 mm and is suited for all kinds of applications where reliable signal transmission is needed. The MC305 is available in 5 different colours, black, white, red, green and blue for easy tracking and recognition.
| HIGHLIGHTS |
|
SPECIFICATIES:
- Type of cable : Balanced microphone cable
- Inner conductor : 2 x BC 20 x 0.12 mm
- Inner conductor section : 0.23 mm²
- Isolation : LDPE ø 1.4 mm
- Isolation colour : Red / White
- Number of conductors : 2
- Conductor twisting : Yes
- Shielding : BC 64 x 0.12 mm - Spiral
- Shielding % : 100%
- Filling : Cotton yarn
- Separator : None
- Outer jacket : Flexible PVC
- Outer jacket colour : Black / White / Green / Blue / Red
- Outer jacket dimensions : ø 6 mm
- Printing colour : White or Grey
- Printing text : Procab MC305
- Lead resistance - 100 meter : 7.9 Ohm
- Cable crosstalk - 100 meter : Min 73.3 dB
- Cap. Lead to lead - meter @ 1 kHz : 63 pF
- Cap. Lead to shielding - meter @ 1 kHz : 115 pF
- American Wire Gauge (AWG) : 24
- Bulk kabel met een lengte van 100 meter
