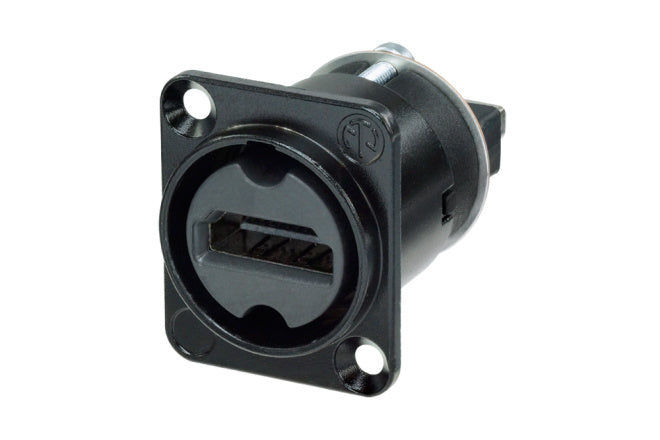

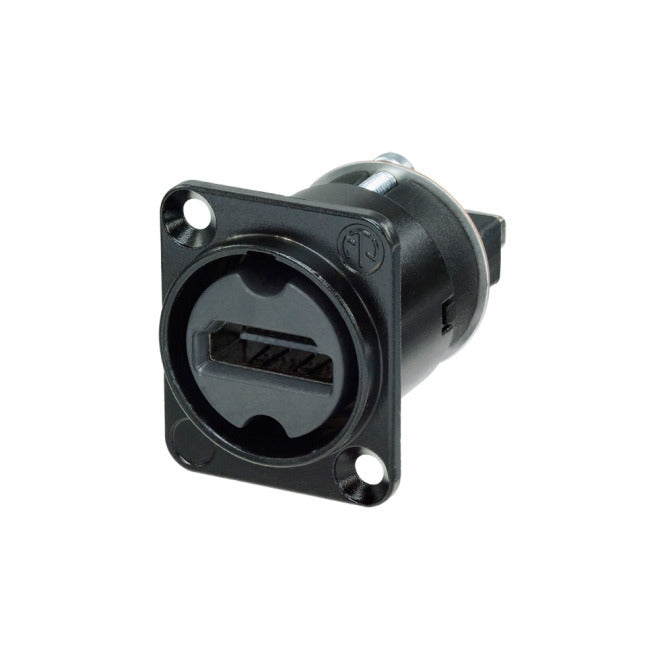

Neutrik HDMI 1.4 feedthrough adapter, black D-shape housing.

• To transmit any digital TV and PC video format including high-definition video (HDTV)
• HDMI 1.4 feedthrough adapter with 19-pole HDMI receptacle at both ends
• Dust and water resistant acc. to IP65 safety standard in combination with NKHDMI-*
• Universally accepted standard D-shape housing
• Removable screen to chassis grounding:

  ​


Specifications:
Product

• Title: NAHDMI-W-B
• Connection Type: Adapter
• Gender: female

Mechanical

• Mounting direction: Front mounting
• Chassis shape: D

Material

• Contact plating: Au
• Contacts: Brass (CuZn39Pb3)
• Insert: PBT
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell plating: Black chromium

Environmental

• Flammability: UL 94 V-0
• Standard compliance: HDMI 1.4 specifications
• Temperature range: -25 °C to +85 °C

Downloads:

• Multimedia Series IP 65 Test Report
• Product Guide
• Drawing
