VC3036 Volume Control 36W 100V - For 45X45

PRODUCT INFORMATIE:

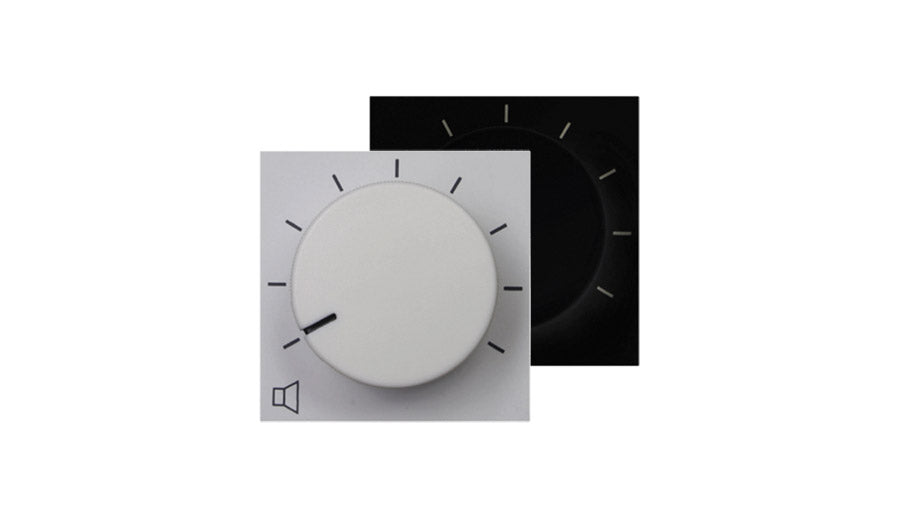

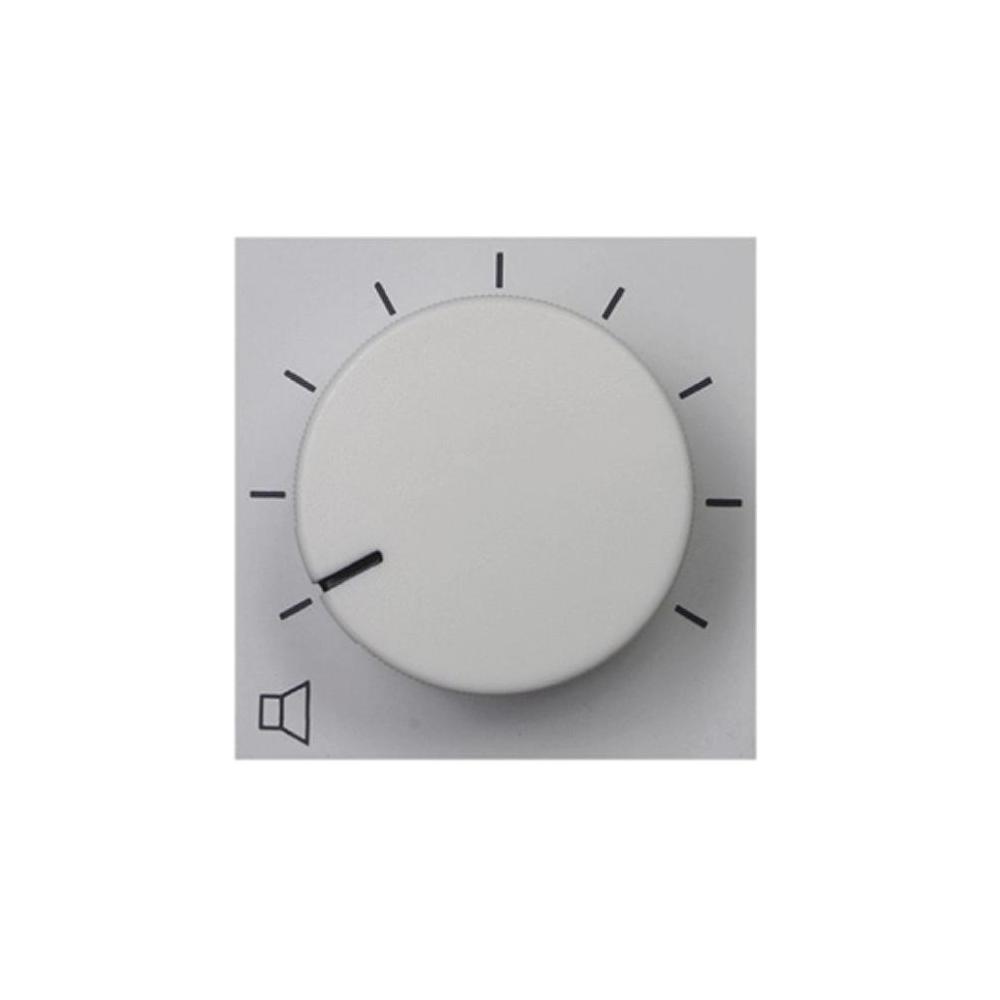

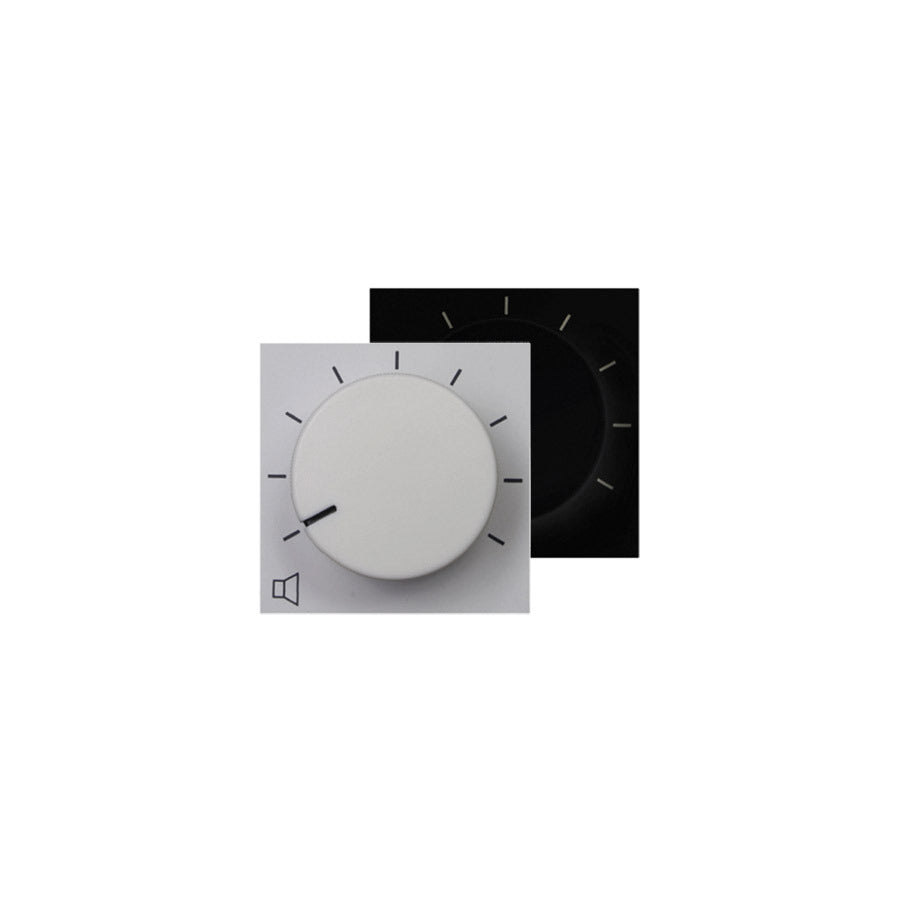

The VC3036 is a flush mount wall volume controllers for 100V PA installations. It is compatible with AUDAC and Niko installation materials. The volume is adjustable with a rotatable dial in ten steps of 3 dB and the maximum power rating is 36 Watt. A built-in relay makes it possible to build priority circuits between several controllers. Available in Black (B) and White (W).

SPECIFICATIES:

• Demping: 9 x 3dB
• Afmetingen (W x H x D): 45 x 45 x 60 mm
• Max voltage bij gebruik: 100 Volt
• Max machtslading: 36 Watt
• Montage: Audac / Niko
• Relay: 24V DC - 25mA

DOWNLOADS:

• Product informatieblad
• Product gebruikershandleiding
