PSA-10 JB SYSTEMS Active Fullrange Speaker

Professional active speaker cabinet for a wide range of different applications.

Heavy duty Polypropylene cabinet housing

Bi-Amping technology with separate amplifiers for woofer and tweeter for maximum impact: woofer 130W + tweeter 30W RMS-power

Carefully tuned active 2-way crossover for perfect sound

Active 2-way crossover

Perfect for both permanent installations and portable use (Rental, DJ...)

Equipped with a 10" high power woofer & a 1.35" compression driver

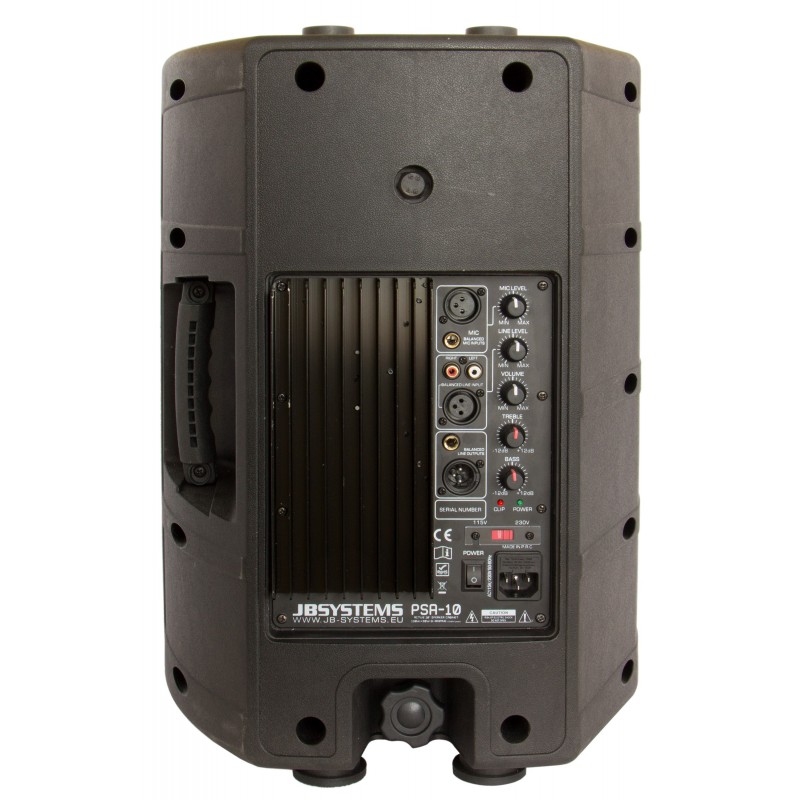

Balanced MIC + LINE inputs with level control

Balanced LINE output

Treble + Bass controls + Master volume

Blue „power“ LED on the front panel

Built-in M8 Rigging points

Built-in 35mm stand adapter

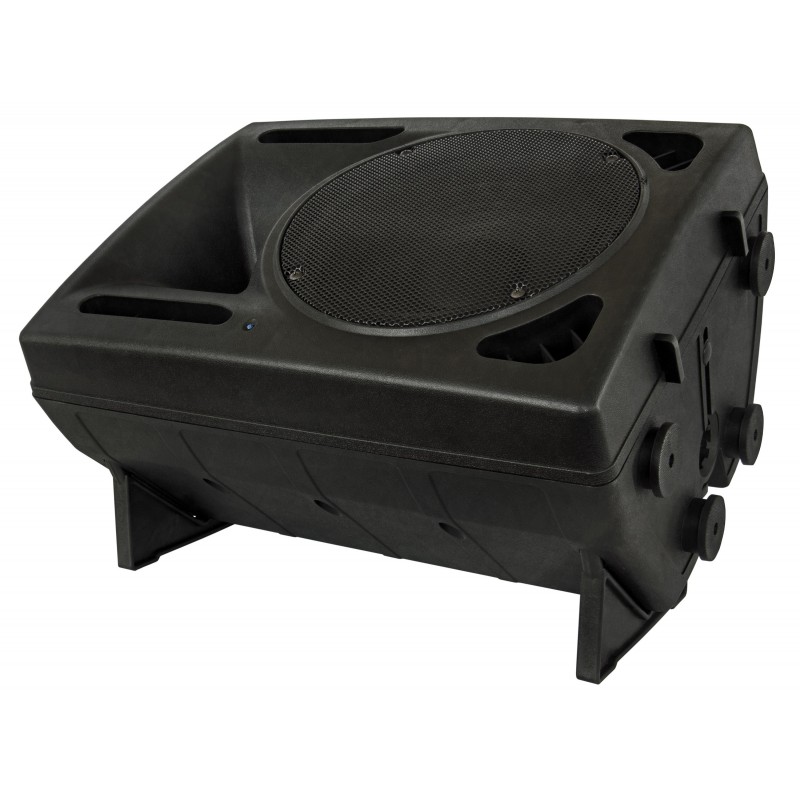

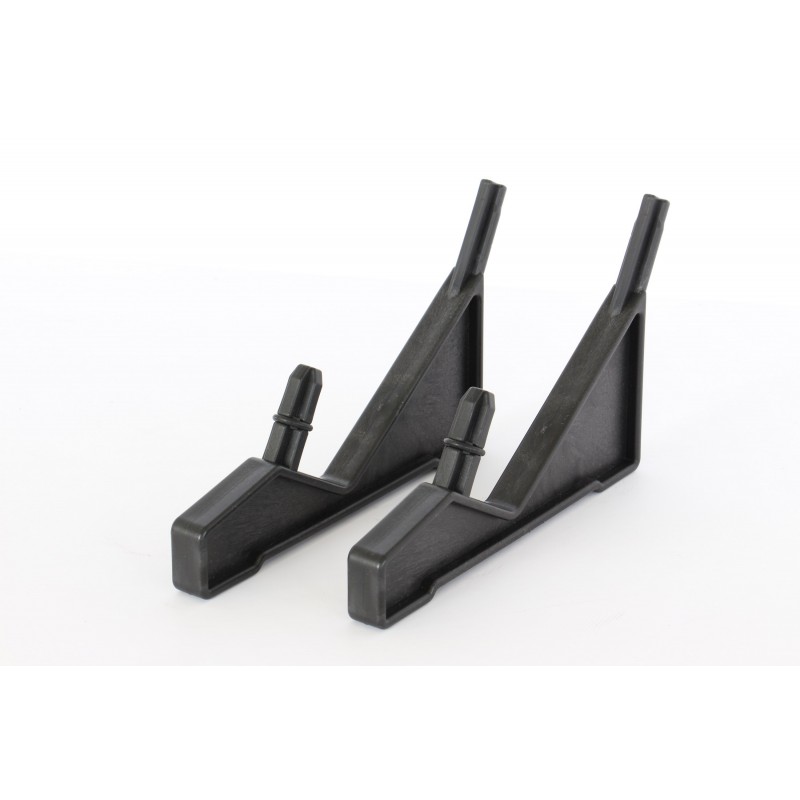

Monitor support stands included

Built-in heavy duty carrying handle

Heavy duty rubber feet

Amplifier Tweeter: 30Wrms

Amplifier Woofer: 130Wrms

Freq. Resp. (+/-3dB): 60 – 20.000Hz

THD (1kHz / 1W): 0.10%

Input Sensitivity line: 1V

Input Sensitivity micro: 15mV

Input impedancy: 20 kohm

S/R ratio (mic off): >85dB

EQ low: +/-12dB @ 100Hz

EQ high: +/-12dB @ 10kHz

cooling: natural air cooling

Microphone input:  gebal./ongebal. XLR/Jack

Line input: gebal./ongebal. XLR 3-pin

Line outputs: gebal./ongebal. XLR 3-pin

Fuse (5x20mm): F3.15A / 250V

Power Supply: 115Vac/60Hz 230Vac/50Hz

Dimensions (HxBxD): 500 x 355 x 270 mm

Weight (kg): 11.6
