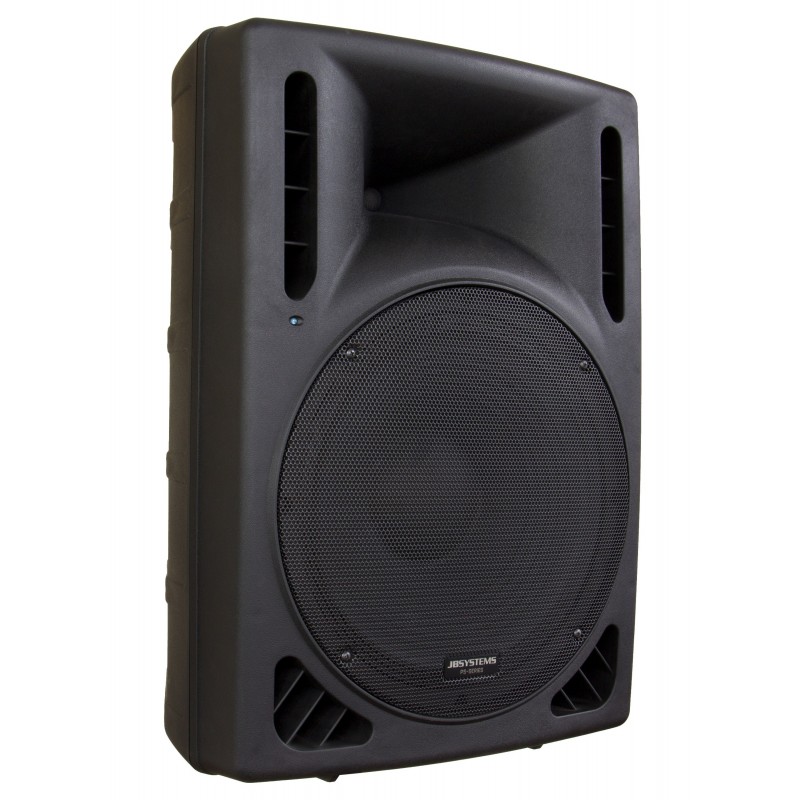

PSA-15 JB SYSTEMS Active Fullrange Speaker

Professional active speaker cabinet for a wide range of different applications.

Heavy duty Polypropylene cabinet housing

Bi-Amping technology with separate amplifiers for woofer and tweeter for maximum impact: woofer 245W + tweeter 55W RMS-power

Fully tuned 6-Band parametric EQ for perfect sound

Active 2-way crossover

Perfect for both permanent installations and portable use (Rental, DJ, ...)

Equipped with a 15" high power woofer & a 1.75" compression driver

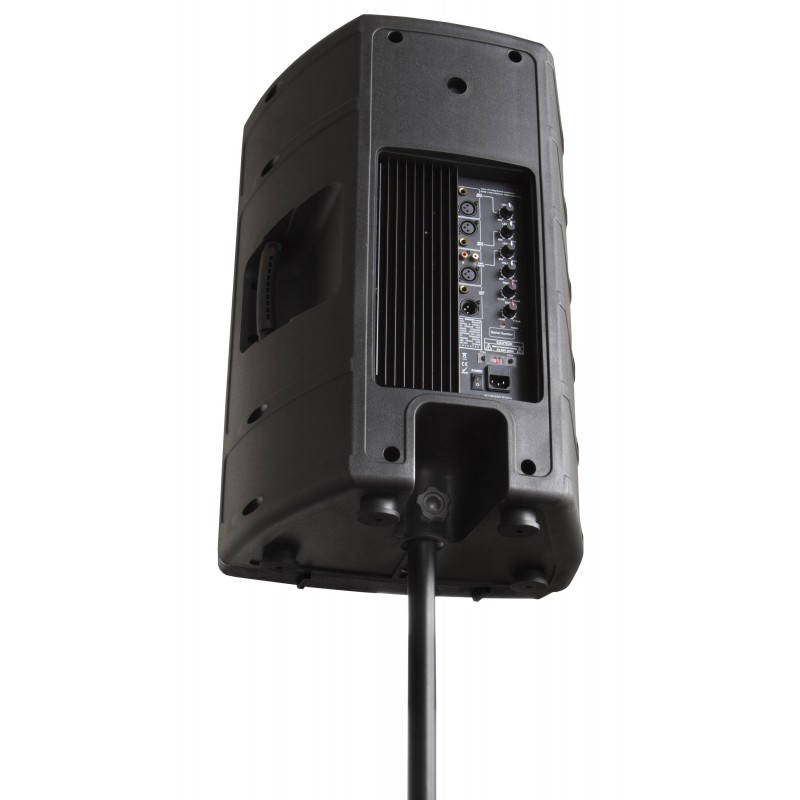

2 Balanced MIC + 1 LINE input with level control

Balanced LINE output

Treble + Bass controls + Master volume

Blue „power“ LED on the front panel

Built-in M8 Rigging points

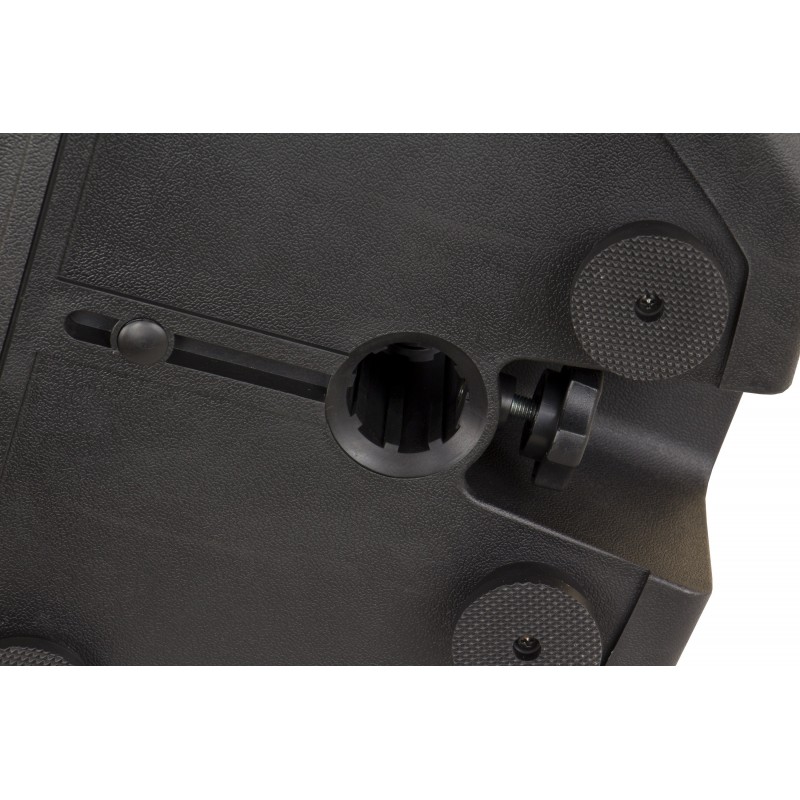

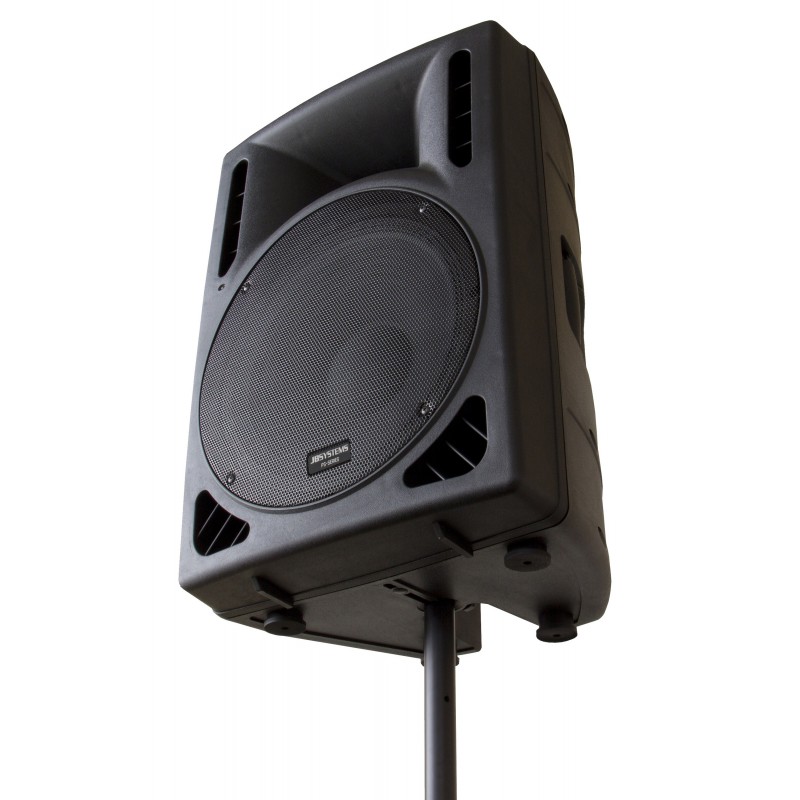

Built-in 35mm stand adapter

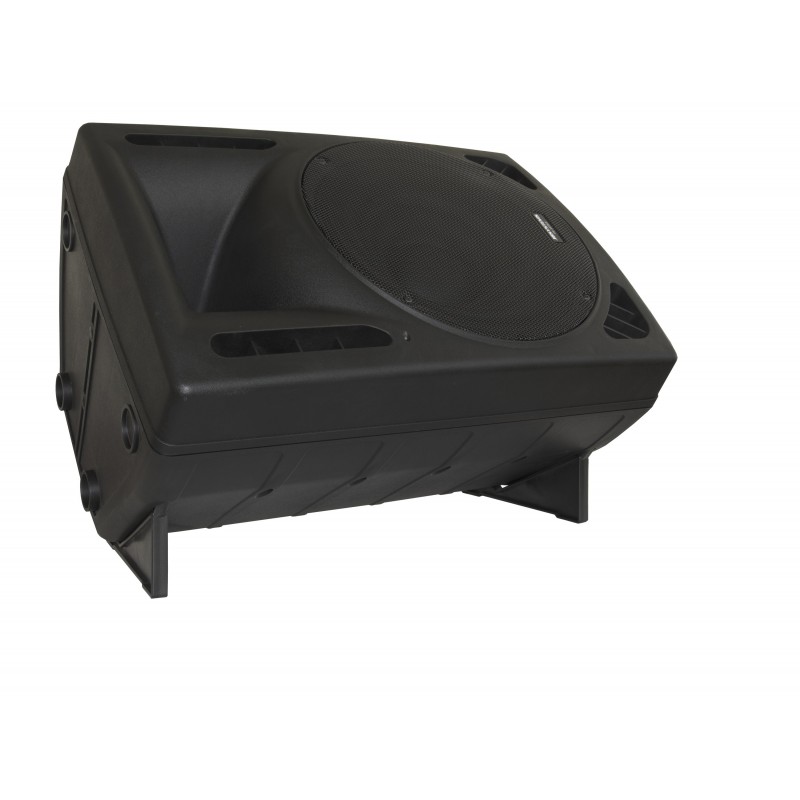

Monitor support stands included

Built-in heavy duty carrying handle

Heavy duty rubber feet

Amplifier Tweeter: 55Wrms

Amplifier Woofer: 245Wrms

Freq. Resp. (+/-3dB): 40 – 20.000Hz

THD (1kHz / 1W): 0.10%

Input Sensitivity line: 1V

Input Sensitivity micro: 15mV

Input impedance: 20 kohm

S/N ratio (mic off): >85dB

EQ low: +/-12dB @ 100Hz

EQ high: +/-12dB @ 10kHz

Cooling: natural air cooling

Microphone input: Bal/unbal XLR/Jack

Line input: Bal/unbal XLR 3pin

Line outputs: Bal/unbal XLR 3pin

Fuse (5x20mm): F5A / 250V

Power supply: 115Vac/60Hz 230Vac/50Hz

Dimensions HxWxD (mm): 680 x 470 x 400

Weight (kg): 23.3
