SRL-1 DATEQ Circuitbreaker for decibel meter

  • S2 ref: 010102
  • 580.80

    Incl. VAT
  • In Stock

* Mandatory fields

  Add to Wish List   Compare this Product
  • Output Relay for power cut off max. 3x 16a 230v
  • Pair with SPL3, SPL3TS, SPL-D2 and SPL5
  • Warning led for sanction

Description

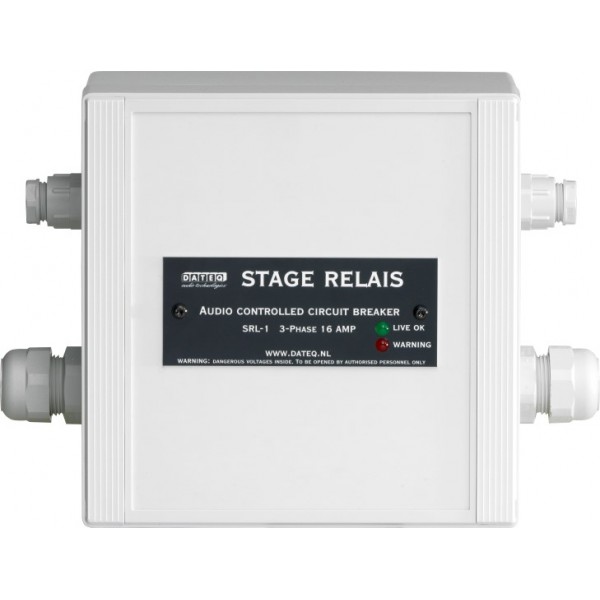

SRL-1 DATEQ - Circuit Breaker

The SRL-1 is build as relay extension box for the SPL3, SPL3TS, SPL5 and SPL-D2 display. Linked to one of the SPL series limiter or display=, the SRL-1 allows a warning light and power cut out on exceeding the pre-set sound level. Linked to the SPL-D2, the software allows a sanction threshold, delay and duration set point.

Features:

SRL-1 linked to the SPL3, SPL3TS and SPL5

When linked to the SPL3, SPL3TS or SPL5, the SRL-1 will slave to the active state of the limiter. Limiter setting are automatically set for the SRL-1

SRL-1 linked to the SPL-D2

Linked to the SPL-D2, the SRL-1 allows to act as a circuit breaker when exceeding the preset sound level. Before switching off power a warning light signals the user during sanction delay. By setting the green/red threshold point, the SRL-1 maximum sound level is preset. When exceeding the sound level the SRL-1 will switch off power after the preset delay time + 5 seconds.

The SPL-D2 will blink the yellow letters dB during sanction delay time. When the sanction reset time has reached the SRL-1 will restore power.

Specification

Power supply
  • Power supply: 3x 16A
