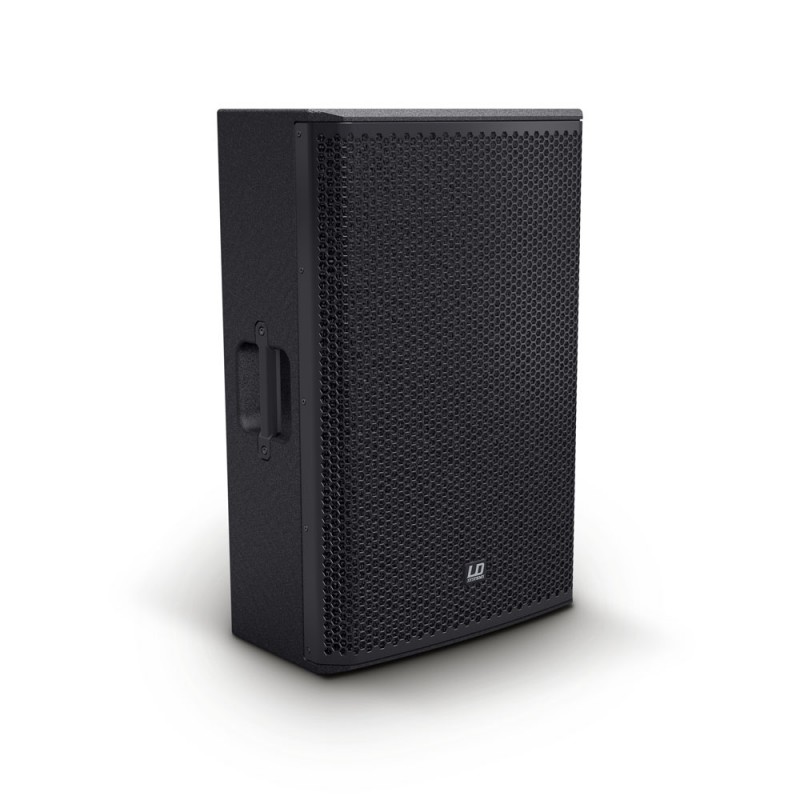

Stinger 15 G3 LD Systems Passive Speaker

Description

STINGER 15 G3

15" PA SPEAKER PASSIVE

This highly professional 2-way loudspeaker is designed for absolute, long-term reliability. With its multifunctional bass reflex cabinet as a full-range speaker, satellite and ground monitor, it is suited to mobile and fixed PA systems. The Stinger® 15 G3 provides 500 watts of continuous power; the maximum sound pressure level is 127 dB. Its specially developed 15" woofer and the BMS HF driver achieve a powerful bass reproduction and fresh natural highs. The wave guide of the tweeter has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflections from the floor and ceiling and prevents sidelobe levels and thus achieves a controlled and homogeneous dispersion.

The Stinger® 15 G3 is designed as a real all-round workhorse. The cabinet is made from robust birch plywood and offers exceptional stability and durability thanks to its extremely durable polyurea coating. The features include a steel grille, a Dual-Tilt stand attachment, flight points and ergonomic handles. The Stinger® 15 G3 is an affordable solution for professional PA applications; extensive accessories support use on stage and in fixed installations.

Features

• Passive 2-way bass-reflex PA speaker

• 500 watts RMS

• 127 dB maximum sound pressure level

• 15" Custom Woofer and BMS driver

• Homogeneous dispersion pattern through a BEM-optimised tweeter wave guide

• Birch plywood cabinet with extremely durable polyurea coating

• Shock-resistant front grille to protect the loudspeaker

• 36 mm Dual Tilt stand attachment with 0° and 5° tilt angle

• Extensive and smart accessories for installation and transport

SPECIFICATIONS

• Product type: PA loudspeaker

• Type: passive

• Low/mid driver dimensions: 15"

• Low/mid driver dimensions (mm): 381mm

• Woofer magnet: Ferrite

• Woofer brand: Custom-made

• Woofer voice coil: 3"

• Woofer voice coil (mm): 76.2mm

• Horn: CD horn

• HF driver dimensions: 1"

• HF driver dimensions (mm): 25.4mm

• HF driver magnet: Ferrite

• HF driver brand: BMS

• HF driver voice coil: 1"

• HF driver voice coil (mm): 25.4mm

• Dispersion (H x V): 90 x 50°

• Load rating (RMS): 500W

• Peak power: 1000W

• Frequency response: 50 - 20000Hz

• SPL (1W/1m): 100dB

• Max. SPL: 127dB

• Impedance: 8Ohm(s)

• Protection circuits: HF Driver

• Loudspeaker inputs: 1

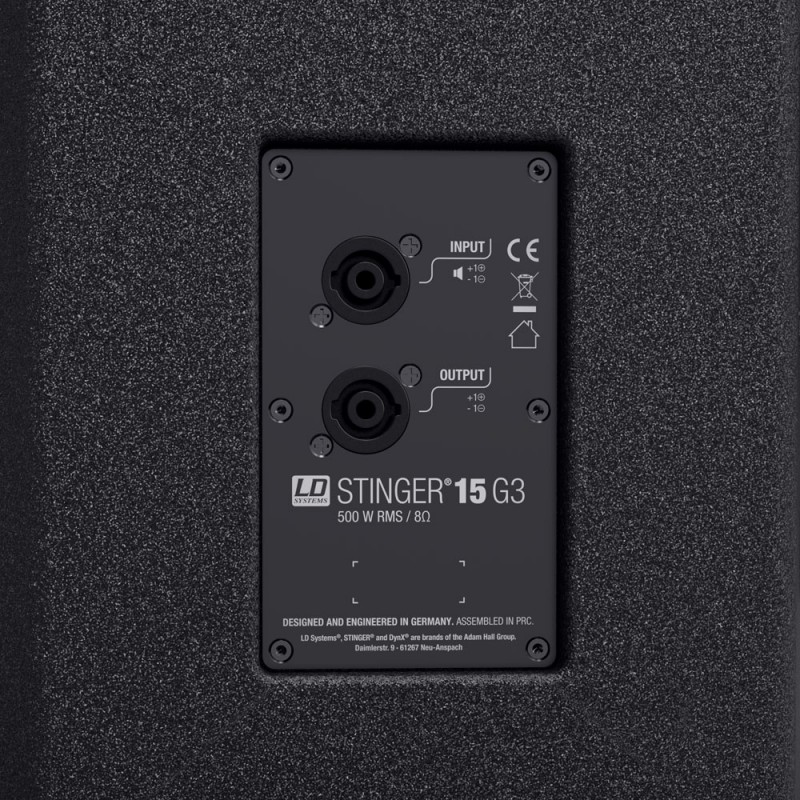

• Speaker input connections: Speakon compatible

• Loudspeaker outputs: 1

• Speaker output connections: Speakon compatible

• Cabinet material: 15 mm Plywood

• Cabinet surface: Polyurea

• Cabinet construction: vented

• Monitor angle: 54°

• Width: 480mm

• Height: 737mm

• Depth: 455mm

• Weight: 24.1kg
