SWIVEL CASTOR BLUE 100 MM TENTE

Description

SWIVEL CASTOR BLUE 100 MM

3470UFR100P62 blue

Description:

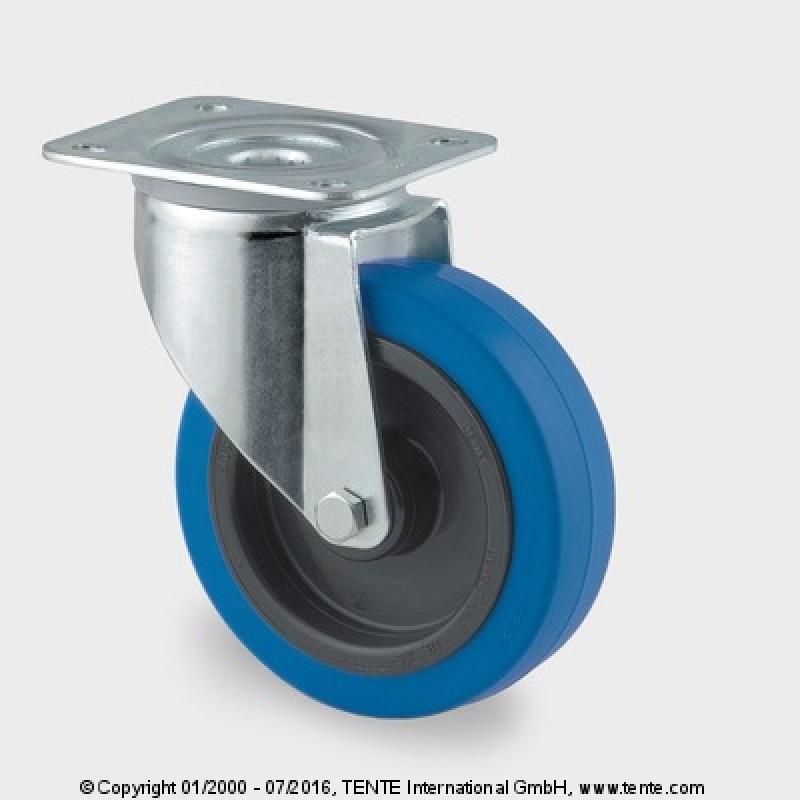

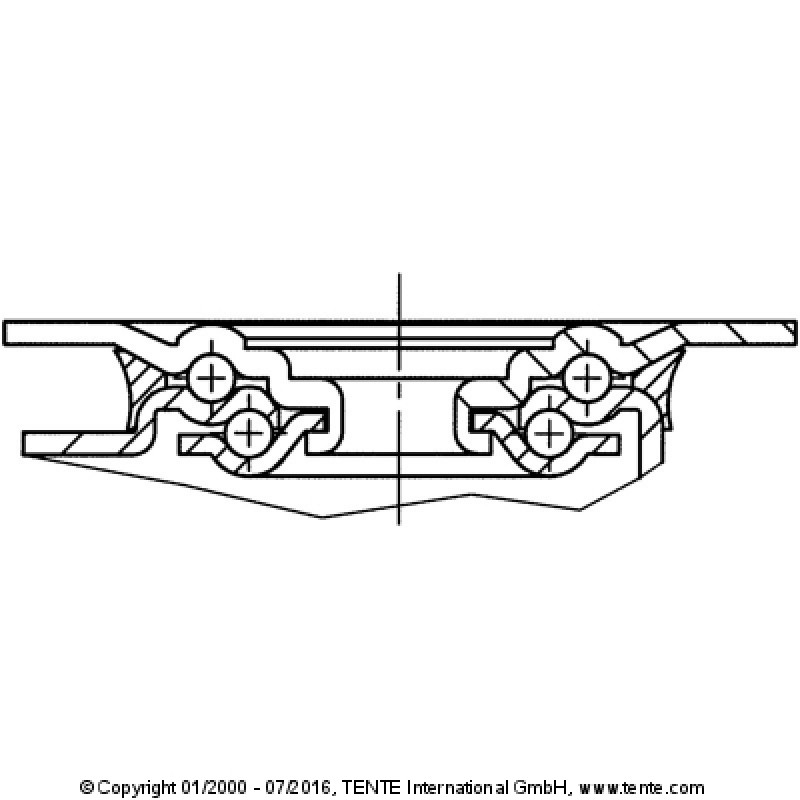

Swivel castor, housing made of pressed steel, bright zinc plated, blue passivated, double ball bearing swivel head, wheel axle with nut, dustguard, plate fitting. Wheel centre made of Polyamide, Tread: elastic-tyre, non-marking, roller bearing

Technical Data

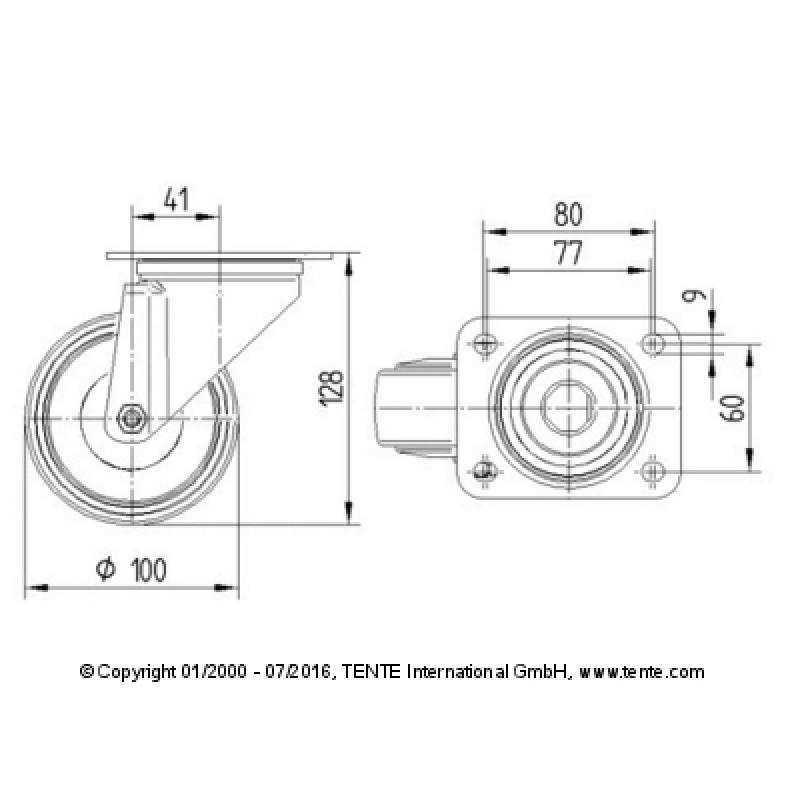

• Wheel diameter: 100 mm

• Width of Tread: 34 mm

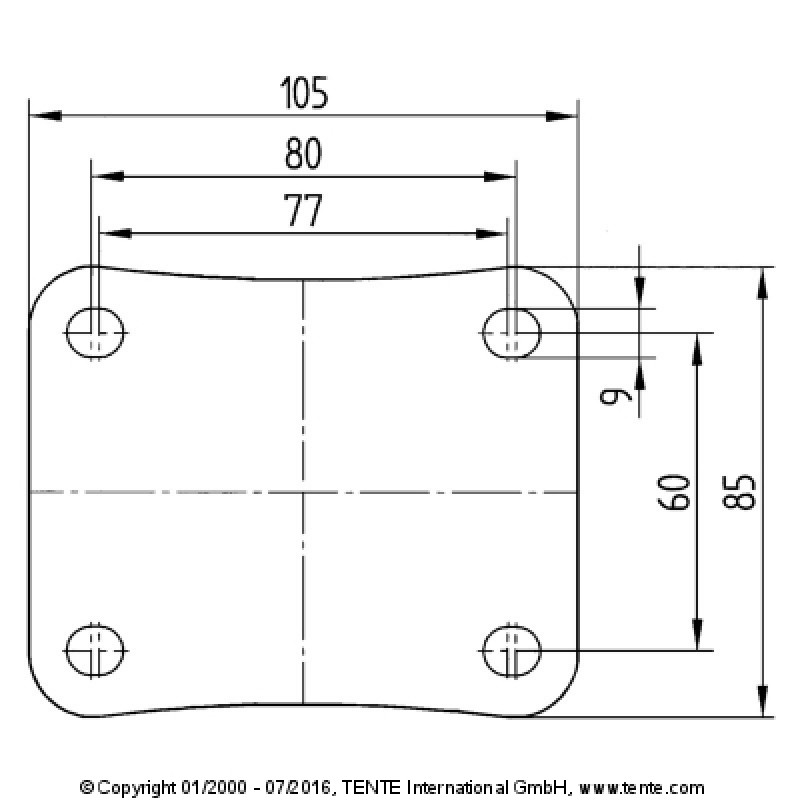

• Size of Plate: 105 x 85 mm

• Plate hole centres: 80/77 x 60 mm

• Plate hole: 9 mm

• Offset: 41 mm

• Swivel Interference: 182 mm

• Overall height: 128 mm

• Temperature: - 20 / + 80 °C

• Standard: EN 12532

• Weight: 0.858 kg

• Swivel Radius: 91 mm

• Hardness of tread: Shore A 64

• Load capacity: 160 kg

• Load capacity (static): 320 kg
