US-1x2HR Tascam Usb Audio-interface

Description

Us-1x2hr Tascam High Resolution Usb Audio Interface

The US-1x2HR is the smallest member of the Tascam US-HR series of high-resolution USB audio interfaces. It has one microphone and one instrument input, making it particularly suitable for simple and intuitive guitar/vocal recording with a computer. However, the included loopback function and support for Open Broadcaster Software (OBS Studio) also make it an excellent choice for creating podcasts and live streaming. Last but not least, it is a perfect solution to feed an amplifier system with music from a computer in high quality, for example for a birthday party. The compact US-1x2HR includes a wealth of features, including high audio resolution up to 24-bit/192 kHz, ultra-low latency with a Windows buffer size starting at four samples, Ultra-HDDA microphone preamps with 48-volt phantom power for superior sound quality with ultra-low noise, a robust USB Type C connector, and a rich assortment of included software to start producing audio right away. The lightweight interface is ideal for mobile recording and production using an iPhone or iPad* with the included Cubasis LE, so you can take it to your practice room, use it to report on a live event, or capture nature sounds outdoors.

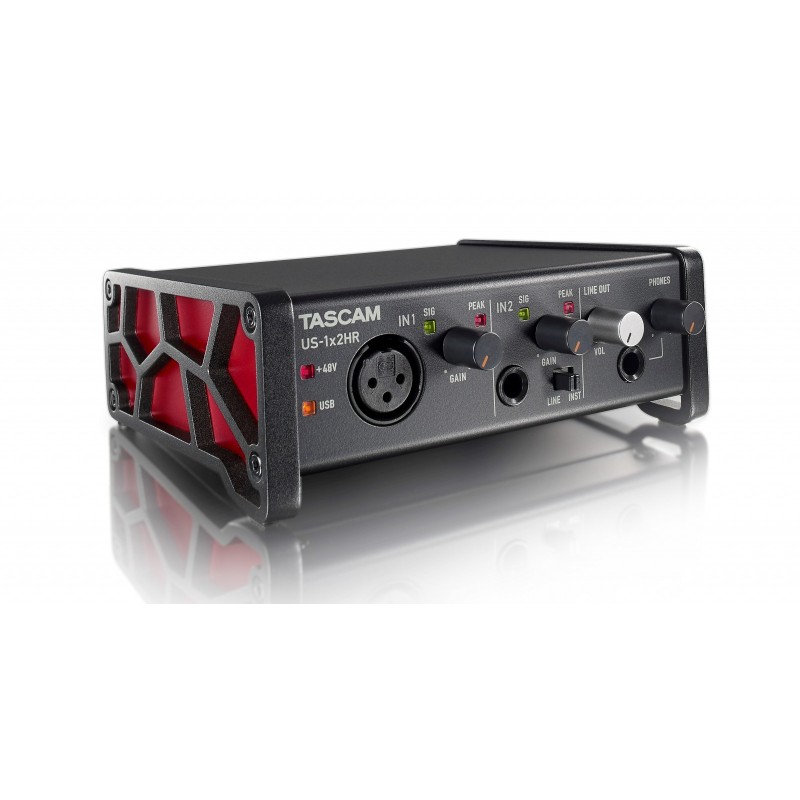

All US-HR models feature a unique honeycomb structure of cast aluminum on the side panels with a slight upward tilt. This design not only results in a sleek, eye-catching design, it also provides just the right amount of weight so the interface won't move when cables are connected or disconnected. Equally important is the ergonomic advantage of the tilt upward, which makes the interface easy to operate.

If you need a clear, easy-to-use audio interface with two inputs and two outputs, very low noise, low distortion and excellent sound quality, the Tascam US-1x2HR can be your reliable partner for many years to come.

Features

• Advanced version the popular US-1x2 with even better sound quality
• Provides two audio inputs and two audio outputs to a Windows or Mac computer or iOS device
• Audio resolution up to 192 kHz / 24 bit
• USB Audio Compliance 2.0 for iOS connection

Hardware features

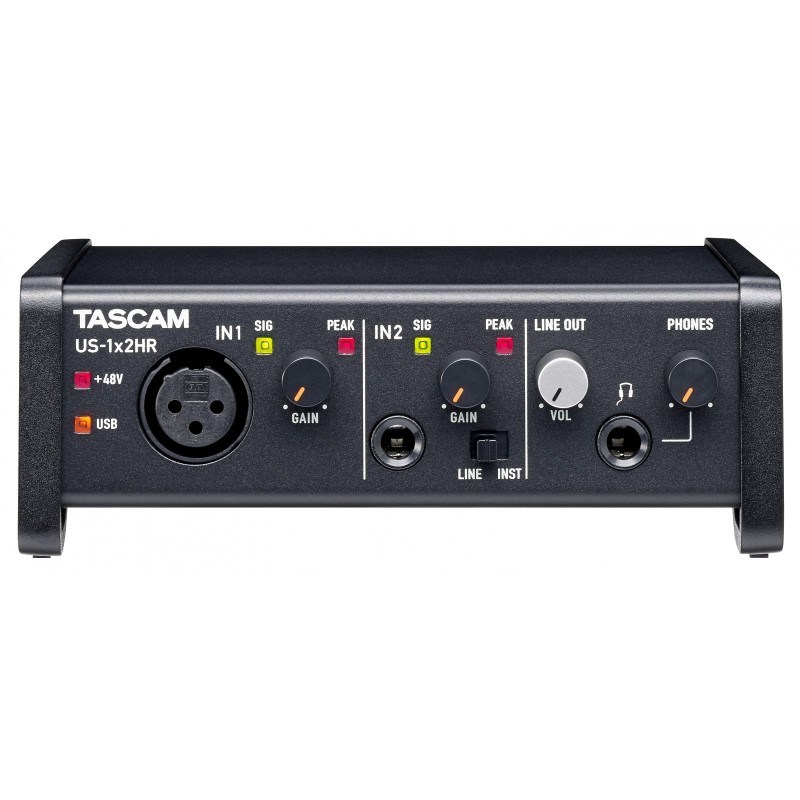

• One XLR microphone input with switchable phantom power
• One 6.3-mm TRS analog input selectable between line level (balanced) and instrument level (unbalanced, for direct connection of a guitar or bass)

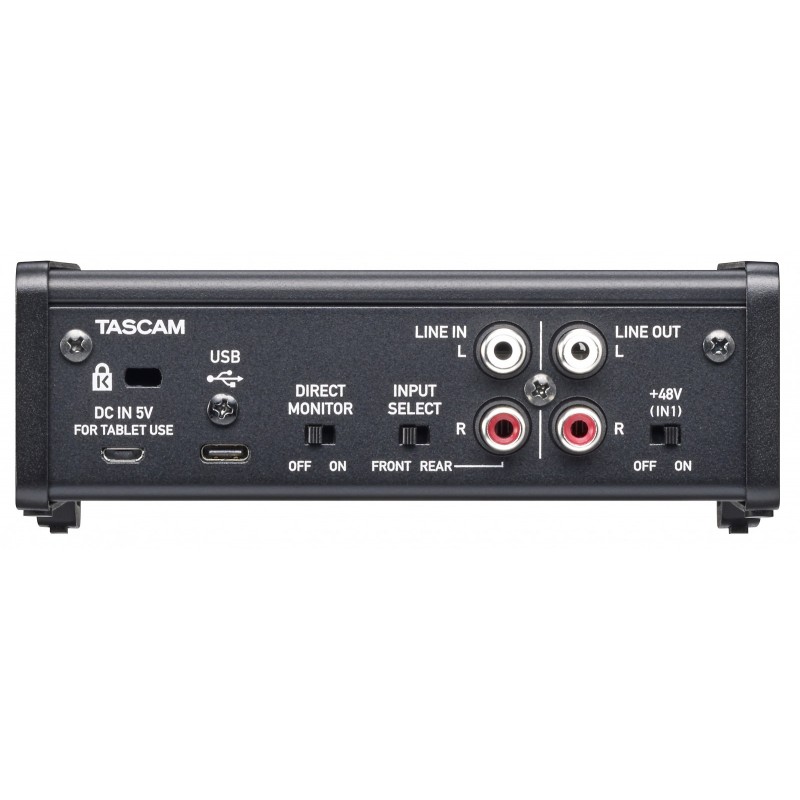

• Two line inputs with RCA connectors on the rear can be used instead of the front inputs
• One high-quality Ultra-HDDA (High Definition Discrete Architecture) microphone preamplifier with ultra-low noise (EIN: -128 dBu)
• Wide input gain range of 58 dB, ideal for dynamic microphones
• Stereo line output
• Direct monitor option for low-latency monitoring
• Headphone output provides 18 mW per channel
• Independent level control for line and phone outputs
• USB bus power for mobile recording
• Rugged aluminum housing
• Angled industrial design for ease of use on a desk

Software features

• Proprietary developed driver for Windows devices ensures stable operation with low latency
• The buffer size for Windows can be set to up to 4 samples to enable an ultra-low latency recording environment
• Each input can be individually turned on/off
• Input monitor function can be selected between stereo and mono
• A loopback function allows two computer audio channels to be merged with the input signals and this mix to be sent to the streaming or communication software
• Input and computer signals can each be selected between stereo and mono
• A slider allows you to adjust the broadcast level
• Switchable automatic power saving mode to reduce laptop/tablet computer battery consumption in mobile use
• Automatic update function available for software, driver and firmware updates (you can install new updates at the touch of a button)
• Compatible with major DAW software
• Bundled with Cubase LE and Cubasis LE3, IK Multimedia SampleTank 4 SE and Antares Auto-Tune Unlimited (free 3-month subscription)
• USB cable (type C to type A) included as standard
