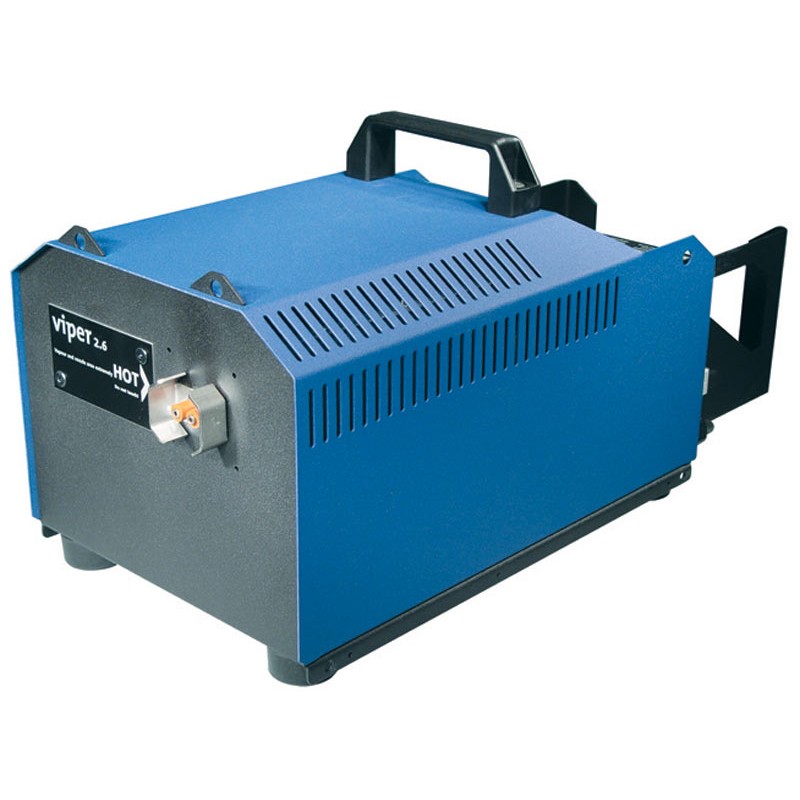

VIPER 2.6 Look Solutions 2.6kW Fogger

S2 ref: 004359

1,415.-
1,139.-
Incl. VAT
Delivery time request

Add to Wish List Compare this Product

very powerful fog generator
For professional use
in use within our company @ S2RENT

Description Specification Reviews (Trustpilot)

Description

The Viper 2.6 is a very powerful fog generator. It unites the current digital technology with proven technique and power. Very powerful output, simple handling and the possibility to connect an external fan are the main new features of this machine. This magnificent smoke machine is in use within our company @ S2RENT, a reliable and powerful machine. As you know, S2 stands for quality, delivers quality and so the VIPER 2.6 is QUALITY!

FEATURES:

DMX 512 as standard

The VIPER 2.6 can be controlled via DMX 512. The connection is done with 5pin-XLR-plugs. The DMX start address can be adjusted and saved via the control panel. The machine can also be controlled with analog (0 - 10 V) via a lighting desk or via XLR-remote (option). This connection is done with 3pin-XLR-plugs. A stand-alone-mode is also possible. The adjustments are done directly at the machine. A short press at the start button makes the machine run. Therefore a permanent pressing of the start button is unnecessary.

Internal timer

With the internal timer the fog time can be exactly adjusted in seconds, the wait time in minutes and the output in %.

Control panel

The control panel with LED-display, simple symbols allow for easy operation. It also protects the control buttons against dirt.

Finest adjustments of the output

Digital technology makes fine adjustment of the pump possible. In steps of 1% the output can be adjusted from 0 - 99%. Thus, any desired effect from a tiny fog-cloud to the thickest fog can be produced. This enables the VIPER 2.6 to be used in both small and large locations.

Connector for external fan

An external fan with max. 800 Watt can be connected to the VIPER 2.6. Once connected to the machine, the fan can also be adjusted via DMX. The machine then uses two following channels at the desk.

TECHNICAL INFORMATION:

Procedure: vaporizing fog generator
Power requirement: 2600 Watt
Voltage: 230 V / 50 Hz
Warm up time: approx. 7 min.
Fluid consumption: at max. output 240ml/min. and at continuous output 70 ml/min.
Fluid tank capacity: 5 Liter
Fog output: adjustable in 99 steps
Output projection: max. 15 m
Fogging time at max. outup approx. 40 sec. and at < 50% output: Continuous output
External fan: max. 800 Watt
Control: DMX 512, 0 – 10 V analog, Stand-alone-Mode, Radio remote (option)
Temperature control: Microprocessor controlled
Overheating protection: Heater block/Thermostat and Pump/Thermal switch
Dimensions (L x W x H): 52 x 23 x 25 cm
Weight without bottle: approx. 12 kg
