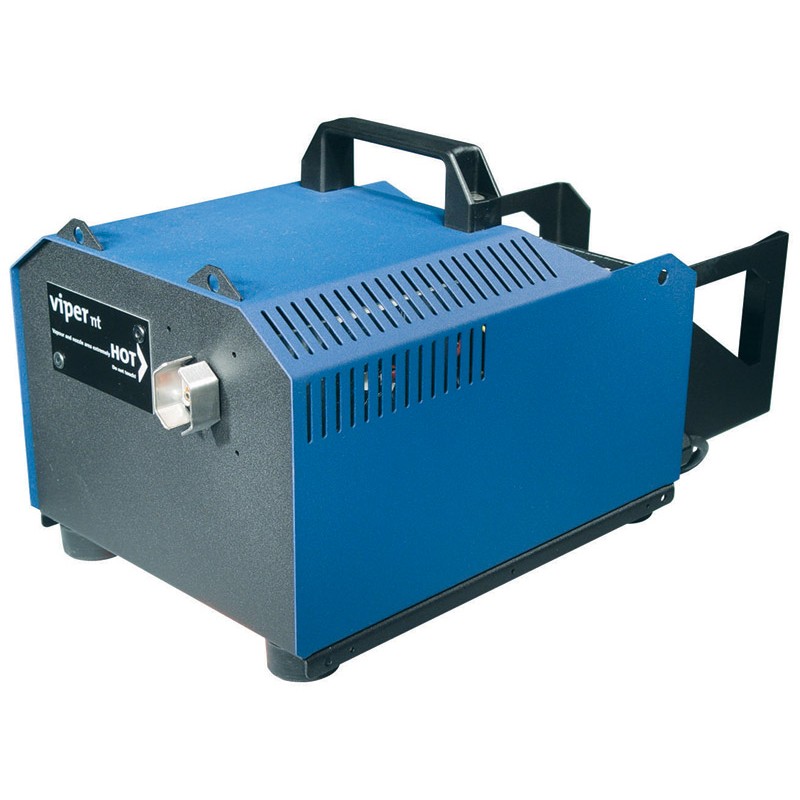

VIPER NT Look Solutions 1.3kW Fogger

Description

The VIPER NT unites the current digital technology with proven technique and power. Several features guarantee a simple operation – place and fog, reducing the amount of time needed to set up the machine.

FEATURES:

DMX 512 as standard
The VIPER NT can be controlled via DMX 512. The connection is done with 5pin-XLR-plugs. The DMX start address can be adjusted and saved via the control panel. The machine can also be controlled with analog (0 - 10 V) via a lighting desk or via XLR-reote (option). This connection is done with 3pin-XLR-plugs. A stand-alone-mode is also possible. The adjustments are done directly at the machine. A short press at the start button makes the machine run. Therefore a permanent pressing of the start button is unnecessary.

Internal timer
With the internal timer the fog time can be exactly adjusted in seconds, the wait time in minutes and the output in %.

Control panel
The control panel with LED-display, simple symbols allow for easy operation. It also protects the control buttons against dirt.

Finest adjustments of the output
Digital technology makes fine adjustment of the pump possible. In steps of 1% the output can be adjusted from 0 - 99%. Thus, any desired effect from a tiny fog-cloud to the thickest fog can be produced. This enables the viper nt to be used in both small and large locations.

TECHNICAL INFORMATION:

• Procedure: Vaporizing fog generator
• Power requirement: 1300 Watt
• Voltage: 230 V / 50 Hz  -  120 V / 60 Hz
• Warm up time: approx. 7 min.
• Fluid consumption: at max. output 120 ml/min. and at continuous output 35 ml/min.
• Fluid tank capacity: 5 Liter
• Fog output: adjustable in 99 steps
• Output projection: max. 15 m
• Fogging time: at max. output approx. 40 sec. and at < 50% output continuous output
• Control: DMX 512, 0 – 10 V analog, Stand-alone-Mode, Radio remote (Option))
• Temperature control: Microprocessor controlled
• Overheating protection: Heater block/Thermostat and Pump/Thermal switch
• Dimensions (L x W x H): 47 x 23 x 24 cm
• Weight without bottle: approx. 8,3 kg
